Panasonic Surface Signal Relay, 3V dc Coil, 2A, DPDT
- RS Stock No.:
- 815-4852
- Mfr. Part No.:
- TX2SA-LT-3V-TH
- Brand:
- Panasonic

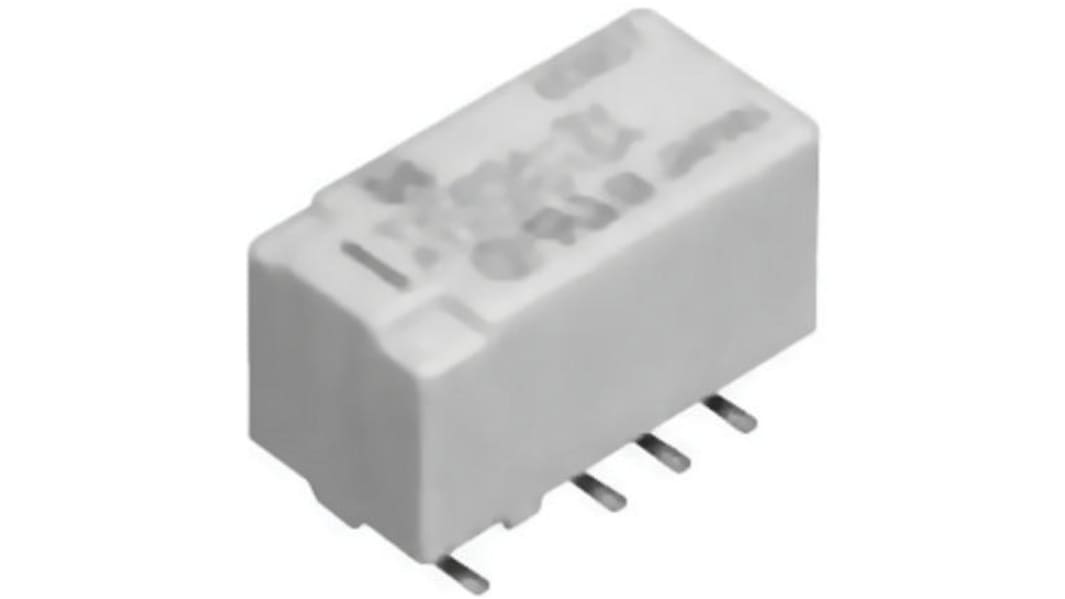

Image representative of range
Subtotal (1 unit)*
£3.22
(exc. VAT)
£3.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 32 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.22 |
*price indicative
- RS Stock No.:
- 815-4852
- Mfr. Part No.:
- TX2SA-LT-3V-TH
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 3V dc | |
| Product Type | Signal Relay | |
| Contact Configuration | DPDT | |
| Mount Type | Surface | |
| Switching Current | 2A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 220V dc | |
| Series | TX2SA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 15mm | |
| Height | 8.2mm | |
| Standards/Approvals | RoHS | |
| Terminal Type | PCB Terminal | |
| Width | 7.4mm | |
| Contact Material | Gold Plated | |
| Coil Resistance | 64.3Ω | |
| Coil Power | 140mW | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 3V dc | ||
Product Type Signal Relay | ||
Contact Configuration DPDT | ||
Mount Type Surface | ||
Switching Current 2A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 220V dc | ||
Series TX2SA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 15mm | ||
Height 8.2mm | ||
Standards/Approvals RoHS | ||
Terminal Type PCB Terminal | ||
Width 7.4mm | ||
Contact Material Gold Plated | ||
Coil Resistance 64.3Ω | ||
Coil Power 140mW | ||
- COO (Country of Origin):
- JP
TX2 Series, Latching
These surface mount PCB relays have a 2000 Vac breakdown voltage and an outstanding surge, vibration and shock resistance. Typical applications for these surface mount PCB relays are communications, measurement, security, home appliances, automotive and medical equipment
High sensitivity of 200mW
High contact capacity, 2 A 30 Vdc
Approvals
UL recognised,:CSA,:BSI
