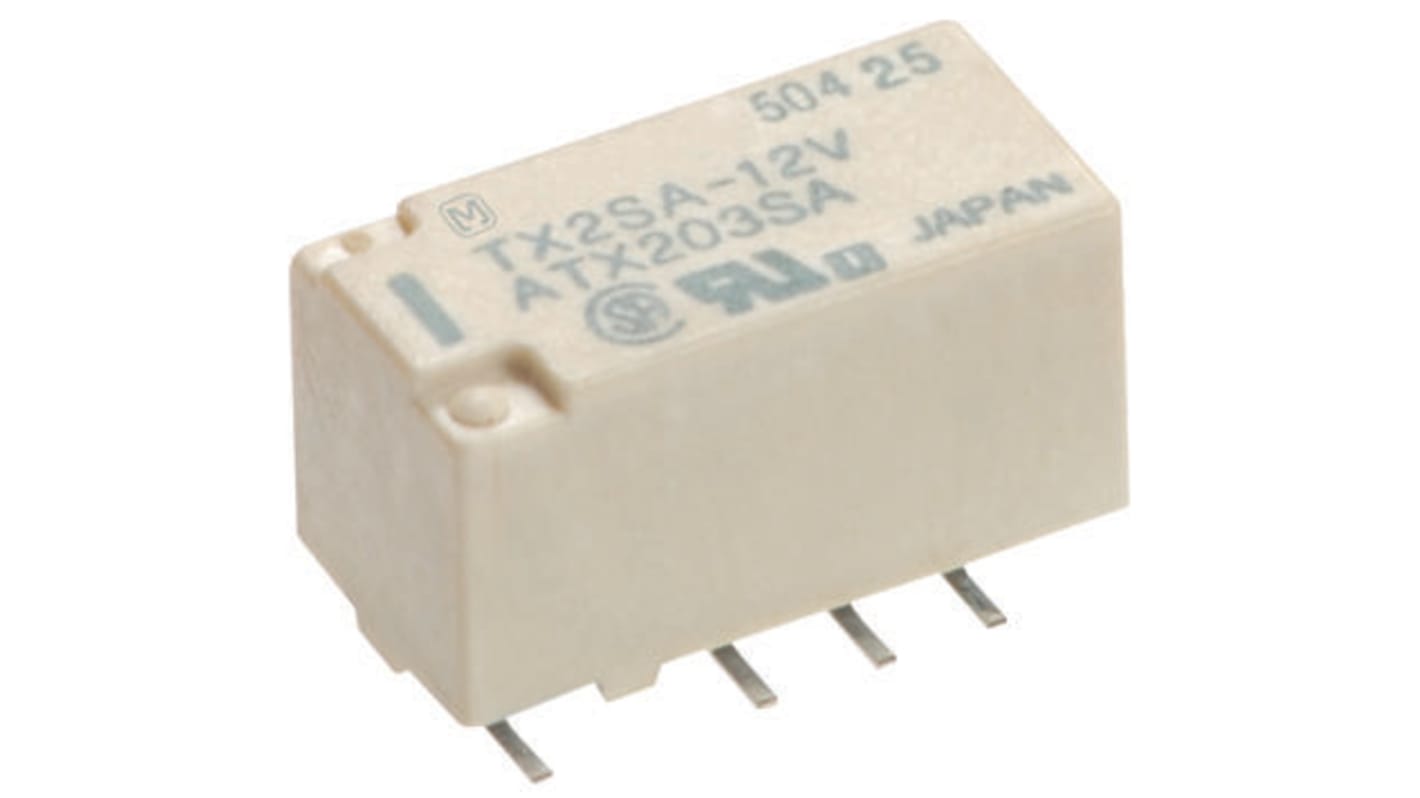

    Panasonic Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

    View all Signal Relays
    Bulk discount available

    Subtotal (1 unit)*

    £2.61

    (exc. VAT)

    £3.13

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Temporarily out of stock
    • 40 units(s) shipping from 29 August 2025
    • Plus 40 unit(s) shipping from 24 October 2025
    • Plus 120 unit(s) shipping from 15 November 2025
    Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
    Units
    Per unit
    1 - 24£2.61
    25 - 49£2.33
    50 - 99£2.04
    100 - 249£1.77
    250 +£1.71

    *price indicative

    RS Stock No.:
    699-6348
    Mfr. Part No.:
    TX2SA-12V
    Brand:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    12V dc

    Contact Configuration

    DPDT

    Mounting Type

    Surface Mount

    Maximum Switching Current DC

    2 A

    Maximum Switching Voltage DC

    220V

    Series

    G6K

    Maximum Switching Power DC

    60 W

    Length

    15mm

    Latching

    No

    Depth

    7.4mm

    Height

    8.2mm

    Dimensions

    15 x 8.2 x 7.4mm

    Terminal Type

    Surface Mount

    Number of Poles

    2

    Switching Current

    2A

    Application

    Automotive

    Features

    Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing,

    Operating Temperature Range

    -40 → +85°C

    Coil Resistance

    1020Ω

    Minimum Operating Temperature

    -40°C

    Isolation Coil To Contact

    750V

    Maximum Operating Temperature

    +85°C

    Life

    100000 (Electrical) cycles, 100000000 (Mechanical) cycles

    Coil Power

    140mW

    Contact Material

    Gold Plated
