RS PRO Shock Absorber, 73 mm Body Length, 15 mm Body Length, Thread Thread Size
- RS Stock No.:
- 235-1089
- Brand:
- RS PRO
Subtotal (1 unit)*
£61.27
(exc. VAT)
£73.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £61.27 |
*price indicative
- RS Stock No.:
- 235-1089
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Shock Absorber | |
| Thread Size | Thread | |
| Length | 73mm | |
| Stroke Length | 15mm | |
| Thread Standard | No | |
| Series | AC | |
| Maximum Energy Capacity Per Hour | 38000Nm | |
| Maximum Energy Capacity Per Cycle | 59Nm | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Shock Absorber | ||
Thread Size Thread | ||
Length 73mm | ||
Stroke Length 15mm | ||
Thread Standard No | ||
Series AC | ||
Maximum Energy Capacity Per Hour 38000Nm | ||
Maximum Energy Capacity Per Cycle 59Nm | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals No | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- CN

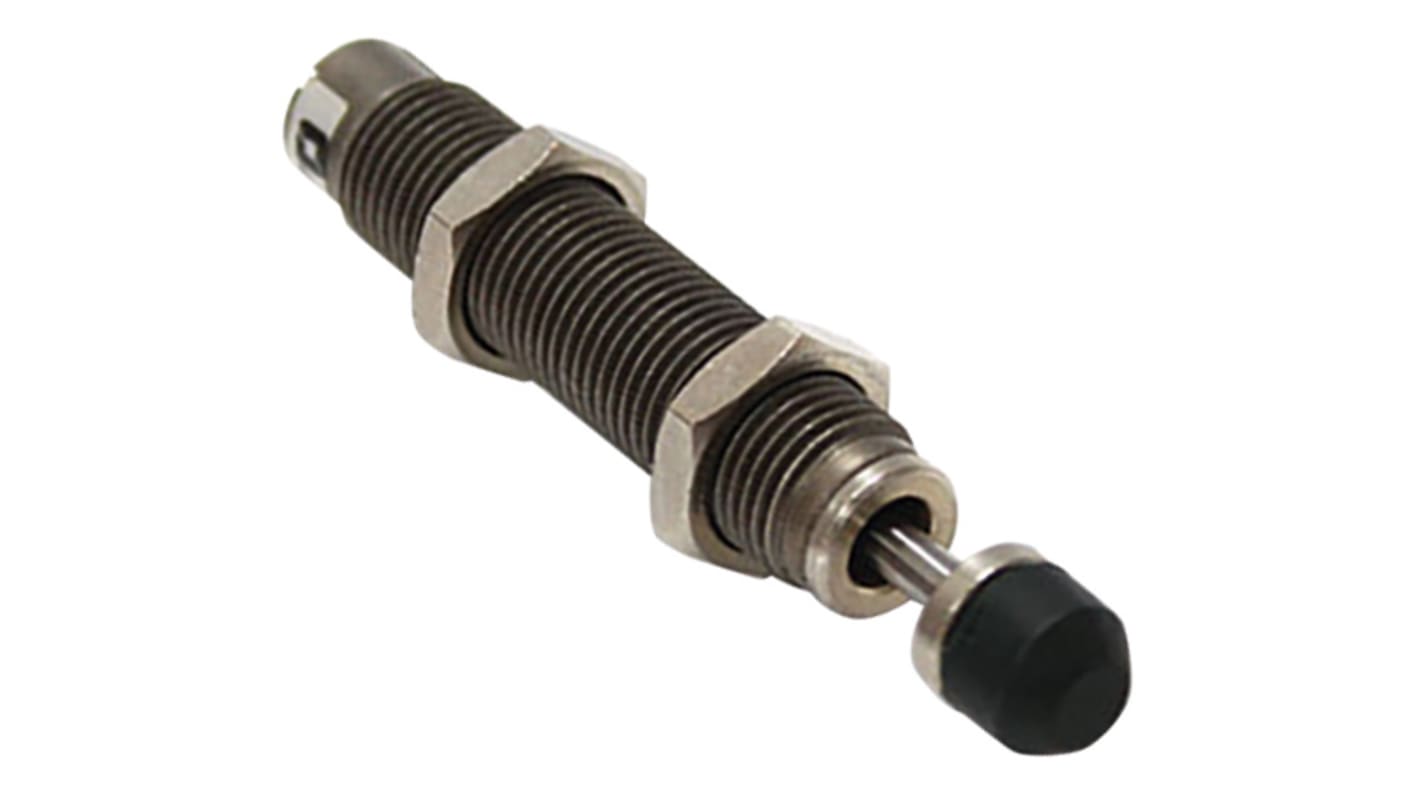

RS PRO Shock Absorber
This range of RS PRO shock absorbers are tried and tested to the highest standards, made from high quality material and are suitable for many applications. The shock absorbers are for pneumatic cylinders, with 20 mm thread and 15 mm stroke length without cap. Its outer body is AISI 1215 oxidized black and has a hard chromium plated piston rod.
Features and Benefits
Piston rod hard chromium plated
Applications
Shock absorbers are used in a many applications where energy absorption is needed. Common applications include
Suspension systems
Automation control
Robots
Hydraulic and pneumatic cylinders
Vibration control
Dispensing and vending machines
Pumps and motors
Linear actuators
