ACE Shock Absorber, MA4550EUM, 120 mm Body Length, 195mm Body Length, 25 mm Body Length, M45 x 1.5 Thread Size

Get a bulk buy discount

Add 5 more to save £97.70

View bulk pricing options

Subtotal (1 unit)*

£630.35

(exc. VAT)

£756.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 12 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Saving
1 - 4£630.35-
5 - 9£610.81£97.70
10 +£591.27£390.80

*price indicative

RS Stock No.:
366-3468
Mfr. Part No.:
MA4550EUM
Brand:
ACE
Find similar products by selecting one or more attributes.
Select all

Brand

ACE

Thread Size

M45 x 1.5

Product Type

Shock Absorber

Stroke Length

25mm

Overall Length

195mm

Length

120mm

Thread Standard

UNF

Series

MA

Maximum Energy Capacity Per Hour

248000Nm

Maximum Energy Capacity Per Cycle

780Nm

Minimum Operating Temperature

-12°C

Standards/Approvals

No

Maximum Operating Temperature

70°C

Maximum Return Force

145N

RoHS Status: Exempt

COO (Country of Origin):
US

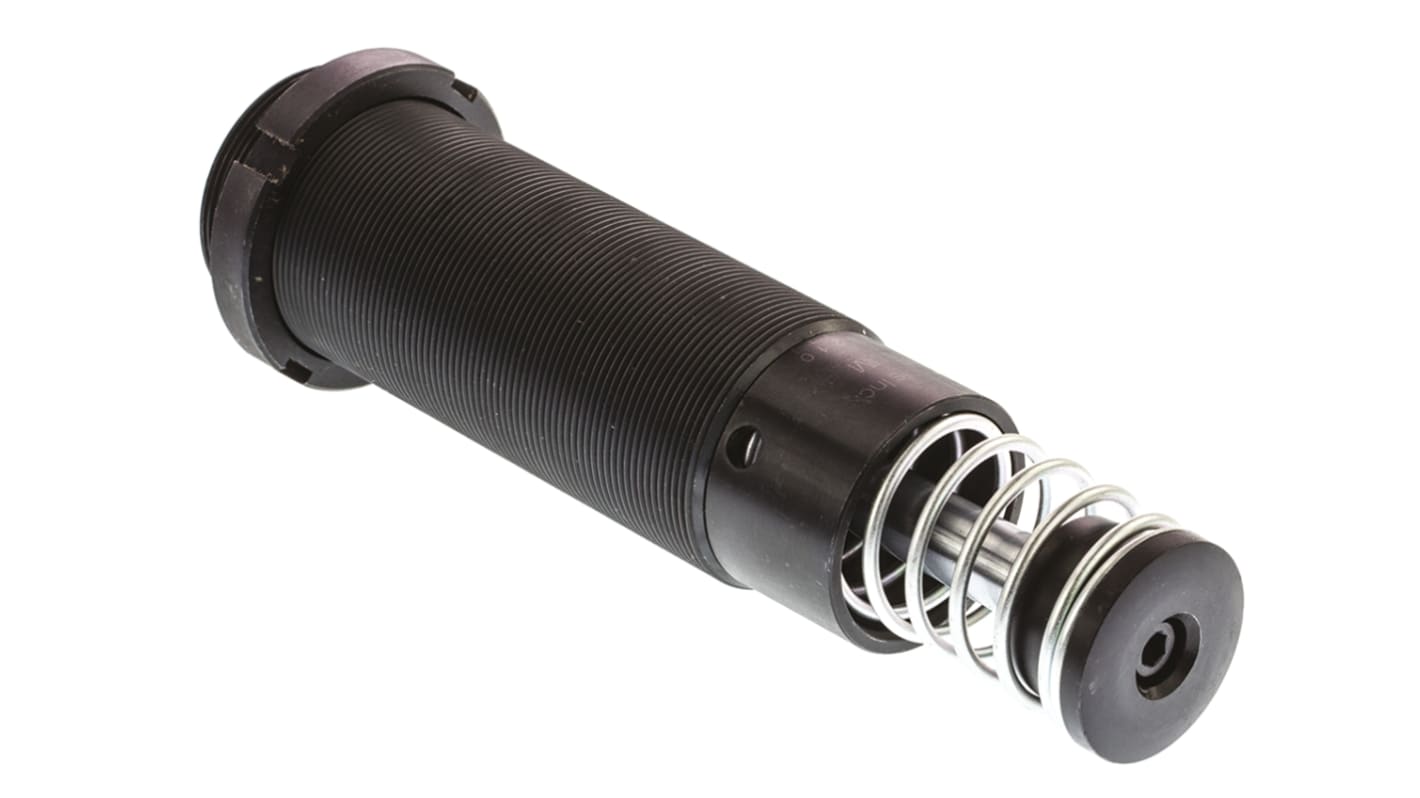

Shock Absorber


New generation of industrial shock absorbers

50% increased energy absorption capacity

Front and rear adjusters

Extremely long operating life

Fully threaded steel outer body with Weartec - plus (harsh environment) finish

Wide effective weight range - 9 to 15000kg

Integrated positive stop and hardened main bearing

ACE Magnum Adjustable


Adjustable shock absorbers offer flexibility in application design and selection procedure. With the widest range of effective weight, one model can cover many applications.
