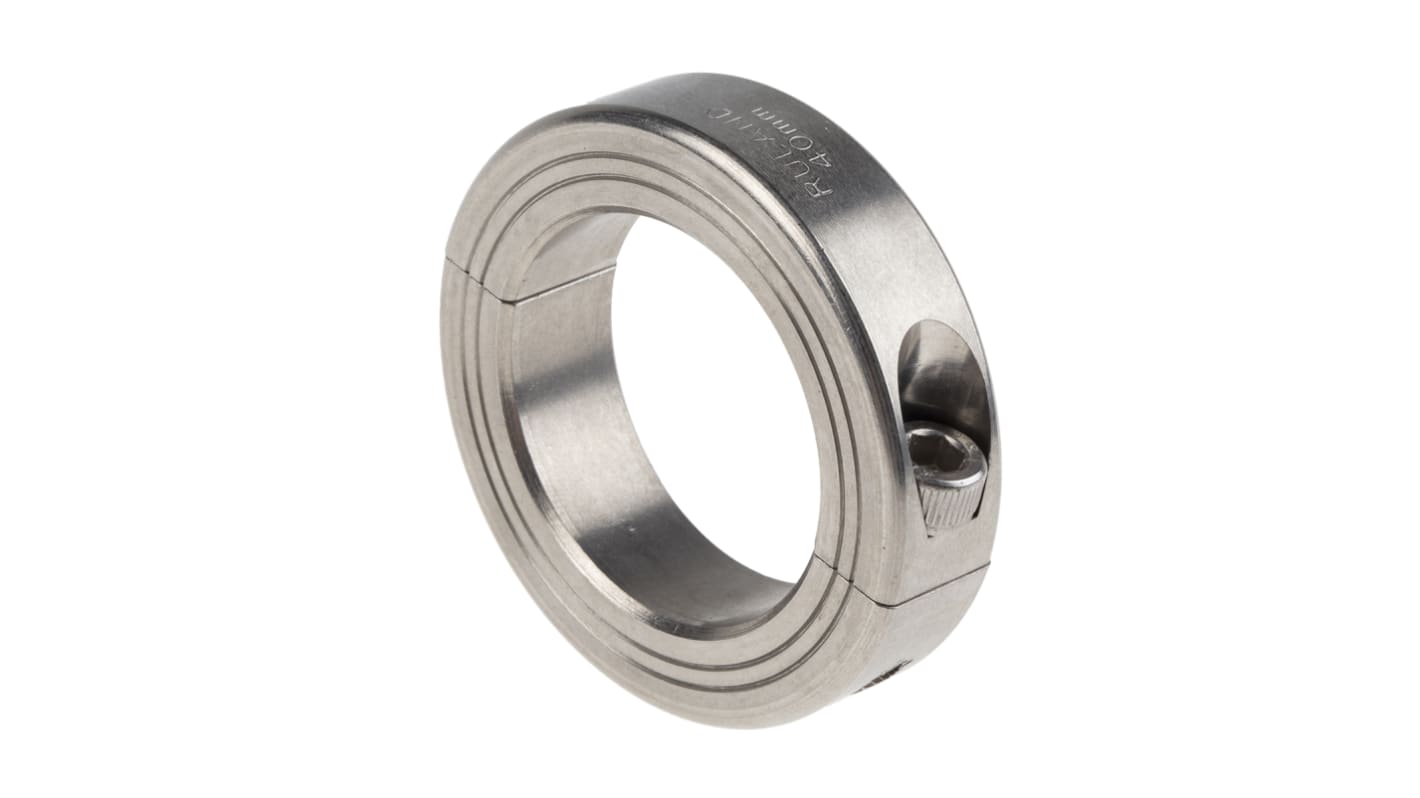

Ruland Shaft Collar, Two Piece, Clamp Screw, Bore 40mm, OD 60mm, W 15mm, Stainless Steel
- RS Stock No.:
- 174-6784
- Mfr. Part No.:
- MSP-40-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£43.80
(exc. VAT)
£52.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 11 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £43.80 |
*price indicative
- RS Stock No.:
- 174-6784
- Mfr. Part No.:
- MSP-40-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 40mm | |
One/Two Piece | Two Piece | |
Material | Stainless Steel | |
Single/Double Wide | Double | |
Outside Diameter | 60mm | |
Fastening | Clamp Screw | |
Width | 15mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 40mm | ||
One/Two Piece Two Piece | ||
Material Stainless Steel | ||
Single/Double Wide Double | ||
Outside Diameter 60mm | ||
Fastening Clamp Screw | ||
Width 15mm | ||
- COO (Country of Origin):
- US
Ruland Shaft Collar One-piece Clamp Screw
The Ruland two-piece shaft collar has dimensions of 40mm bore, 60mm OD and 15mm width. It is made from 303 stainless steel with a bright finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M6x18 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
• REACH certification
