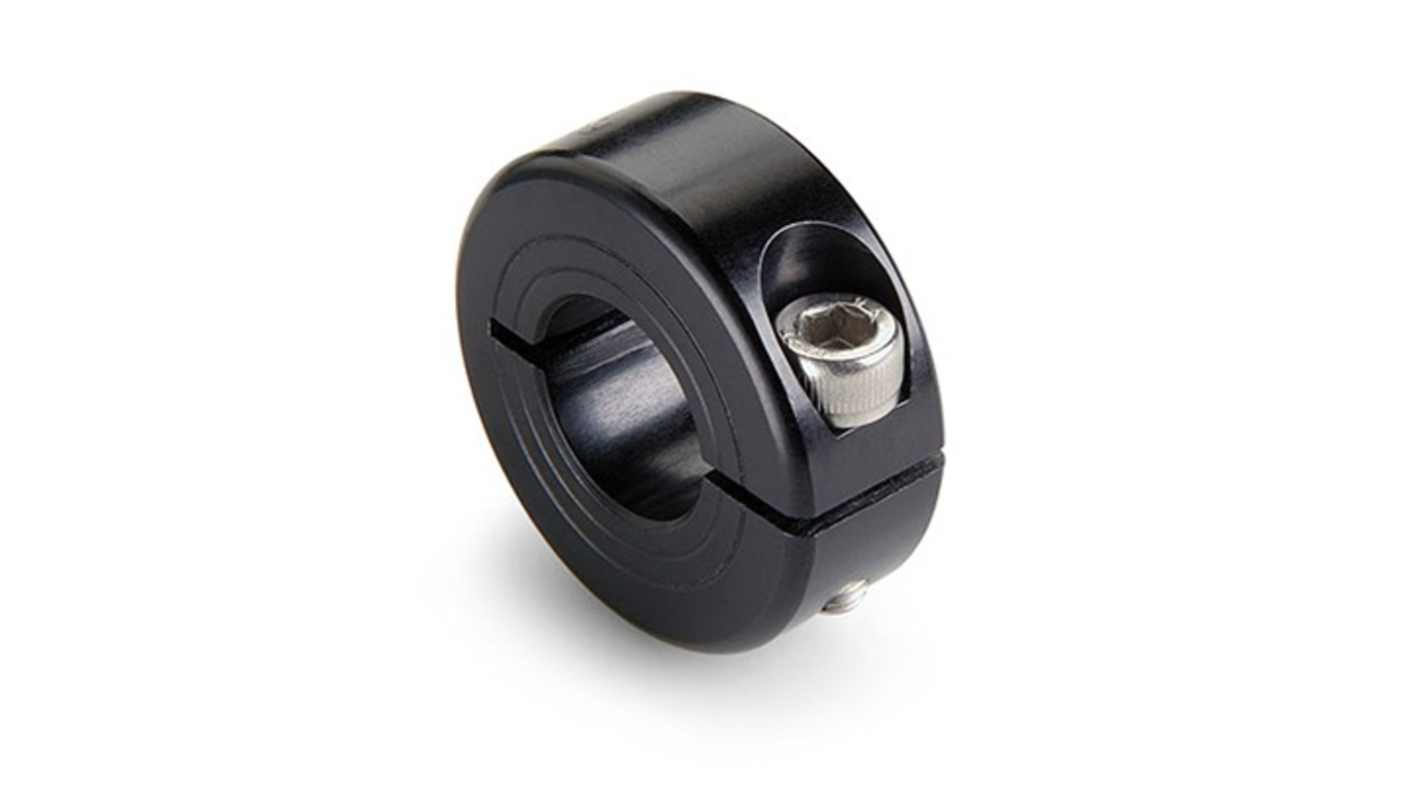

Ruland Shaft Collar, One Piece, Clamp, OD 60 mm OD, W 15 mm, Aluminium
- RS Stock No.:
- 615-520
- Mfr. Part No.:
- MCL-38-AN
- Brand:
- Ruland
Subtotal (1 unit)*
£43.48
(exc. VAT)
£52.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.48 |
*price indicative
- RS Stock No.:
- 615-520
- Mfr. Part No.:
- MCL-38-AN
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 38 mm | |
| One/Two Piece | One Piece | |
| Material | Aluminium | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 60 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Anodised | |
| Standards/Approvals | RoHs and Reach | |
| Series | MCL | |
| Bore Type | Clamp Style | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 38 mm | ||
One/Two Piece One Piece | ||
Material Aluminium | ||
Single/Double Wide Single Wide | ||
Outside Diameter 60 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Anodised | ||
Standards/Approvals RoHs and Reach | ||
Series MCL | ||
Bore Type Clamp Style | ||
- COO (Country of Origin):
- US
The Ruland Shaft collar has a clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment benefit from the tightly controlled face to bore perpendicularity. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.
Utilises premium materials for enhanced durability
Designed to reduce friction and increase operational efficiency
Compact form factor allows for flexible integration into tight spaces
Resistant to wear and tear ensuring longevity in high stress applications
Suitable for various mechanical systems enabling broad application use
Engineered for precision to enhance overall system performance
