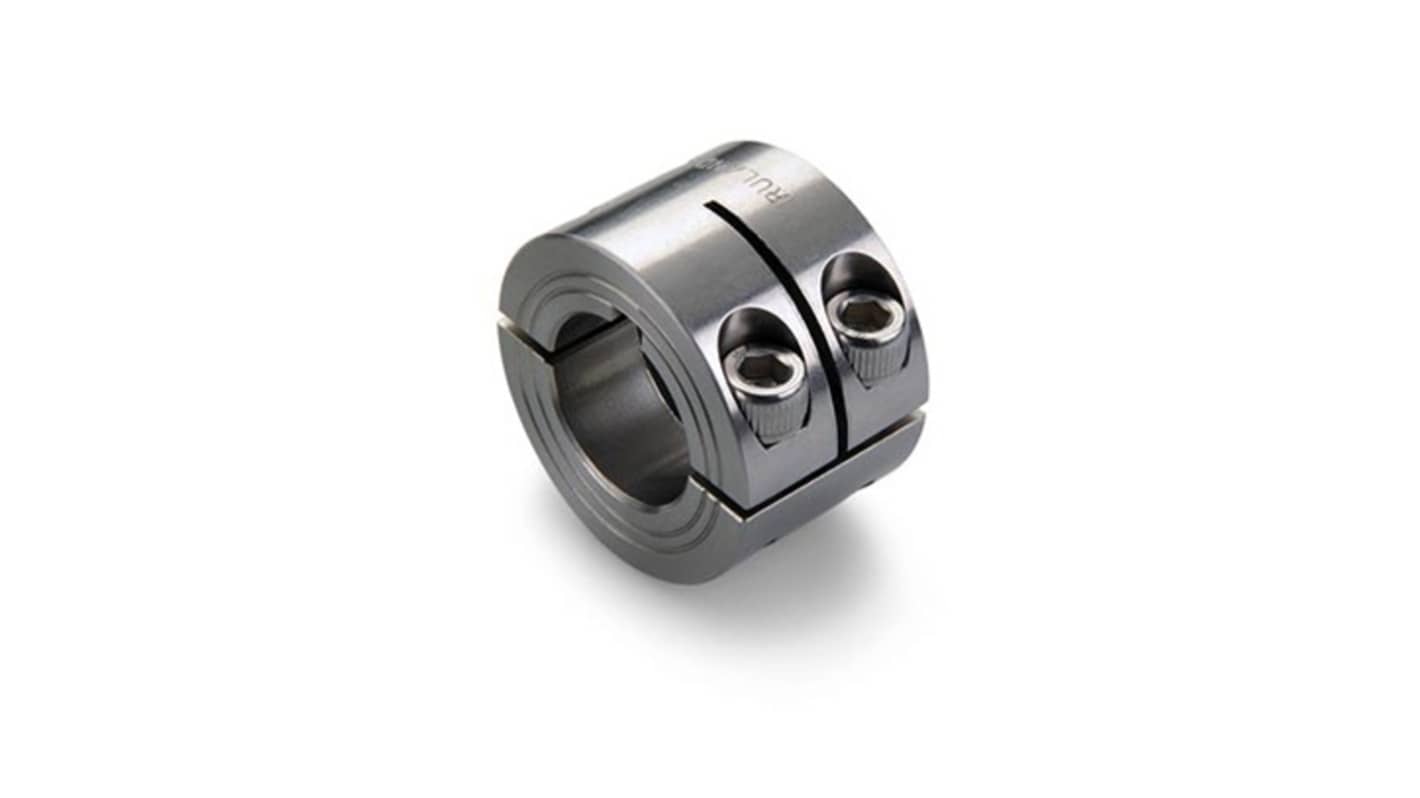

Ruland Shaft Collar, One Piece, Clamp, OD 45 mm OD, W 31.6 mm, 303 Stainless Steel
- RS Stock No.:
- 615-251
- Mfr. Part No.:
- MWSPK-25-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£214.91
(exc. VAT)
£257.89
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £214.91 |
*price indicative
- RS Stock No.:
- 615-251
- Mfr. Part No.:
- MWSPK-25-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 25 mm | |
| One/Two Piece | One Piece | |
| Material | 303 Stainless Steel | |
| Single/Double Wide | Double Wide | |
| Outside Diameter | 45 mm | |
| Fastening | Clamp | |
| Width | 31.6 mm | |
| Finish | Bright, Non-Plated | |
| Series | MWSPK | |
| Standards/Approvals | RoHS3, DIN 912 12.9, REACH | |
| Bore Type | Round | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 25 mm | ||
One/Two Piece One Piece | ||
Material 303 Stainless Steel | ||
Single/Double Wide Double Wide | ||
Outside Diameter 45 mm | ||
Fastening Clamp | ||
Width 31.6 mm | ||
Finish Bright, Non-Plated | ||
Series MWSPK | ||
Standards/Approvals RoHS3, DIN 912 12.9, REACH | ||
Bore Type Round | ||
The Ruland Shaft collar is commonly used for guiding, spacing, stopping, mounting, and component alignment. It is engineered with tightly controlled face-to-bore perpendicularity, which is critical for proper alignment when used as a load-bearing face, mechanical stop, or for mounting components such as gears or bearings. It is manufactured using proprietary processes to ensure a superior fit, high-quality finish, and strong holding power.
Stamped name and bore size for easy identification
Offers 25% higher axial holding power compared to a round bore of the same size
Functions as a short rigid coupling in space limited applications
Includes forged screws that exceed DIN 912 12.9 standards
Provides maximum holding power for secure performance
