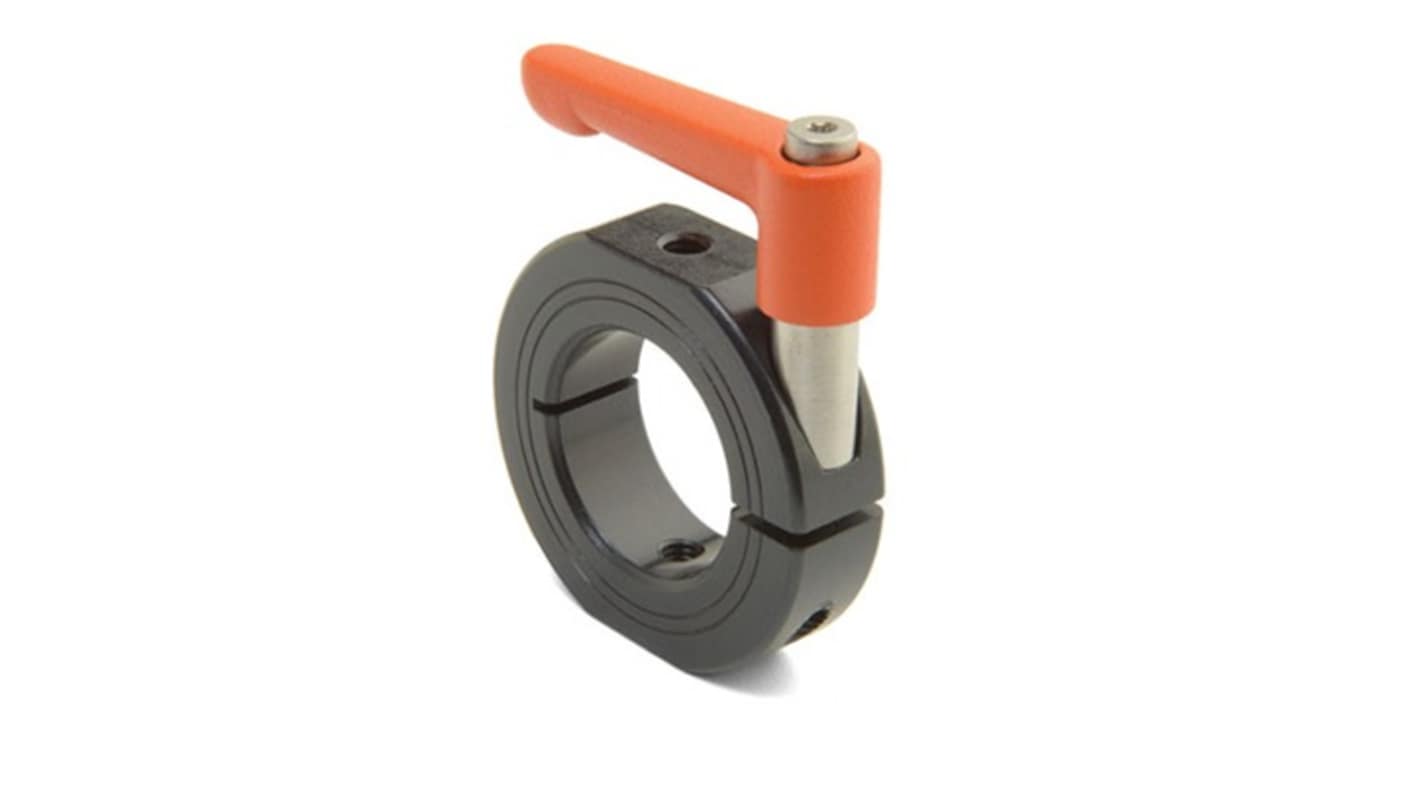

Ruland Shaft Collar, One Piece, Clamp, OD 57 mm OD, W 15 mm, Steel
- RS Stock No.:
- 614-534
- Mfr. Part No.:
- LVO-OF-MCL-35-F
- Brand:
- Ruland
Subtotal (1 unit)*
£49.19
(exc. VAT)
£59.03
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £49.19 |
*price indicative
- RS Stock No.:
- 614-534
- Mfr. Part No.:
- LVO-OF-MCL-35-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 35 mm | |
| One/Two Piece | One Piece | |
| Material | Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 57 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Black Oxide | |
| Series | LVO-OF-MCL | |
| Bore Type | Clamping Lever | |
| Standards/Approvals | RoHs and Reach | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 35 mm | ||
One/Two Piece One Piece | ||
Material Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 57 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Black Oxide | ||
Series LVO-OF-MCL | ||
Bore Type Clamping Lever | ||
Standards/Approvals RoHs and Reach | ||
The Ruland Mountable quick clamping shaft collar with clamping lever has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. The threaded stud on the lever is used in place of standard collar hardware. When combined, the two parts create a shaft collar that requires no tools to install, remove, or reposition.
Constructed to provide optimal load bearing capabilities
Offers precise alignment to enhance operational efficiency
Lightweight yet durable making it ideal for various applications
Reduces wear and tear leading to lower maintenance costs
Compatible with a range of components for flexible integration
