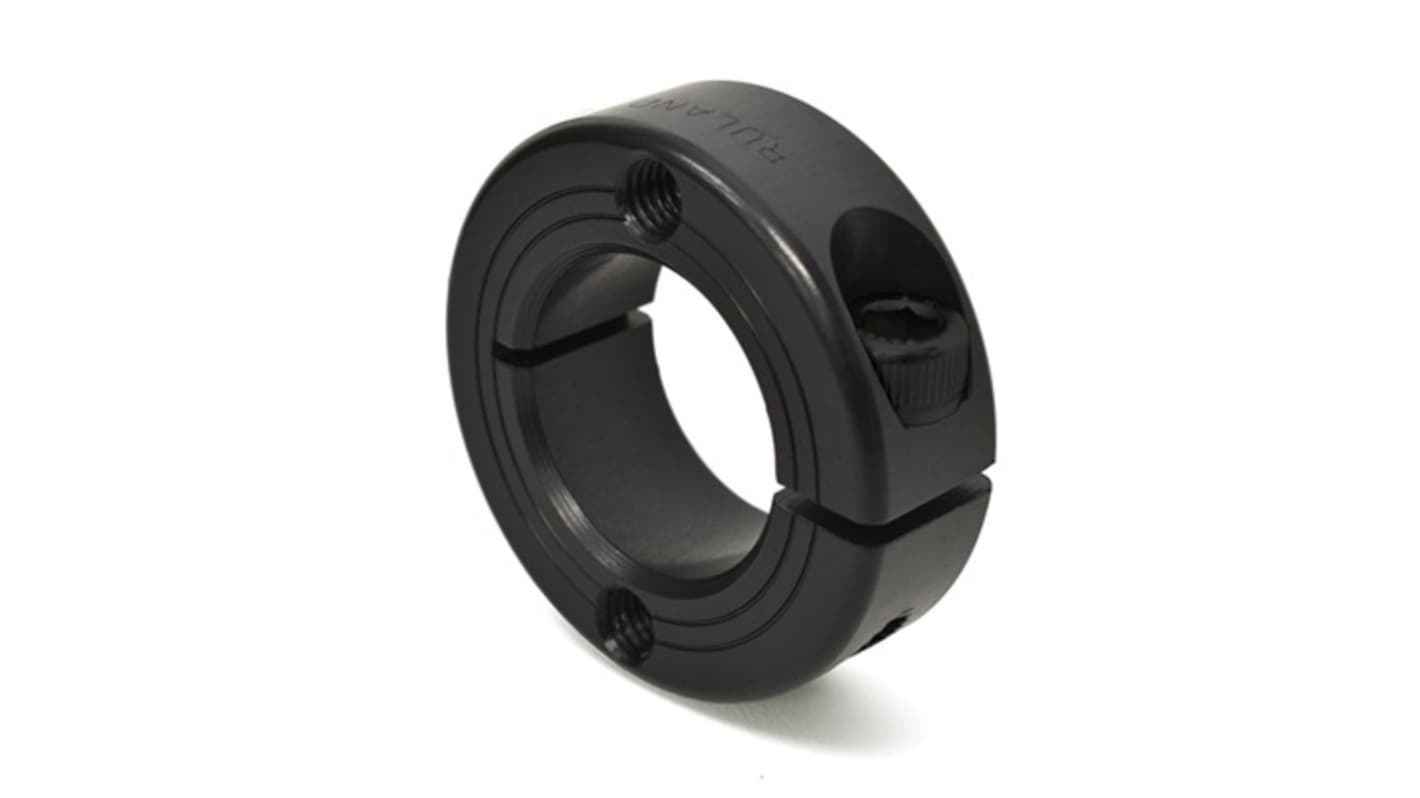

Ruland Collar, One Piece, Clamp Screw, Bore 36mm, OD 57mm, W 15mm, 1215 Lead-Free Carbon Steel
- RS Stock No.:
- 605-572
- Mfr. Part No.:
- FHT-MCL-36-F
- Brand:
- Ruland
Subtotal (1 unit)*
£34.80
(exc. VAT)
£41.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.80 |
*price indicative
- RS Stock No.:
- 605-572
- Mfr. Part No.:
- FHT-MCL-36-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Shaft Diameter | 36mm | |
| One/Two Piece | One Piece | |
| Material | 1215 Lead-Free Carbon Steel | |
| Single/Double Wide | Single | |
| Outside Diameter | 57mm | |
| Fastening | Clamp Screw | |
| Width | 15mm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Shaft Diameter 36mm | ||
One/Two Piece One Piece | ||
Material 1215 Lead-Free Carbon Steel | ||
Single/Double Wide Single | ||
Outside Diameter 57mm | ||
Fastening Clamp Screw | ||
Width 15mm | ||
- COO (Country of Origin):
- US
Recom 2W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R2S & R2D Series
Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Note
Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).
MTBF to MIL-HDBK 217F (+25°C).
Standards
UL60950-1, EN-60950-1
Approvals
CB, CSA, UL recognised component
The Ruland One piece shaft collar has tapped holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Tapped holes allow for a secure connection between the shaft collar and mated component. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.
RoHS3 and REACH compliant
Forged screws test beyond DIN 912 12.9 standards
Machined from solid bar stock to a fine burr free finish
Forged screws test beyond DIN 912 12.9 standards
Machined from solid bar stock to a fine burr free finish
