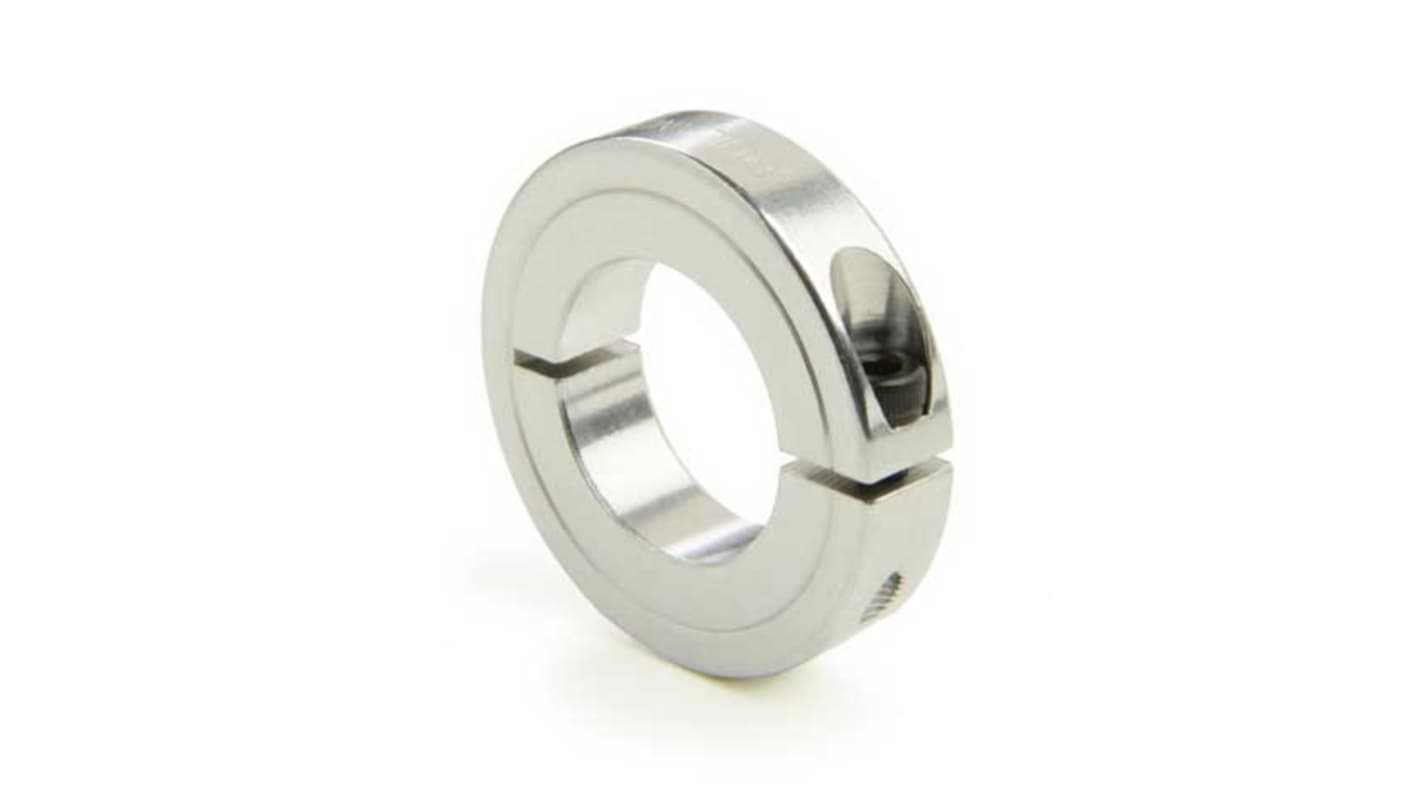

Ruland Shaft Collar, One Piece, Clamp, OD 25 mm OD, W 6mm, Aluminium
- RS Stock No.:
- 592-482
- Mfr. Part No.:
- ENCL25-12MM-A
- Brand:
- Ruland
Subtotal (1 unit)*
£7.85
(exc. VAT)
£9.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.85 |
*price indicative
- RS Stock No.:
- 592-482
- Mfr. Part No.:
- ENCL25-12MM-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Diameter | 12mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | One Piece | |
| Material | Aluminium | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 25mm | |
| Fastening | Clamp | |
| Width | 6mm | |
| Finish | Bright, Non-Plated | |
| Standards/Approvals | DIN 91 1.9, RoHs and Reach | |
| Bore Type | Clamp Style | |
| Series | ENCL25 | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Diameter 12mm | ||
Product Type Shaft Collar | ||
One/Two Piece One Piece | ||
Material Aluminium | ||
Single/Double Wide Single Wide | ||
Outside Diameter 25mm | ||
Fastening Clamp | ||
Width 6mm | ||
Finish Bright, Non-Plated | ||
Standards/Approvals DIN 91 1.9, RoHs and Reach | ||
Bore Type Clamp Style | ||
Series ENCL25 | ||
- COO (Country of Origin):
- US
The Ruland One Piece Thin Line Shaft Collar is designed for precision and efficiency in a compact form. Constructed from high grade 2024 aluminium, it boasts a narrow profile that facilitates installation in confined spaces while significantly reducing overall weight. The collar's clamp style prevents marring of the shaft, allowing for easy adjustments and removability without compromising performance. Ideal for applications necessitating guiding, spacing, or component alignment, this product ensures exceptional perpendicularity critical for load bearing scenarios.
Lightweight design enables functionality in tight spaces
Clamp style maintains the integrity of the shaft surface
Allows for indefinite adjustability enhancing usability
Tightly controlled perpendicularity critical for alignment
High durability due to the use of solid bar stock
Meets RoHS3 and REACH compliance standards
Forged screws exceed industry standards for holding power
Manufactured in a facility adhering to strict quality controls
Suitable for a wide temperature range for versatility
Easy installation process ensures user friendliness
