Schneider Electric 480 V 1.13 kW Servo Motor, 8000 rpm, 7.6 Nm Max Output Torque, 11mm Shaft Diameter
- RS Stock No.:
- 664-441
- Mfr. Part No.:
- SH30702P02A2000
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,426.41
(exc. VAT)
£1,711.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,426.41 |
*price indicative
- RS Stock No.:
- 664-441
- Mfr. Part No.:
- SH30702P02A2000
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Output Torque | 7.6 Nm | |
| Supply Voltage | 480 V | |
| Output Speed | 8000 rpm | |
| Power Rating | 1.13 kW | |
| Stall Torque | 2.04Nm | |
| Shaft Diameter | 11mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 7.6 Nm | ||
Supply Voltage 480 V | ||
Output Speed 8000 rpm | ||
Power Rating 1.13 kW | ||
Stall Torque 2.04Nm | ||
Shaft Diameter 11mm | ||
- COO (Country of Origin):
- DE

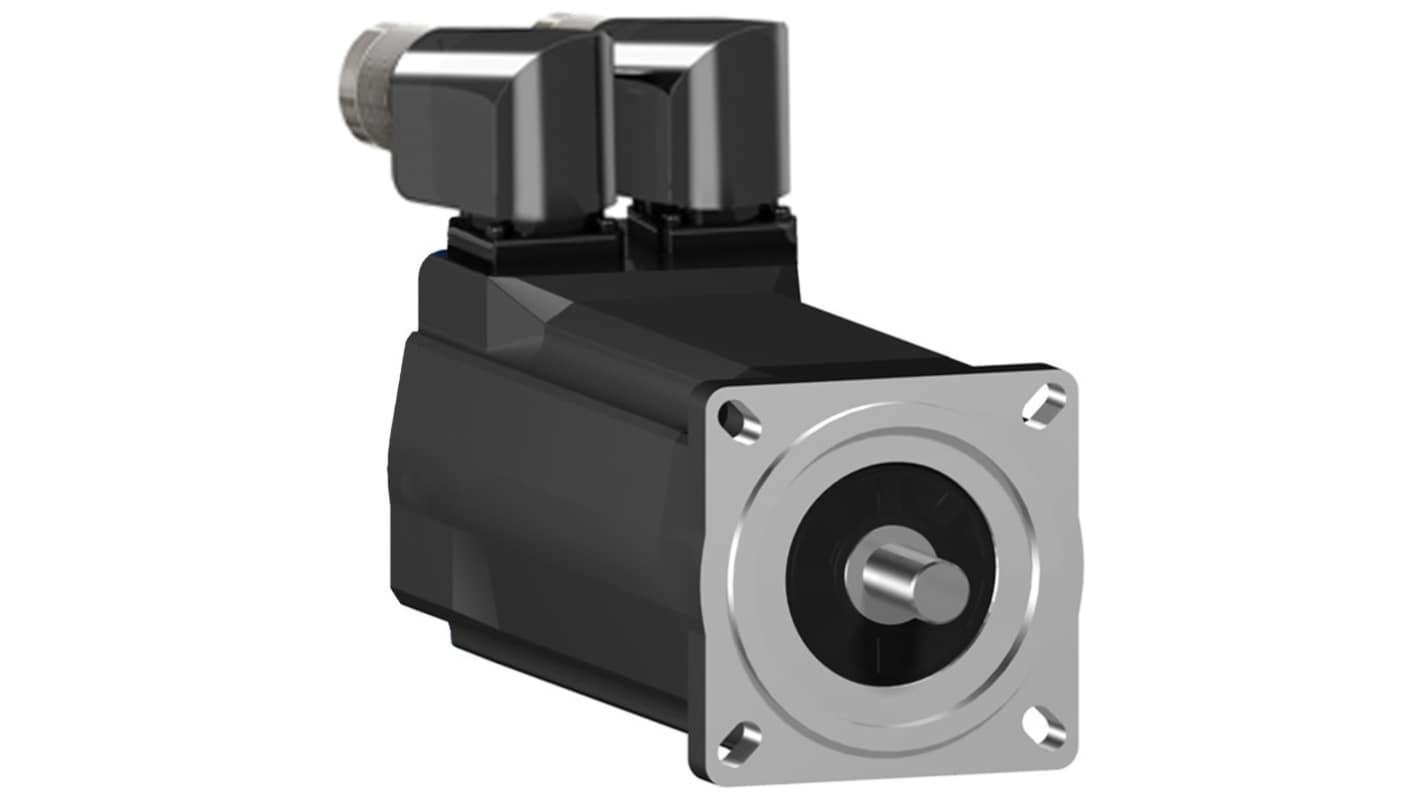

The Schneider Electric 3 pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 2.9A and a continuous power of 1130W. It is furnished with rotatable right angled connectors for electrical connection.
IP54 and IP65 rated
Supports 70mm international standard flange mount
Supports natural convection cooling system
Supports 70mm international standard flange mount
Supports natural convection cooling system
