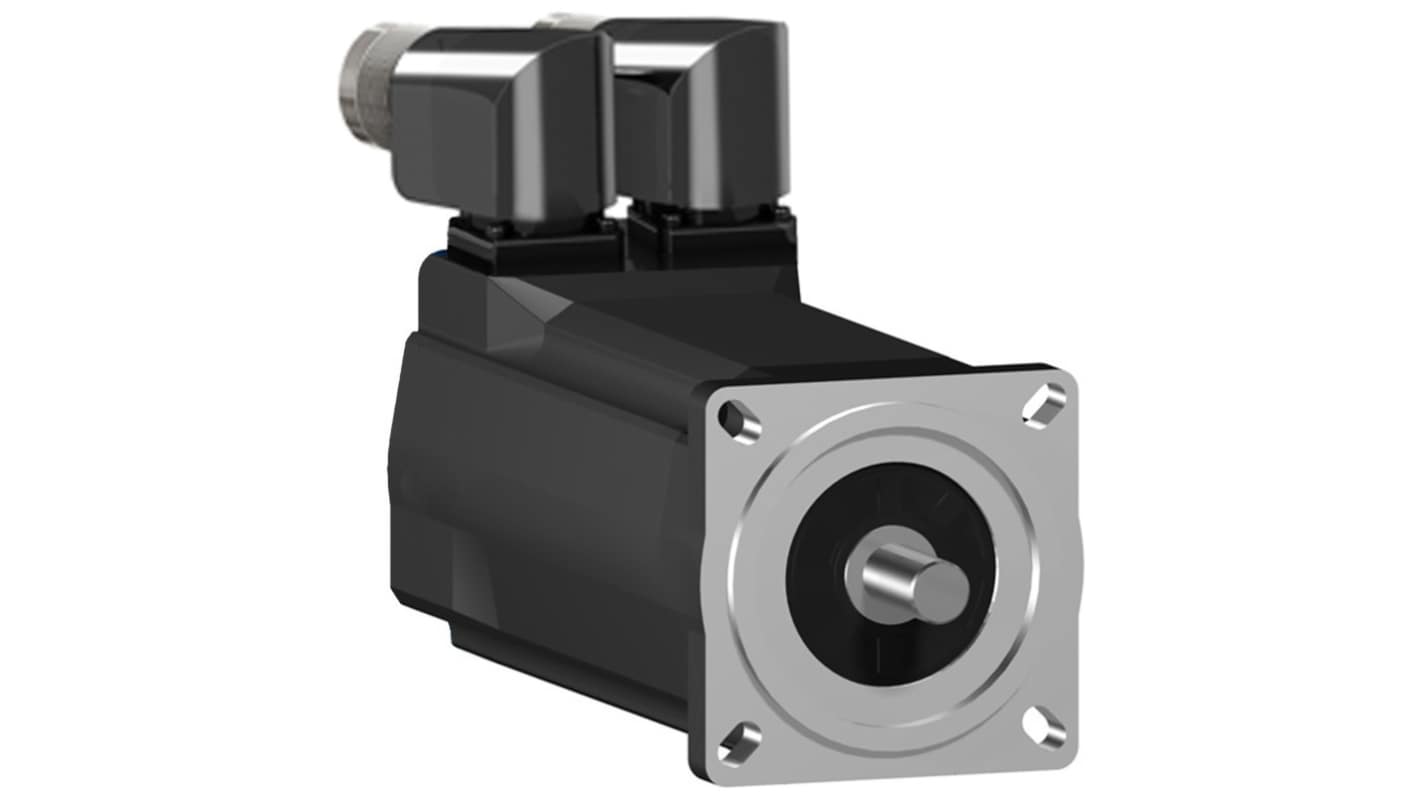

Schneider Electric 115 → 480 V 1.13 kW Servo Motor, 8000 rpm, 7.6 Nm Max Output Torque, 11mm Shaft Diameter

The Schneider Electric Servo motor is engineered for high-performance applications requiring precision control and reliability. Designed to seamlessly integrate with the PacDrive 3 range, this robust servo motor delivers exceptional torque and efficiency, operating at voltages from 115V to 480V. Its remarkable maximum mechanical speed of 8000 rpm combined with a continuous stall torque of 2.04 N.m ensures optimal performance across varied operational demands. The SH3 070 features advanced feedback capabilities through its absolute single turn SinCos Hiperface encoder, ensuring precise positioning and speed regulation. Built to withstand challenging environments, its IP54/IP65 ratings guarantee protection against dust and water ingress, making it an ideal solution for diverse industrial settings.

Delivers a continuous power of 1130 W for efficient operation
Maximum current handling capability of 11.8 A ensures robust performance
Shaft design features a smooth shaft diameter of 11 mm for enhanced compatibility
Rated for three-phase operation, ensuring consistent power supply in demanding settings
Encoder with 128 periods resolution allows for precise speed feedback, ensuring accuracy
Natural convection cooling type enhances reliability in various applications
Supports a maximum axial force of 80 N, increasing operational versatility
Universally compatible mounting support simplifies integration processes
Compliant with IEC standards for added assurance of quality and dependability
Constructed with a focus on sustainability, including recycled packaging materials
