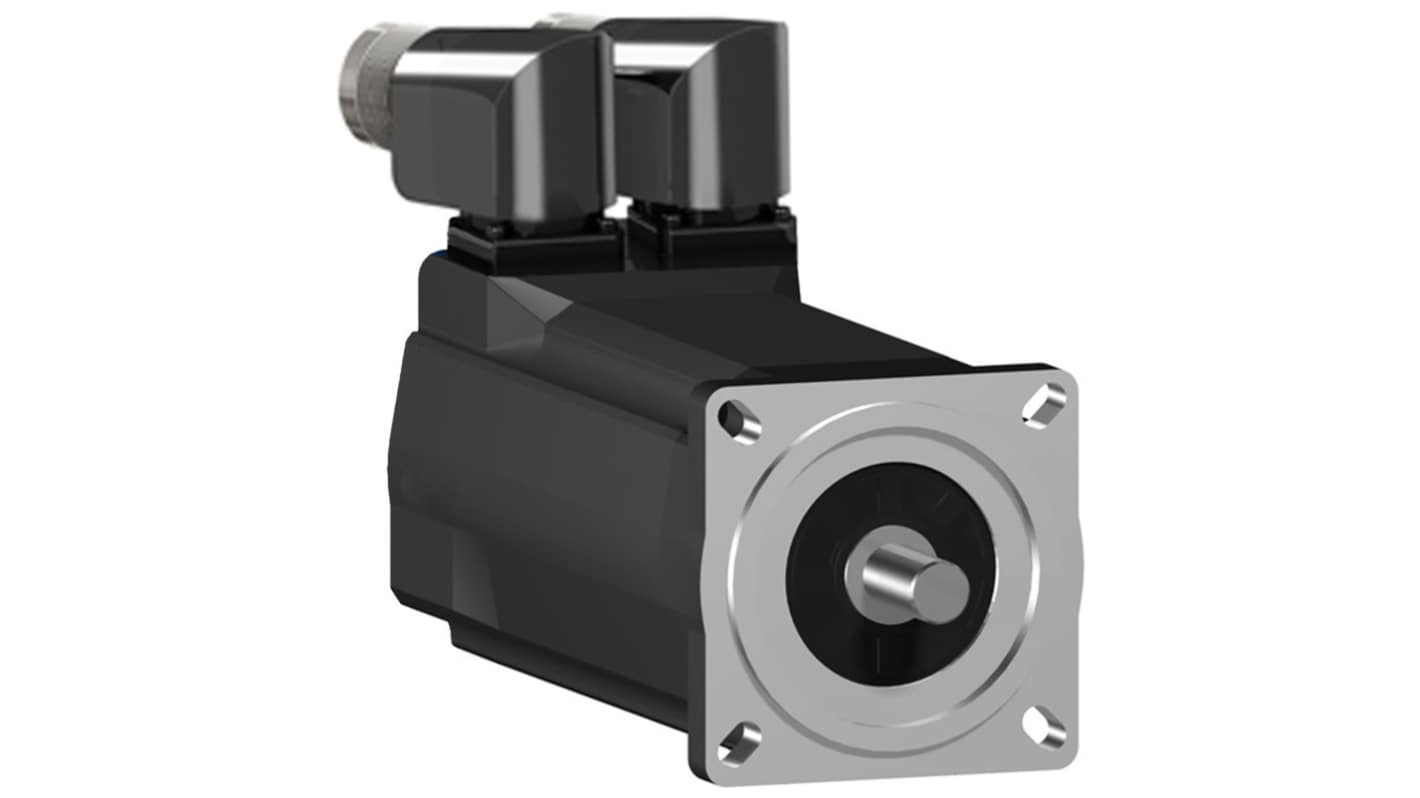

Schneider Electric 115 → 480 V 1.13 kW Servo Motor, 8000 rpm, 7.6 Nm Max Output Torque, 11mm Shaft Diameter

View all Servo Motors

Subtotal (1 unit)*

£1,191.33

(exc. VAT)

£1,429.60

(inc. VAT)

Add to Basket
Select or type quantity
New product - Preorder today
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,191.33

*price indicative

RS Stock No.:
654-649
Mfr. Part No.:
SH30702P01A2000
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Maximum Output Torque

7.6 Nm

Supply Voltage

115 → 480 V

Output Speed

8000 rpm

Power Rating

1.13 kW

Stall Torque

2.04Nm

Shaft Diameter

11mm

COO (Country of Origin):
DE
The Schneider Electric 3-pole servo motor features maximum mechanical speed of 8000RPM and smooth shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 2.9A and a continuous power of 1130W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product.

Electrical connection is straight connector
Torque constant is 0.7 N.m/A at 120 °C
Back emf constant is 48 V/krpm at 20 °C
