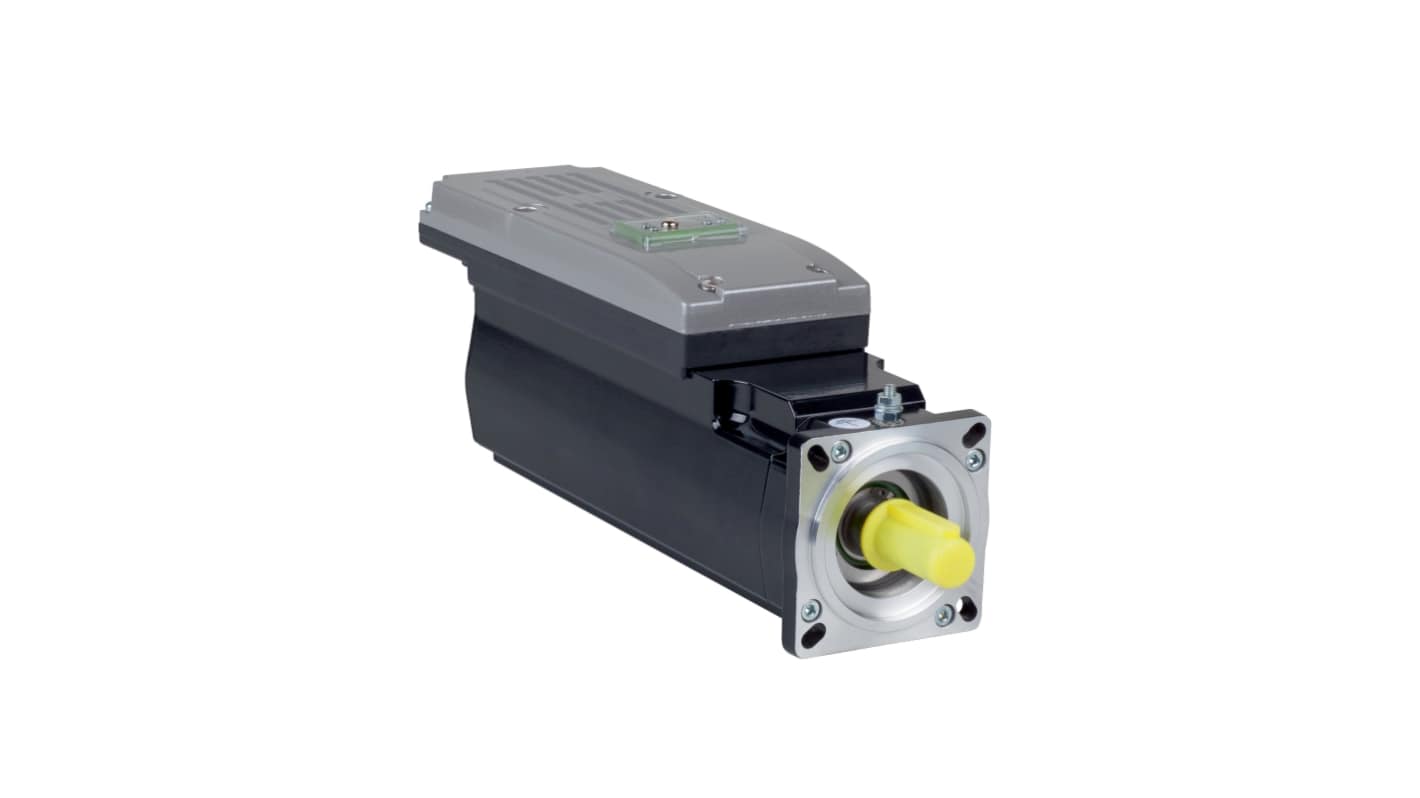

Schneider Electric 250 → 700 V 720 W Servo Motor, 6000 rpm, 7.6 Nm Max Output Torque, 11mm Shaft Diameter
- RS Stock No.:
- 654-667
- Mfr. Part No.:
- ILM0702P02A0000
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£2,276.84
(exc. VAT)
£2,732.21
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- Shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,276.84 |
*price indicative
- RS Stock No.:
- 654-667
- Mfr. Part No.:
- ILM0702P02A0000
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Output Torque | 7.6 Nm | |
| Supply Voltage | 250 → 700 V | |
| Output Speed | 6000 rpm | |
| Power Rating | 720 W | |
| Stall Torque | 1.7Nm | |
| Shaft Diameter | 11mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 7.6 Nm | ||
Supply Voltage 250 → 700 V | ||
Output Speed 6000 rpm | ||
Power Rating 720 W | ||
Stall Torque 1.7Nm | ||
Shaft Diameter 11mm | ||
- COO (Country of Origin):
- DE
The Schneider Electric Servo modules integrated into Lexium 62 ILM ensure that servo drives are no longer located in the control cabinet, but in the field. Mechanics, software, and even electronics can be designed modularly. This makes ILM servo modules a key element in modular machine design and an ideal solution for machines with many different optional mechatronic modules. Lexium 62 ILM is fully software-compatible with the stand-alone Lexium 52 servo drives as well as the drives from the multi-axis Lexium 62 servo drives.
Nominal torque is 1.15 Nm
Nominal speed is 6000 rpm
[Irms] Max. current is 11.8 A
[In] Rated current is 1.5 A
Nominal speed is 6000 rpm
[Irms] Max. current is 11.8 A
[In] Rated current is 1.5 A
