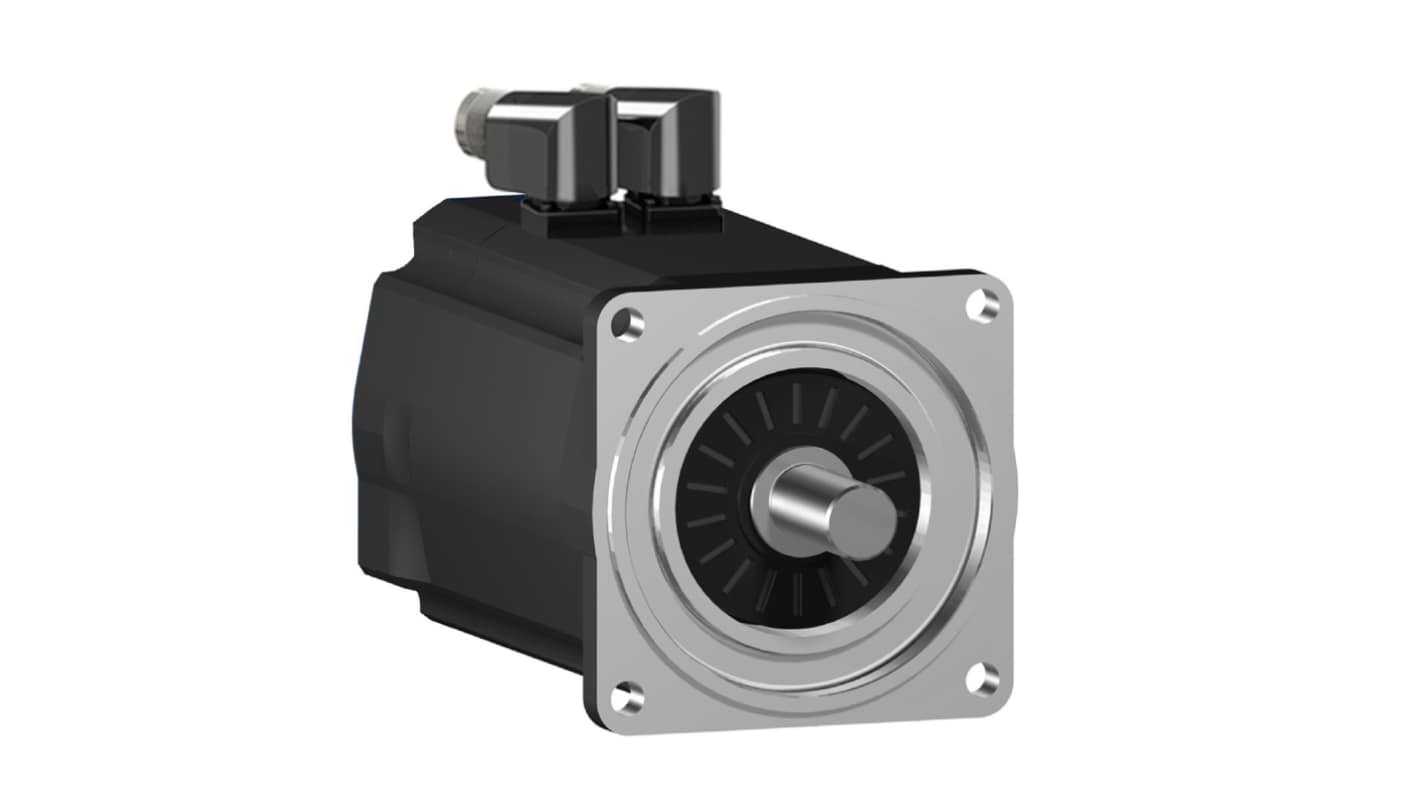

Schneider Electric 115 → 480 V 2.9 kW Servo Motor, 4000 rpm, 27 Nm Max Output Torque, 24mm Shaft Diameter

The Schneider Electric Servo motor is designed to deliver high performance and reliability in demanding applications. This advanced motor features a maximum mechanical speed of 4000 rpm and operates efficiently across a wide voltage range of 115 to 480 V. Its robust construction ensures a continuous stall torque of 11.1 N.m, making it ideal for precision tasks. With a lightweight structure of 11.9 kg and a compact length of 217.5 mm, it easily integrates into various systems. The motor’s advanced IP54/IP65 protection rating provides durability against environmental factors, ensuring consistent operation in challenging conditions. Additionally, the included absolute single turn SinCos Hiperface encoder enhances positional accuracy, making this servo motor an excellent choice for intricate applications.

Maximum mechanical speed of 4000 rpm for swift operation
Continuous stall torque of 11.1 N.m to handle tough tasks
Efficiently supports a wide voltage supply of 115 to 480 V
Compact size enhances versatility in mounting options
Encased with IP54/IP65 protection for resilience against dust and moisture
Lightweight construction at 11.9 kg for easy installation
Utilizes an absolute single turn SinCos Hiperface encoder for precise feedback
Designed for three-phase network compatibility, ensuring smooth functionality
Integrated with a rotatable right-angled connector for flexible electrical connections
Max radial force capabilities of up to 1930 N for robust performance
