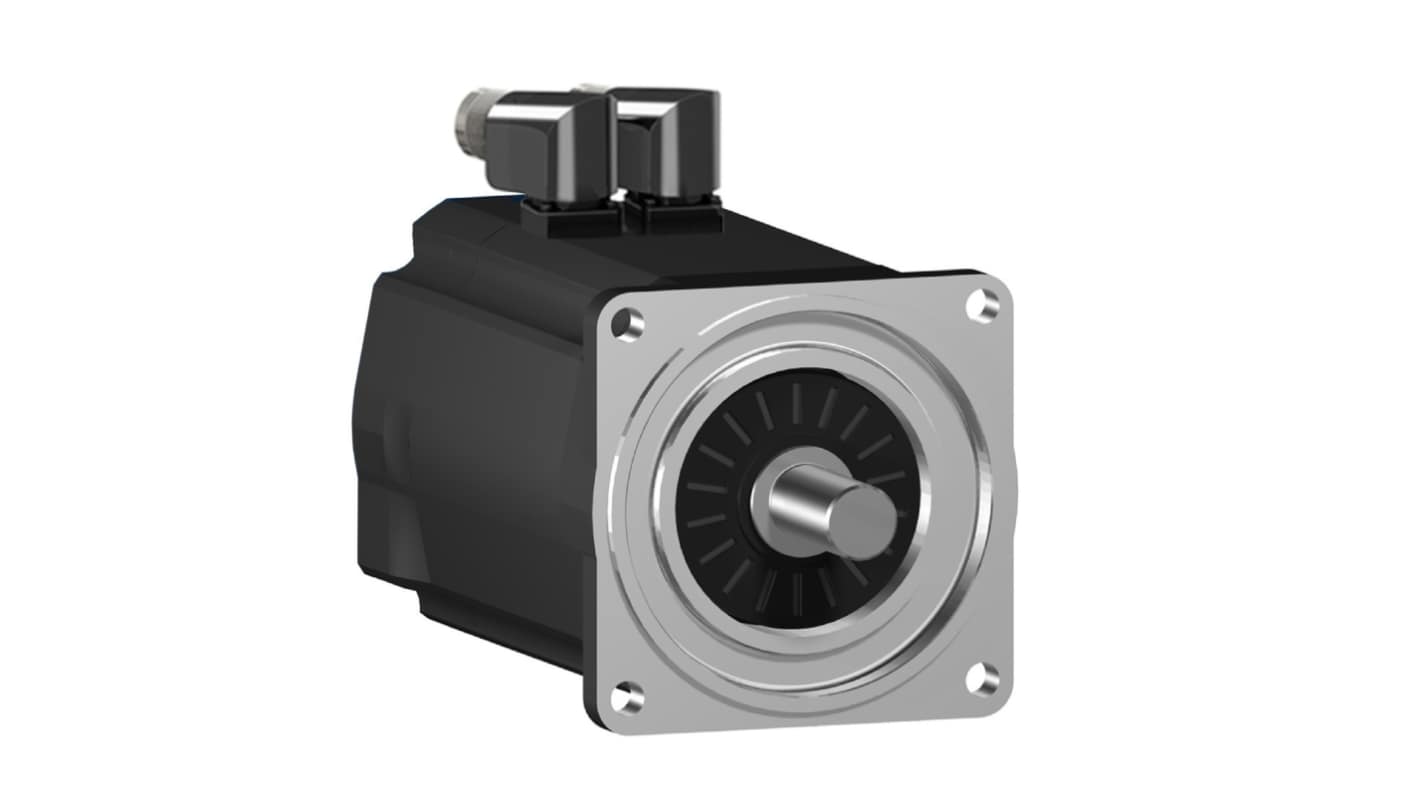

Schneider Electric 115 → 480 V 2.9 kW Servo Motor, 4000 rpm, 27 Nm Max Output Torque, 24mm Shaft Diameter
- RS Stock No.:
- 654-072
- Mfr. Part No.:
- SH31401P01F2000
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£2,807.47
(exc. VAT)
£3,368.96
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2,807.47 |
*price indicative
- RS Stock No.:
- 654-072
- Mfr. Part No.:
- SH31401P01F2000
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Maximum Output Torque | 27 Nm | |
Supply Voltage | 115 → 480 V | |
Output Speed | 4000 rpm | |
Power Rating | 2.9 kW | |
Stall Torque | 11.1Nm | |
Shaft Diameter | 24mm | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 27 Nm | ||
Supply Voltage 115 → 480 V | ||
Output Speed 4000 rpm | ||
Power Rating 2.9 kW | ||
Stall Torque 11.1Nm | ||
Shaft Diameter 24mm | ||
- COO (Country of Origin):
- DE
The Schneider Electric Servo motor is engineered for high-performance applications within the PacDrive 3 range. Designed to deliver exceptional reliability and efficiency, this servo motor operates at a maximum mechanical speed of 4000 rpm, enabling precise control in demanding environments. With a continuous power rating of 2900 W and a peak stall torque of 27 N.m, it exhibits outstanding performance across a variety of industrial tasks. The motor features robust IP54 and IP65 ratings, ensuring protection against dust and water ingress, suited for use in diverse operational conditions. Its advanced technology makes it an ideal choice for applications requiring precision and durability, further emphasised by its compatibility with an absolute single-turn SinCos Hiperface encoder for enhanced feedback resolution.
Maximum mechanical speed of 4000 rpm for rapid response
Continuous stall torque of 11.1 N.m for reliable output under load
Versatile voltage acceptance ranging from 115 to 480 V ensuring compatibility with various installations
Three-phase operation enhances efficiency and reduces operational costs
Encoders provide accurate feedback, improving control and performance
Robust design with IP54/IP65 protection for resilience in challenging environments
Integrated holding brake with a holding torque of 23 N.m for added safety and stability
Smooth shaft design aids in seamless integration into existing systems
Natural convection cooling method for efficient operation without reliance on additional cooling systems
Offers a net weight of 13 kg, providing a balance between performance and manageability
Continuous stall torque of 11.1 N.m for reliable output under load
Versatile voltage acceptance ranging from 115 to 480 V ensuring compatibility with various installations
Three-phase operation enhances efficiency and reduces operational costs
Encoders provide accurate feedback, improving control and performance
Robust design with IP54/IP65 protection for resilience in challenging environments
Integrated holding brake with a holding torque of 23 N.m for added safety and stability
Smooth shaft design aids in seamless integration into existing systems
Natural convection cooling method for efficient operation without reliance on additional cooling systems
Offers a net weight of 13 kg, providing a balance between performance and manageability
