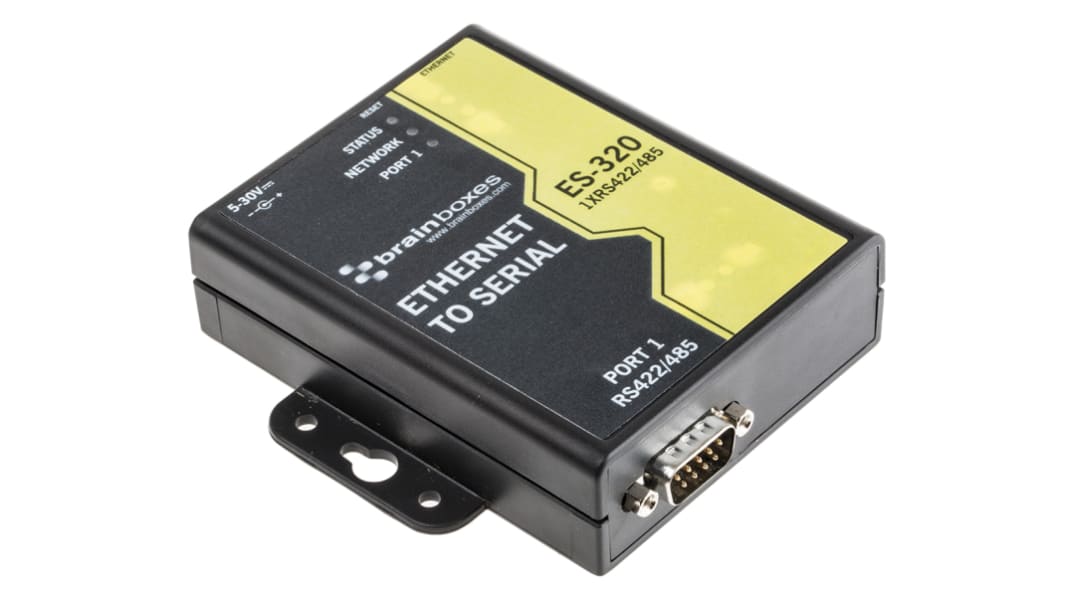

Brainboxes Serial Device Server, 1 Ethernet Port, 1 Serial Port, RS422, RS485 Interface, 1Mbit/s Baud Rate

View all Serial Device Servers

Subtotal (1 unit)*

£104.43

(exc. VAT)

£125.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 9 unit(s) ready to ship from another location
  • Plus 6 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£104.43

*price indicative

RS Stock No.:
703-3252
Mfr. Part No.:
ES-320
Brand:
Brainboxes
Find similar products by selecting one or more attributes.
Select all

Brand

Brainboxes

Interface

RS422, RS485

Maximum Baud Rate

1Mbit/s

Number of Ethernet Ports

1

Number of Serial Ports

1

COO (Country of Origin):
GB

Brainboxes Device Server


The Brainboxes Ethernet to serial device server provides access to two RS422/485 serial port. It has data transfer rates up to 1,000,000 baud and when it is coupled with 1Mbit/s line drivers, it delivers uncompromising performance. The Power over Ethernet (PoE) uses the IEEE 802.3af standard. The ES range in this device provides simple instant networked serial ports. It also has a web interface, which allows secure configuration and control of the serial ports over a local network or the internet using any browser. This device can be accessed via TCP/IP sockets from any networked devices like an Android tablet, PC or phone.

Features and Benefits


User-friendly interface, simple to use and powerful in operation
Serial port tunnelling allows serial cable replacement over any distance
No software required
Power supply included (power input ranges between 5VDC and 30V DC)

Applications


Modems
POS
Printers
Industrial equipment
