MikroElektronika Oximeter 5 Click Pulse Oximeter Sensor Add On Board for MAX30102 mikroBUS socket

View all Sensor Development Tools
Bulk discount available

Subtotal (1 unit)*

£30.48

(exc. VAT)

£36.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£30.48
5 - 9£28.95
10 +£27.43

*price indicative

RS Stock No.:
247-5776
Mfr. Part No.:
MIKROE-4986
Brand:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Sensor Technology

Pulse Oximeter Sensor

Featured Device

MAX30102

For Use With

mikroBUS socket

Kit Classification

Add On Board

Kit Name

Oximeter 5 Click

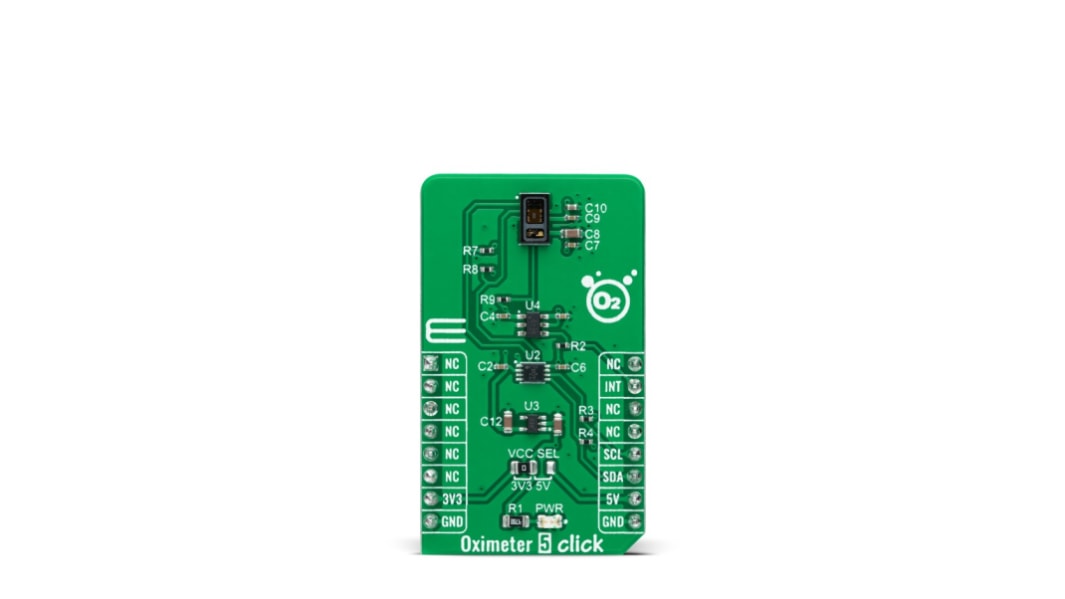

The MikroElektronika Oximeter 5 Click is a compact add on board suitable for measuring blood oxygen saturation. This board features the MAX30102, integrated pulse oximetry, and heart rate monitor module from Analog Devices. The MAX30102 includes internal LEDs, photodetectors, optical elements, and low noise electronics with ambient light rejection. It operates on a single 1.8V power supply acquired from both mikroBUS power rails for the internal LEDs which communicates through a standard I2C compatible interface. The MAX30102 can be shut down through software with zero standby current, allowing the power rails to remain powered at all times. This Click board makes it an excellent choice for optical pulse oximetry and health monitoring applications.

Integrated optical components
Fully integrated ADC, LED drivers, and timing core
Low power consumption
Fast data output capability
Designed for ultralow direct optical reflections
