MikroElektronika Current Limit 5 Click Power Management for MCP4561, MIC2099 for mikrobus Socket

View this category
Bulk discount available

Subtotal (1 unit)*

£11.40

(exc. VAT)

£13.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£11.40
5 - 9£10.84
10 +£10.26

*price indicative

RS Stock No.:
247-5783
Mfr. Part No.:
MIKROE-4999
Brand:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Power Management Function

Power Management

For Use With

mikrobus Socket

Kit Classification

Add On Board

Featured Device

MCP4561, MIC2099

Kit Name

Current Limit 5 Click

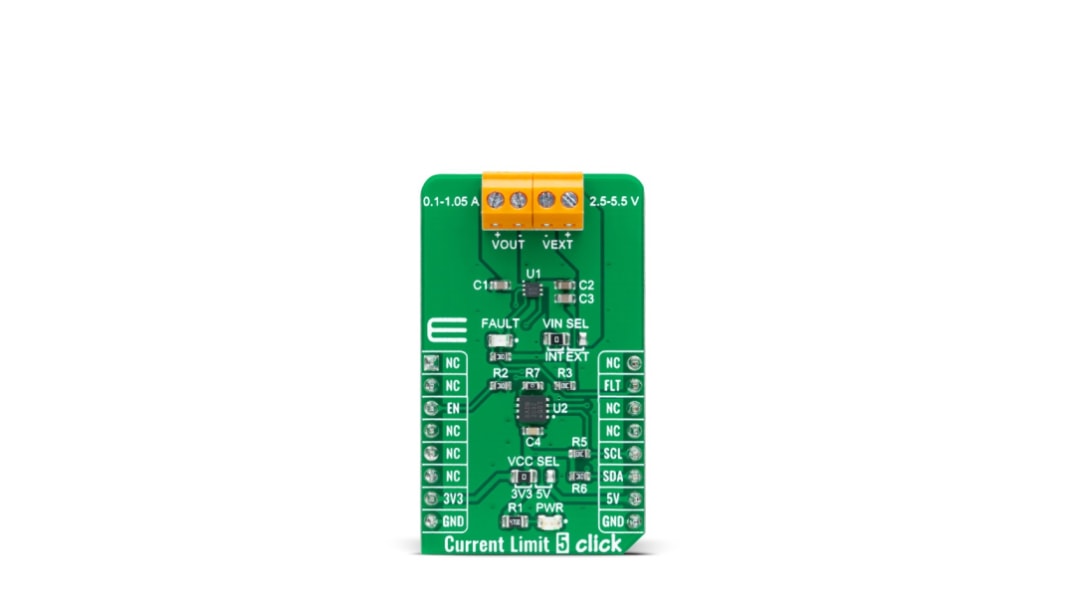

The MikroElektronika Current Limit 5 Click is a compact add on board representing a current limiting solution. This board features the MIC2099, a current limit power distribution switch from Microchip Technology. This Click board™ represents a programmable current limit solution with various protection features and fault indication, which operates from a 2.5V to 5.5V input voltage range. Also, the current limit is adjustable from 100mA up to 1.05A programmed through the MCP4561 digital potentiometer. This Click board™ is suitable for applications in portable equipment and condition monitoring or power supplies, protecting them in short circuits or other overload conditions.

Integrated protection features
Programmable current limiting up to 1.05A
Soft start that prevents large current inrush,
Enable feature
Automatic on output after fault
