- RS Stock No.:
- 247-3245
- Mfr. Part No.:
- SEN0376
- Brand:
- DFRobot
90 In stock - FREE next working day delivery available
Added
Price Each
£19.95
(exc. VAT)
£23.94
(inc. VAT)
Units | Per unit |
1 - 4 | £19.95 |
5 - 9 | £19.63 |
10 + | £19.29 |
- RS Stock No.:
- 247-3245
- Mfr. Part No.:
- SEN0376
- Brand:
- DFRobot
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

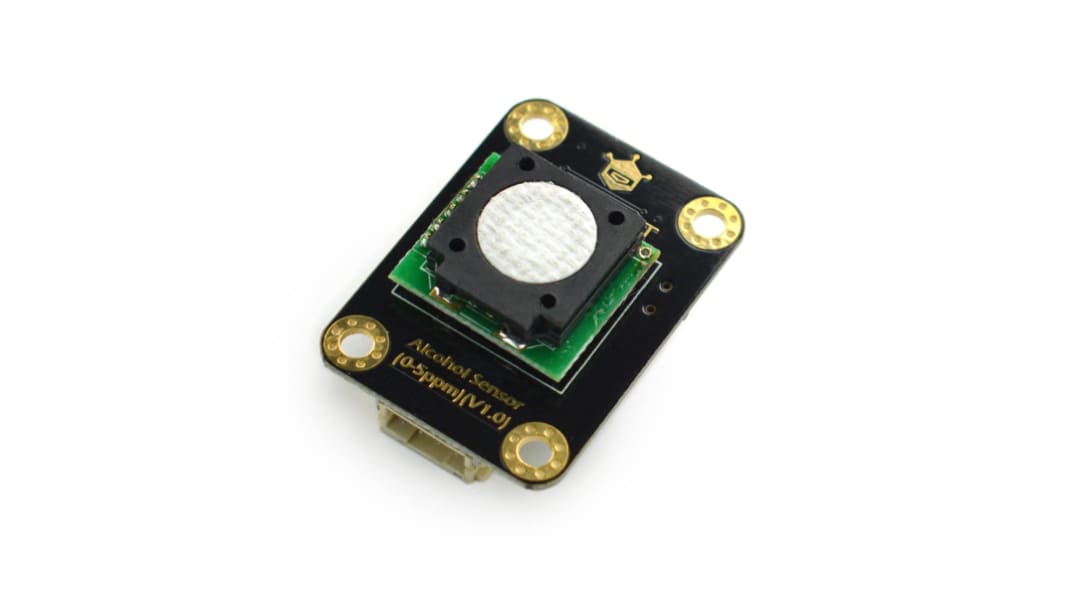

The DFRobot Arduino compatible alcohol sensor module from DFRobot with a 0-5ppm measuring range, supporting I2C and UART outputs. Aiming at fast and accurate detection of alcohol gas concentration in the air, the sensor is well applicable to the small alcohol concentration measurement in the breathalyser, smart vehicle, and so on. Based on the electrochemistry principle, this alcohol sensor has been calibrated before the factory. It is characterized by strong anti-interference, high stability, and sensitivity and up to 2 years of service life. The module supports 0.01ppm(10ppb) resolution and 3.3∼5.5V wide-range voltage input and works well with mainstream controllers like Arduino, ESP32, and Raspberry Pi. With the easy-to-use Gravity interface and the sample program provided by us, it can conveniently build alcohol concentration detector using this sensor.
Power: 0.05W (5V)
Signal Output: I2C, UART(0∼3V)
Measuring range is 0 to 5ppm
Resolution is ≤0.01ppm (10ppb)
Preheat time is ≤3min
Response time is ≤60s
Recover time is ≤60s
Operating temperature is -20 to 50℃
Operating humidity is 15 to 90%RH (No condense)
Storage temperature is 0 to 25℃
Signal Output: I2C, UART(0∼3V)
Measuring range is 0 to 5ppm
Resolution is ≤0.01ppm (10ppb)
Preheat time is ≤3min
Response time is ≤60s
Recover time is ≤60s
Operating temperature is -20 to 50℃
Operating humidity is 15 to 90%RH (No condense)
Storage temperature is 0 to 25℃
Specifications
Attribute | Value |
---|---|
Sensor Technology | Gas Sensor |
For Use With | Arduino, ESP32, Raspberry Pi |
Kit Classification | Module |
Kit Name | Alcohol Sensor Module |
