RS PRO Female 4 way M12 to Free End Sensor Actuator Cable, 5 m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£10.26

(exc. VAT)

£12.31

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,681 unit(s) ready to ship
  • Plus 112 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£10.26
5 - 9£9.76
10 - 49£9.24
50 +£8.19

*price indicative

RS Stock No.:
877-1047
Distrelec Article No.:
304-05-050
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

CBF

Product Type

Sensor Actuator Cable

Cable Length

5m

Jacket Colour

Black

Jacket Material

Polyvinyl Chloride

Connector Type A

M12

Number of Contacts A

4

Connector Gender A

Female

Connector Type B

Free End

Voltage

25 V

IP Rating

IP67

Standards/Approvals

No

Distrelec Product Id

30405050

COO (Country of Origin):
IN

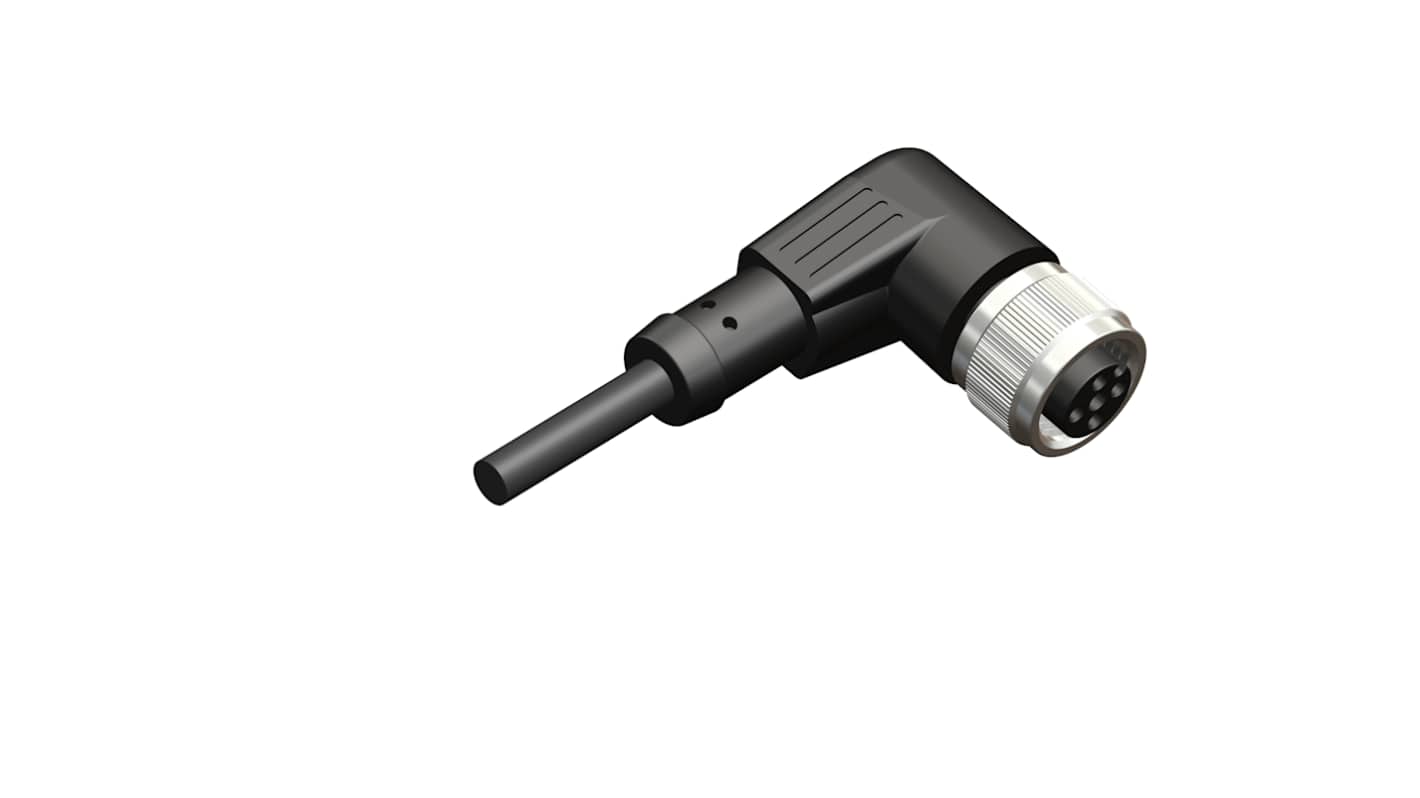

RS PRO Right Angle M12 to Unterminated Cable assembly, 4 Core 5 m Cable


Consider this 4-core cable from trusted range RS PRO when transferring data in industrial settings. These types of wires are commonly used with sensor and automation equipment. This assembly has a right-angled M12 connector to fit where space is limited.

It has a corrosion-resistant, nickel-plated brass coupling to keep the connection secure. There's also a neoprene O-ring and polyurethane sheath that protects against liquids and industrial chemicals. The cable has an unterminated opposite end, so you can attach the right connector for your job.

This product is ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 compliant on electrostatic discharge safety and contains minimal hazardous substances (RoHS).

The 5-metre cable operates safely at temperatures ranging from -25°C to +75°C. It has an outer diameter of 4.5 mm, a cross-sectional area of 0.34 mm and a voltage rating of 250 V. Use it for applications from process control to commercial electronics.

Features and Benefits


• Right-angled M12 connector suitable where space is tight

• Female to unterminated connectors

• Corrosion-resistant nickel-plated brass coupling nut that will forge a secure connection

• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge

• Neoprene O-ring keeps out liquids

• Gold-plated contacts resist corrosion

• 4-core cable

• Length of 5 m

• Outer diameter of 4.5 mm

• Cross-sectional area of 0.34 mm²

• AWG rating of 22

• Unshielded cable

• Operating temperature -25°C to +75˚C

• Voltage rating of 250 V

• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins

• Amp rating of 4 A
