- RS Stock No.:
- 877-1038
- Brand:
- RS PRO
167 In stock - FREE next working day delivery available
11 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.94
(exc. VAT)
£10.73
(inc. VAT)
Units | Per unit |
1 - 4 | £8.94 |
5 - 9 | £8.51 |
10 - 49 | £8.03 |
50 + | £7.16 |
- RS Stock No.:
- 877-1038
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

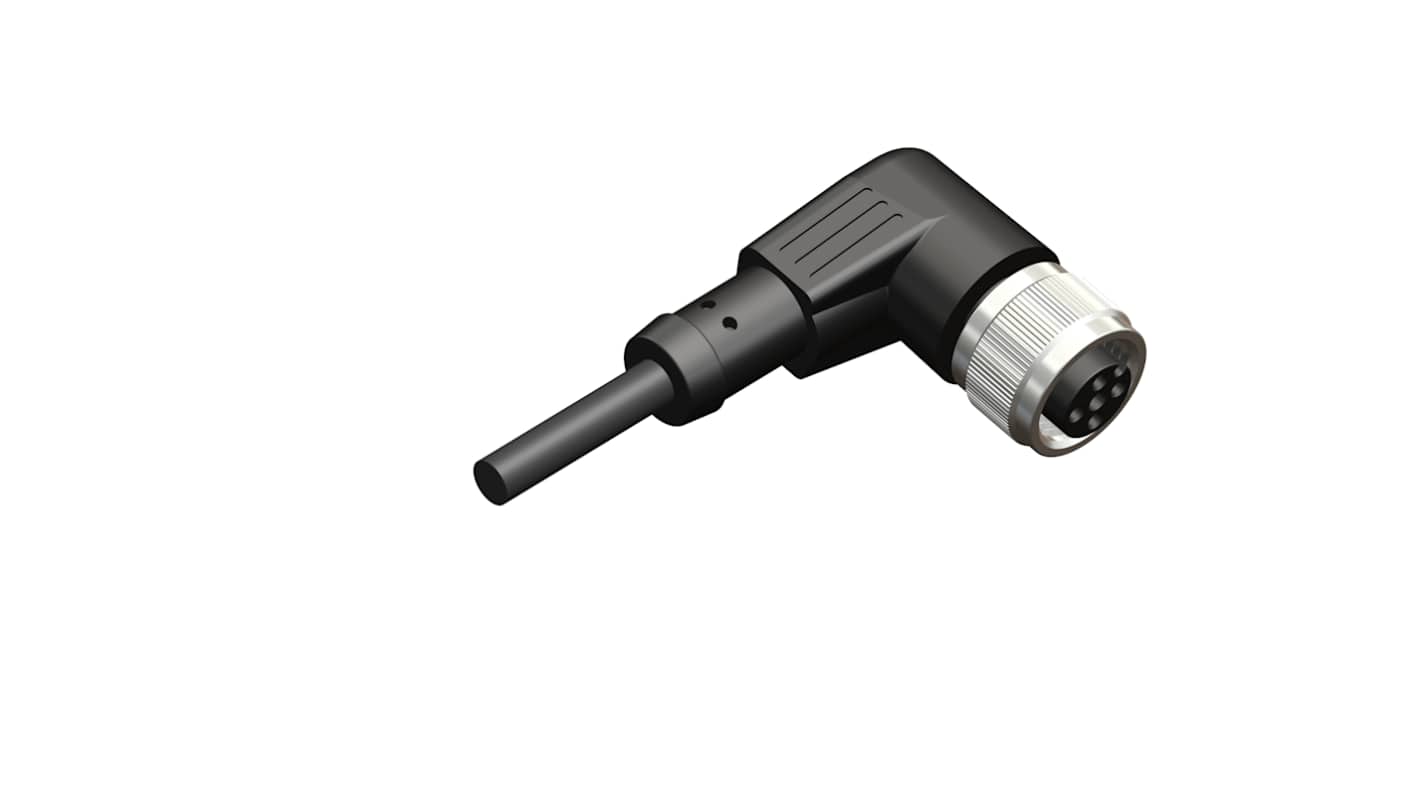

M12 Single Ended Cable Assembly
Brought to you under the trusted RS Brand, this range of M12 connector cable assemblies are commonly used in sensor and automation equipment. Boasting a high degree of environmental protection, they are ideal for industrial use. Fitted with a secure coupling nut, these RS M12 Connector Cable Assemblies are left un-terminated and partially stripped at one end, and are an ideal solution for when secure and reliable data transference is needed.
Features and Benefits:
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.25 mm² |
Number of Cores | 4 |
Length | 2m |
Sheath Colour | Black |
Sheath Material | PUR |
Connector 1 | M12 |
Connector 1 Orientation | Right Angle |
Connector 1 Number of Contacts | 4 |
Connector 1 Gender | Female |
Connector 2 | Unterminated |
Shielded/Unshielded | Unshielded |
Voltage Rating | 250 V |
Current Rating | 4 A |
IP Rating | IP67 |
American Wire Gauge | 24 AWG |
Outer Diameter | 4.8mm |
Minimum Operating Temperature | -25°C |
Operating Temperature Range | -25 → +75 °C |
Connector 1 Housing Gender | Female |
Cable Shape | Multicore |
Maximum Operating Temperature | +75°C |
