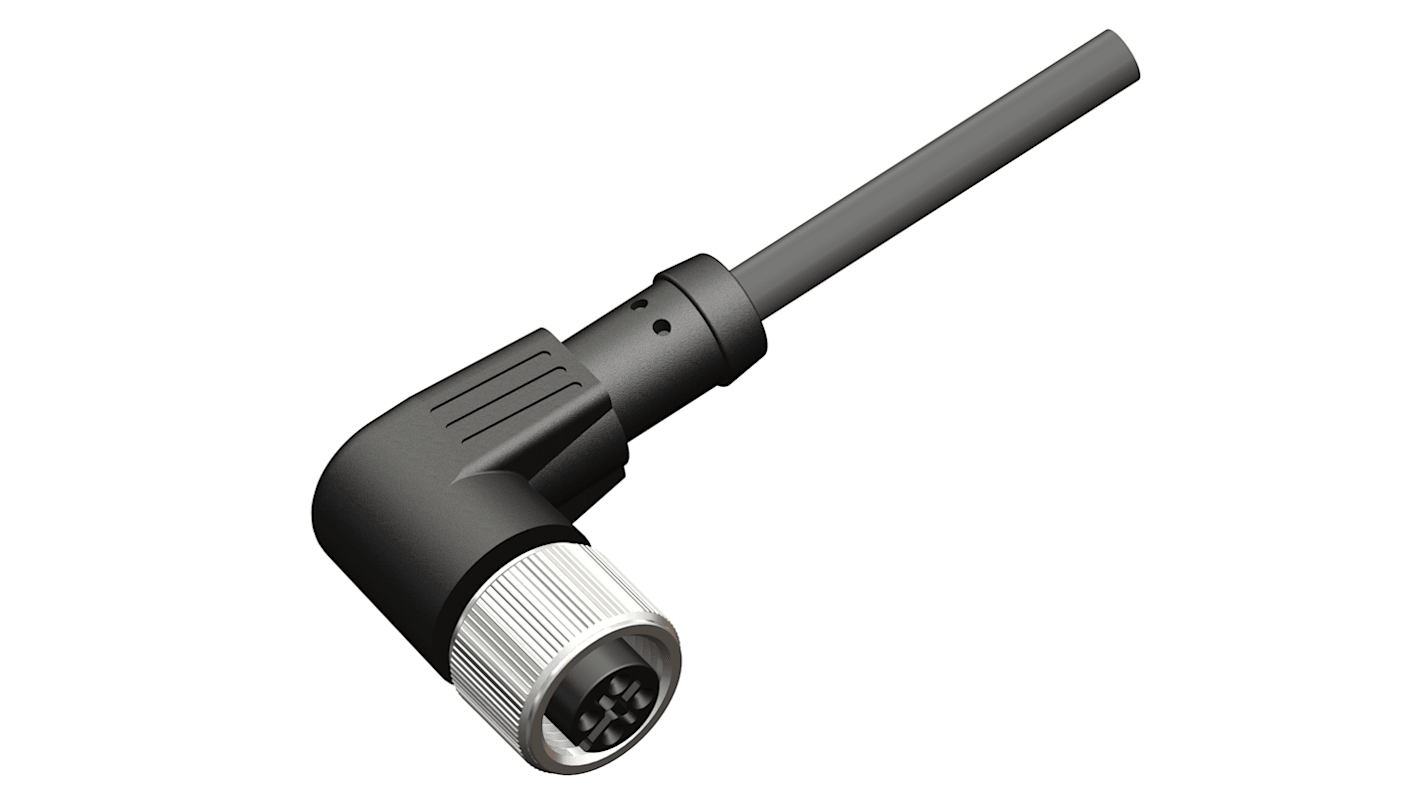

RS PRO Right Angle Female M12 to Unterminated Sensor Actuator Cable, 5m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£29.49

(exc. VAT)

£35.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3 unit(s) shipping from 06 October 2025
  • Plus 12 unit(s) shipping from 06 October 2025
  • Plus 42 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£29.49

*price indicative

RS Stock No.:
250-0617
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

CBF12

Number of Cores

4

Cross Sectional Area

0.25mm²

Sheath Material

PUR

Sheath Colour

Black

Length

5m

Connector 1 Orientation

Right Angle

Connector 1

M12

Connector 1 Gender

Female

Connector 2

Unterminated

Coding

A

Shielded/Unshielded

Shielded

Shielding

80% Braid

Current Rating

4A

Voltage Rating

250 V

IP Rating

IP67

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+75°C

Cable Shape

Multicore

Outer Diameter

4.8mm

COO (Country of Origin):
IN

RS PRO 4 Core Shielded Right Angle Female M12 Connector Assembly (Unterminated)


The RS PRO M12 single-ended multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.

Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible chemical resistant Polyurethane (PUR) jacket, the RS PRO multicore cable assembly is built for the industrial environment.

The right-angle design of the M12 connector is perfect for use in hard to access areas, and the unterminated, partially stripped wires can be quickly and easily installed with minimum effort, ideal for industrial use in a wide range of automation and sensor equipment.

Features and benefits


  • Right angle M12 connector to unterminated wires

  • Shielded A coded cable

  • High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge

  • Neoprene O-ring to keep out liquid and moisture

  • Nickel-plated brass coupling nut secures the connection and resists corrosion

  • 4 Core cable

  • Length 5m

  • Operating temperature range from -25°C to +75˚C

  • Voltage rating of 250V

  • Brass contacts with Gold Flash plating

  • Current rating of 4A

  • Polyurethane (PUR) sheath

  • IP67 rating

Approvals and Standards: IEC 61076-2-101
