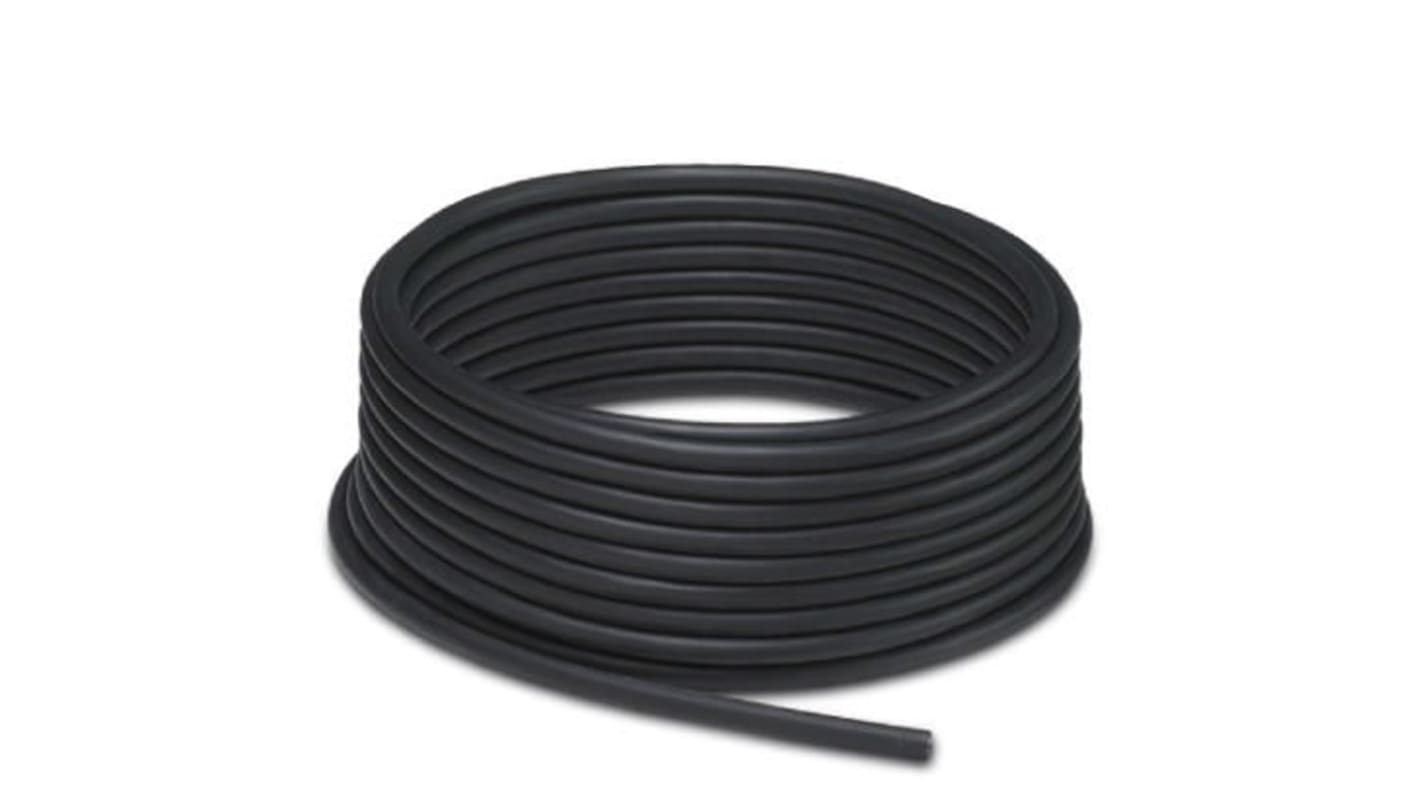

Phoenix Contact Actuator/Sensor Cable, 100m
- RS Stock No.:
- 853-0969
- Distrelec Article No.:
- 304-02-471
- Mfr. Part No.:
- 1501676
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£235.55
(exc. VAT)
£282.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 16 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £235.55 |
*price indicative
- RS Stock No.:
- 853-0969
- Distrelec Article No.:
- 304-02-471
- Mfr. Part No.:
- 1501676
- Brand:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-5P-100.0-PUR/0.34 | |
Number of Cores | 5 | |
Cross Sectional Area | 0.34 mm² | |
Length | 100m | |
Sheath Material | Polyurethane PUR | |
Sheath Colour | Black | |
Voltage Rating | 300 V | |
Minimum Operating Temperature | -40°C | |
Minimum Bend Radius | 25 mm | |
Cable Shape | Twisted Pair | |
Maximum Operating Temperature | +80°C | |
Oil Resistant | Yes | |
Fire Behaviour | Halogen Free | |
Conductor Material | Bare Copper | |
American Wire Gauge | 22 AWG | |
Outer Diameter | 5mm | |
Conductor Resistance | 58 Ω/km | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P-100.0-PUR/0.34 | ||
Number of Cores 5 | ||
Cross Sectional Area 0.34 mm² | ||
Length 100m | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Black | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Minimum Bend Radius 25 mm | ||
Cable Shape Twisted Pair | ||
Maximum Operating Temperature +80°C | ||
Oil Resistant Yes | ||
Fire Behaviour Halogen Free | ||
Conductor Material Bare Copper | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 5mm | ||
Conductor Resistance 58 Ω/km | ||
