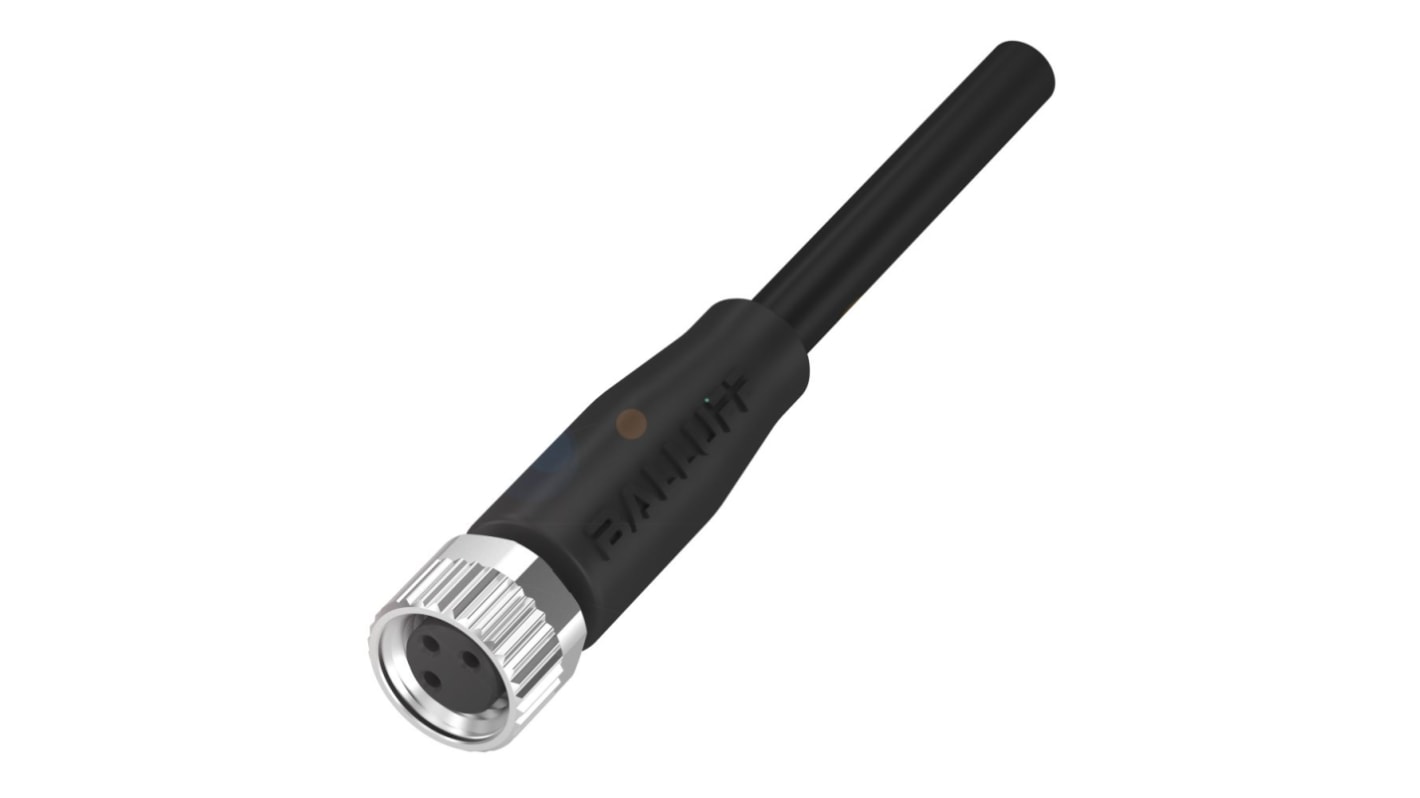

BALLUFF Straight Female M8 to Unterminated Sensor Actuator Cable, 10m

RS Stock No.:: 241-9981
Mfr. Part No.:: BCC02MA
Brand:: BALLUFF

BALLUFF Straight Female M8 to Unterminated Sensor Actuator Cable, 10m

9 In stock - FREE next working day delivery available

2 available from Europe for delivery within 2 working day(s).

Price Each

£21.22

(exc. VAT)

£25.46

(inc. VAT)

Units	Per unit
1 +	£21.22

RS Stock No.:: 241-9981
Mfr. Part No.:: BCC02MA
Brand:: BALLUFF

Technical Reference

Datasheet - BCC02MA

Legislation and Compliance

COO (Country of Origin):: HU

Product Details

The Balluff single-ended cordset is used for signals, data and power transmission. It is a PUR black, 10m, drag chain compatible cable having M8x1-female, straight, 3-pin, A-coded connection with 3 conductors and 4.0 A rated current (at 40 °C).

0.34 mm² Conductor cross-section
-50 °C to 90 °C cable temperature at fixed routing
-25 °C to 90 °C cable temperature at flexible routing
60 VDC / 60 VAC Operating voltage Ub
IP67, IP69K protection rating
CE, cULus, EAC, WEEE Approval/Conformity

Specifications

Attribute	Value
Series	BCC02
Number of Cores	3
Length	10m
Sheath Material	PUR
Sheath Colour	Black
Connector 1 Orientation	Straight
Connector 1 Gender	Female
Connector 1	M8
Connector 2	Unterminated
Coding	A
IP Rating	IP67, IP69K
