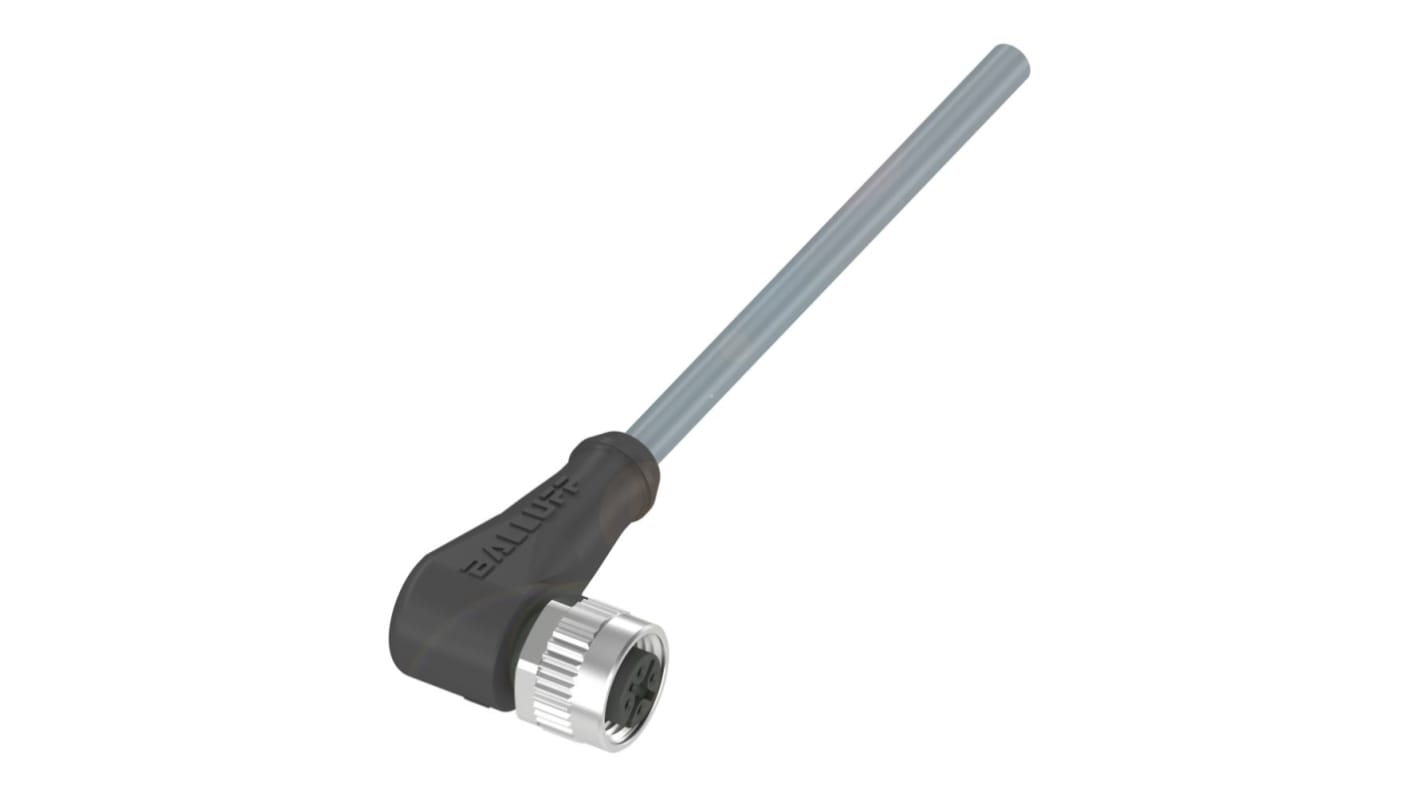

BALLUFF Right Angle Female M12 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 242-0102
- Mfr. Part No.:
- BCC0FRR
- Brand:
- BALLUFF
Subtotal (1 unit)*
£20.83
(exc. VAT)
£25.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.83 |
*price indicative
- RS Stock No.:
- 242-0102
- Mfr. Part No.:
- BCC0FRR
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Series | BCC0F | |
| Number of Cores | 5 | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Length | 10m | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 | Unterminated | |
| Coding | A | |
| IP Rating | IP67, IP68, IP69K | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Series BCC0F | ||
Number of Cores 5 | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Length 10m | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Unterminated | ||
Coding A | ||
IP Rating IP67, IP68, IP69K | ||
- COO (Country of Origin):
- HU
The Balluff single-ended cordset is used for signals, data and power transmission. It is a PVC grey, 10 m, drag chain compatible cable having M12x1-female, angled, 5-pin, A-coded connection with 5 conductors and 4.0 A rated current (at 40 °C).
Complimentary switching output
-40 °C to 105 °C cable temperature at fixed routing
-5 °C to 105 °C cable temperature at flexible routing
0.34 mm² conductor cross-section
60 VDC / 60 VAC Operating voltage Ub
IP67, IP68, IP69K protection rating
CE, cULus, E
-40 °C to 105 °C cable temperature at fixed routing
-5 °C to 105 °C cable temperature at flexible routing
0.34 mm² conductor cross-section
60 VDC / 60 VAC Operating voltage Ub
IP67, IP68, IP69K protection rating
CE, cULus, E
