SICK Female 4 way M8 to Unterminated Sensor Actuator Cable, 5 m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£11.85

(exc. VAT)

£14.22

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 26 unit(s) ready to ship
  • Plus 25 unit(s) ready to ship from another location
  • Plus 30 unit(s) shipping from 14 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£11.85

*price indicative

RS Stock No.:
225-3077
Mfr. Part No.:
YG8U14-050VA3XLEAX
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Product Type

Sensor Actuator Cable

Series

YG8U14-050VA3XLEAX

Cable Length

5m

Jacket Colour

Grey

Jacket Material

Polyvinyl Chloride

Number of Contacts A

4

Connector Gender A

Female

Connector Type A

M8

Connector Type B

Unterminated

Voltage

60 V

IP Rating

IP67

Standards/Approvals

CE, UL

COO (Country of Origin):
CZ

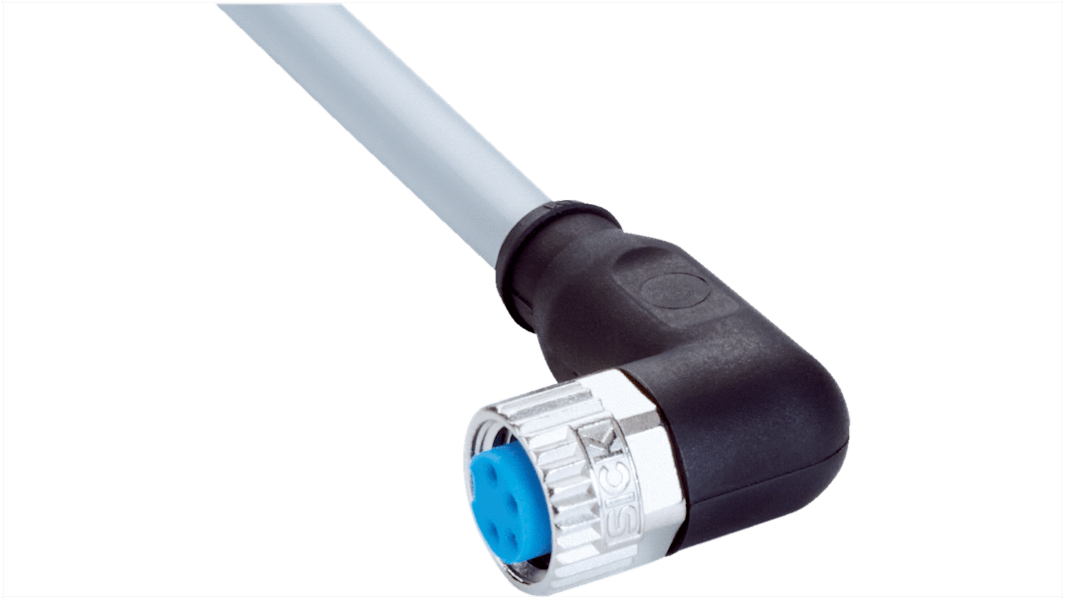

Sick YG8U14-050VA3XLEAX Series Sensor Actuator Cable, 5m Cable Length, Grey Jacket - YG8U14-050VA3XLEAX


This sensor actuator cable provides a robust, industrial connection between M8 devices and controllers for signal transmission in automation environments. It combines a right-angled female M8 connector with an unterminated free end, designed for sensor and actuator wiring where a flexible cable run and field termination are required.

Features & Benefits


• 5 m length for extended reach in machine layouts
• 4-pin M8 connection supporting sensor/actuator signals
• PVC jacket in grey resistant to common chemicals
• Rated for ≤60V DC enabling low-voltage control circuits
• IP65 IP66K IP67 enclosure rating for harsh environments
• 4A current capacity for typical I/O loads

Applications


• Suitable for proximity sensor wiring in production lines
• Ideal for actuator connections on assembly machinery
• used with distributed I/O modules requiring field termination
• Can be used for conveyor control signal linking
• Suitable for repair or replacement of damaged sensor leads

What conductor size and type does it use?


The cable contains four conductors with a cross-section of 0.25mm² each and is unshielded.

What temperature ranges can it tolerate during installation and operation?


It is rated for flexible operation from −5 °C to +80 °C and stationary installation from −30 °C to +80 °C, with the connector head specified to −25 °C to +85 °C.

How should the connector be torqued during assembly?


The angled M8 female connector requires a tightening torque of 0.4 N·m using a SW9 tool.

What mechanical flexing limits apply to cable routing?


For dynamic applications maintain a bending radius greater than 10x the cable diameter

for fixed runs use greater than 5x the diameter.

Which materials comprise the connector and seal for chemical exposure considerations?


The connector body is TPU with a zinc die-cast nickel-plated locking nut and an FKM seal.
