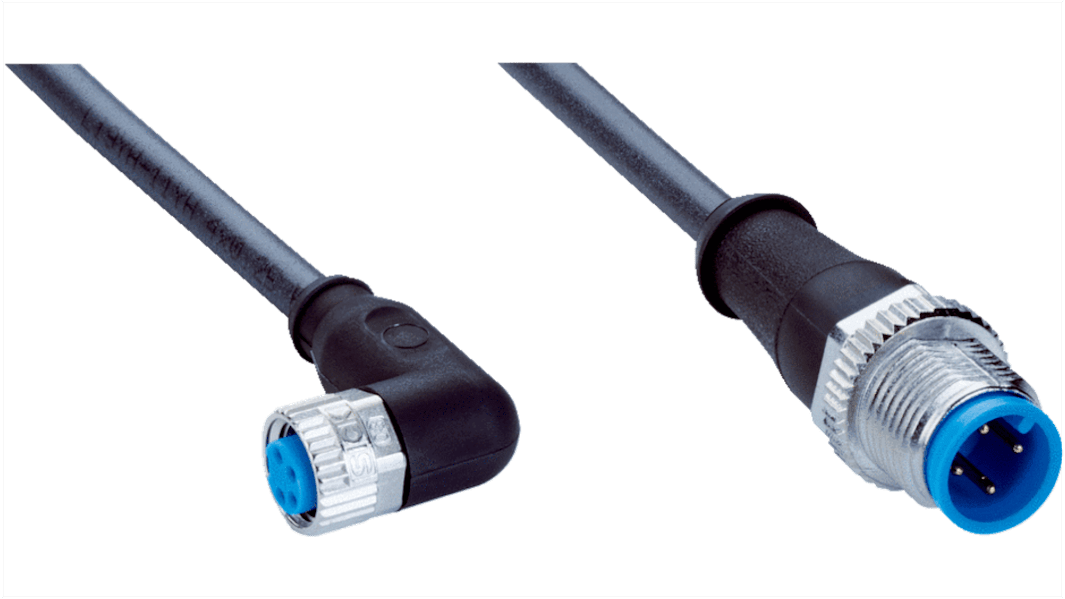

SICK Right Angle Female 4 way M8 to Straight Male 4 way M12 Connector & Cable, 5m

RS Stock No.:: 285-1551
Mfr. Part No.:: YG8U14-050UA3M2A14
Brand:: SICK

SICK Right Angle Female 4 way M8 to Straight Male 4 way M12 Connector & Cable, 5m

Subtotal (1 unit)*

£22.04

(exc. VAT)

£26.45

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

13 unit(s) ready to ship from another location
Plus 999,999,986 unit(s) shipping from 04 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£22.04

*price indicative

RS Stock No.:: 285-1551
Mfr. Part No.:: YG8U14-050UA3M2A14
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Series	YG8U14
	Number of Cores	4
	Cross Sectional Area	0.25 mm²
	Sheath Colour	Black
	Sheath Material	Polyurethane PUR
	Length	5m
	Connector 1 Gender	Female
	Connector 1 Orientation	Right Angle
	Connector 1 Number of Contacts	4
	Connector 1	M8
	Connector 2 Gender	Male
	Connector 2	M12
	Connector 2 Number of Contacts	4
	Connector 2 Orientation	Straight
	Connector 2 Housing Gender	Male
	Coding	A
	Mounting Type	Plug-In
	Shielded/Unshielded	Unshielded
	Shielding	Unshielded
	Voltage Rating	1.5 kV
	Current Rating	4 A
	IP Rating	IP65, IP66K, IP67
	Fire Behaviour	Flame Retardant
	Minimum Bend Radius	45 mm
	Maximum Operating Temperature	+80°C
	Oil Resistant	Yes
	American Wire Gauge	24
	Outer Diameter	4.5mm
	Minimum Operating Temperature	-25°C
	Connector 1 Housing Gender	Female
	Cable Shape	Round
	Standards Met	IEC 60332-1, UL 1581 FT2
	Operating Temperature Range	-25 → 80 °C

	Select all
	Brand SICK
	Series YG8U14
	Number of Cores 4
	Cross Sectional Area 0.25 mm²
	Sheath Colour Black
	Sheath Material Polyurethane PUR
	Length 5m
	Connector 1 Gender Female
	Connector 1 Orientation Right Angle
	Connector 1 Number of Contacts 4
	Connector 1 M8
	Connector 2 Gender Male
	Connector 2 M12
	Connector 2 Number of Contacts 4
	Connector 2 Orientation Straight
	Connector 2 Housing Gender Male
	Coding A
	Mounting Type Plug-In
	Shielded/Unshielded Unshielded
	Shielding Unshielded
	Voltage Rating 1.5 kV
	Current Rating 4 A
	IP Rating IP65, IP66K, IP67
	Fire Behaviour Flame Retardant
	Minimum Bend Radius 45 mm
	Maximum Operating Temperature +80°C
	Oil Resistant Yes
	American Wire Gauge 24
	Outer Diameter 4.5mm
	Minimum Operating Temperature -25°C
	Connector 1 Housing Gender Female
	Cable Shape Round
	Standards Met IEC 60332-1, UL 1581 FT2
	Operating Temperature Range -25 → 80 °C

Datasheet - YG8U14-050UA3M2A14

COO (Country of Origin):: CZ

Overview

The Connection cables are designed for reliable and secure connections, featuring a female connector (M8, 4 pin, angled, A coded) on one end at Head A and a Male connector (M12, 4 pin, straight, A coded) on the other end at Head B. The locking plug connector utilizes a robust screw connection mechanism, and the connectors are constructed with durable TPU material in a sleek black color. The locking nut material for both connectors is zinc die cast and nickel plated, providing effective protection.

The tightening torque is 0.4 Nm for M8 and 0.6 Nm for M12, with widths across flats of 9 (M8) and 13 (M12), facilitating easy installation and maintenance. The 5 meter cable comprises a 4 wire configuration, utilizing PUR (halogen free) material for enhanced durability. The black PUR jacket, with a diameter of 4.5 mm and a conductor cross section of 0.25 mm².

At a glance

Your Benefit

Applications

Zones with oils and lubricants
Drag chain operation
Robot
