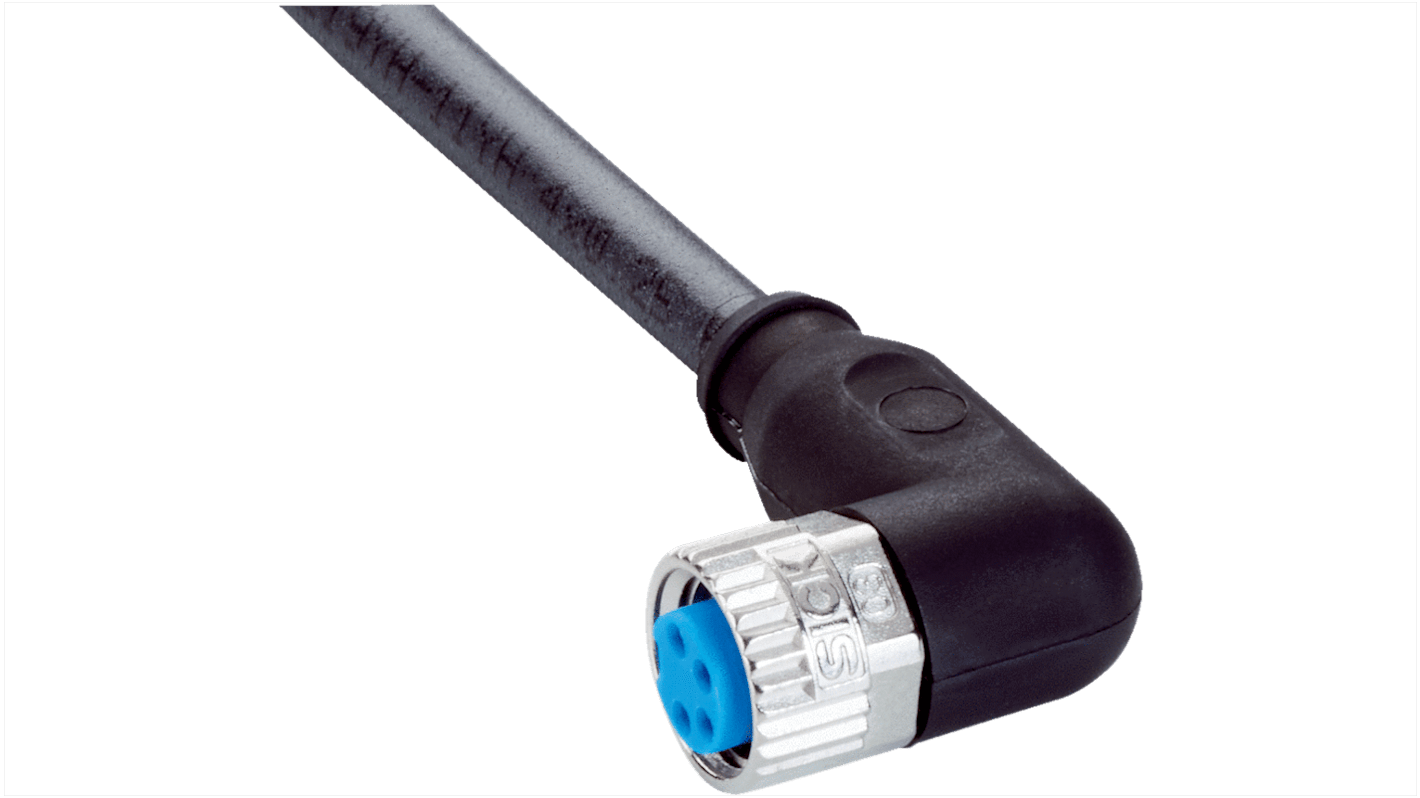

SICK Female 4 way M8 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 225-3078
- Mfr. Part No.:
- YG8U14-100UA3XLEAX
- Brand:
- SICK
Subtotal (1 unit)*
£24.12
(exc. VAT)
£28.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 22 unit(s) shipping from 13 October 2025
- Plus 10 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.12 |
*price indicative
- RS Stock No.:
- 225-3078
- Mfr. Part No.:
- YG8U14-100UA3XLEAX
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Length | 10m | |
| Sheath Material | Polyurethane PUR | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Connector 1 | M8 | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP67 | |
| Insulation Material | PUR | |
| Oil Resistant | Yes | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 4.5mm | |
| Connector 1 Housing Gender | Female | |
| Cable Shape | Multicore | |
| Minimum Bend Radius | 45 mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand SICK | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Length 10m | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 1 M8 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP67 | ||
Insulation Material PUR | ||
Oil Resistant Yes | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 4.5mm | ||
Connector 1 Housing Gender Female | ||
Cable Shape Multicore | ||
Minimum Bend Radius 45 mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CZ
Connectivity for zones with oils, coolants, or lubricants
Feature & Benefits
High resistance to oils, coolants and lubricants
Good wear resistance
Suitable for drag chains
Resistant to microbes and hydrolysis
Flame resistant and self extinguishing
Free of paint wetting impairment substances (➜ PWIS free)
Silicone free
Halogen free
UL approval
Good wear resistance
Suitable for drag chains
Resistant to microbes and hydrolysis
Flame resistant and self extinguishing
Free of paint wetting impairment substances (➜ PWIS free)
Silicone free
Halogen free
UL approval
