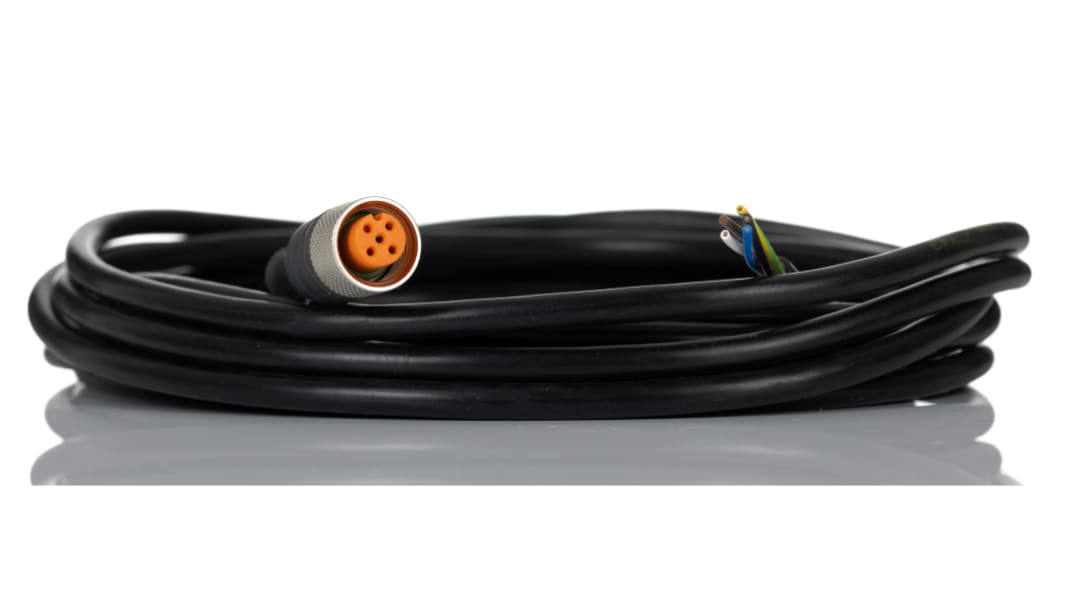

Lumberg Automation Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m

RS Stock No.:: 197-2839
Mfr. Part No.:: 51488 RKT 5-289/5 M
Brand:: Lumberg Automation

Lumberg Automation Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m

Subtotal (1 unit)*

£18.35

(exc. VAT)

£22.02

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 30 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£18.35

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 197-2839
Mfr. Part No.:: 51488 RKT 5-289/5 M
Brand:: Lumberg Automation

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lumberg Automation
	Series	RKT
	Number of Cores	5
	Sheath Colour	Black
	Length	5m
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	5
	Connector 1 Gender	Female
	Connector 1	M12
	Connector 2	Unterminated
	Coding	A
	Shielded/Unshielded	Unshielded
	Shielding	Unshielded
	Current Rating	4 A
	Voltage Rating	60 V
	IP Rating	IP65, IP67
	Oil Resistant	Yes
	Operating Temperature Range	-40 → +90 °C
	Standards Met	UL 94 HB
	Maximum Operating Temperature	+90°C
	Conductor Material	Copper
	Conductor Resistance	= 10 mΩ
	Minimum Bend Radius	? 5 x D
	Insulation Material	PVC
	Minimum Operating Temperature	-40°C
	Cable Shape	Round

	Select all
	Brand Lumberg Automation
	Series RKT
	Number of Cores 5
	Sheath Colour Black
	Length 5m
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 5
	Connector 1 Gender Female
	Connector 1 M12
	Connector 2 Unterminated
	Coding A
	Shielded/Unshielded Unshielded
	Shielding Unshielded
	Current Rating 4 A
	Voltage Rating 60 V
	IP Rating IP65, IP67
	Oil Resistant Yes
	Operating Temperature Range -40 → +90 °C
	Standards Met UL 94 HB
	Maximum Operating Temperature +90°C
	Conductor Material Copper
	Conductor Resistance = 10 mΩ
	Minimum Bend Radius ? 5 x D
	Insulation Material PVC
	Minimum Operating Temperature -40°C
	Cable Shape Round

COO (Country of Origin):: CZ

Belden Lumberg Automation Sensor Actuator Cable, 5m Length, 1.5kV Rated Impulse Withstand Voltage - RKT Series - 51488 RKT 5-289/5 M

Need on-point communication in your industrial processes? Trust this sensor actuator cable from Belden Lumberg Automation to transmit reliable signals between sensing and control devices. It features one female M12 connector with a coupling nut to get a firm grip on the plug, preventing disconnections and downtime. The other end is unterminated, so you can customise it with the connector of your choice. As the cable's self-extinguishing, it's a safe bet for boosting workplace safety.

Features & Benefits

• Length of 5m for a flexible connection
• Wide operating temperature range between -40°C and +90°C
• IP67 rating means it's dust-tight and withstands submersion in 1m of water for up to 30 minutes

Applications

• Industrial automation
• Medical equipment
• Food and beverage processing

What's the current rating of this cable?

It has a current rating of 4A, so it's just what you need for a low-power setup.
