Lumberg Automation Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m

RS Stock No.:: 197-2786
Mfr. Part No.:: 51487 RKT 5-289/2 M
Brand:: Lumberg Automation

Lumberg Automation Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m

Subtotal (1 unit)*

£13.09

(exc. VAT)

£15.71

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

20 unit(s) shipping from 28 November 2025
Plus 50 unit(s) shipping from 05 December 2025
Plus 10 unit(s) shipping from 26 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£13.09

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 197-2786
Mfr. Part No.:: 51487 RKT 5-289/2 M
Brand:: Lumberg Automation

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lumberg Automation
	Series	RKT
	Cross Sectional Area	0.34 mm²
	Number of Cores	5
	Sheath Material	Polyvinyl Chloride PVC
	Length	2m
	Sheath Colour	Black
	Connector 1 Gender	Female
	Connector 1 Number of Contacts	5
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 2	Unterminated
	Coding	A
	Shielded/Unshielded	Unshielded
	Voltage Rating	60 V
	Current Rating	4 A
	IP Rating	IP65, IP67
	Connector 1 Housing Gender	Female
	Maximum Operating Temperature	+90°C
	Oil Resistant	Yes
	Standards Met	UL
	Outer Diameter	5.5mm
	Operating Temperature Range	-40 → +90 °C
	Insulation Material	PVC
	Minimum Bend Radius	5 x D
	Conductor Material	Copper
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lumberg Automation
	Series RKT
	Cross Sectional Area 0.34 mm²
	Number of Cores 5
	Sheath Material Polyvinyl Chloride PVC
	Length 2m
	Sheath Colour Black
	Connector 1 Gender Female
	Connector 1 Number of Contacts 5
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 2 Unterminated
	Coding A
	Shielded/Unshielded Unshielded
	Voltage Rating 60 V
	Current Rating 4 A
	IP Rating IP65, IP67
	Connector 1 Housing Gender Female
	Maximum Operating Temperature +90°C
	Oil Resistant Yes
	Standards Met UL
	Outer Diameter 5.5mm
	Operating Temperature Range -40 → +90 °C
	Insulation Material PVC
	Minimum Bend Radius 5 x D
	Conductor Material Copper
	Minimum Operating Temperature -40°C

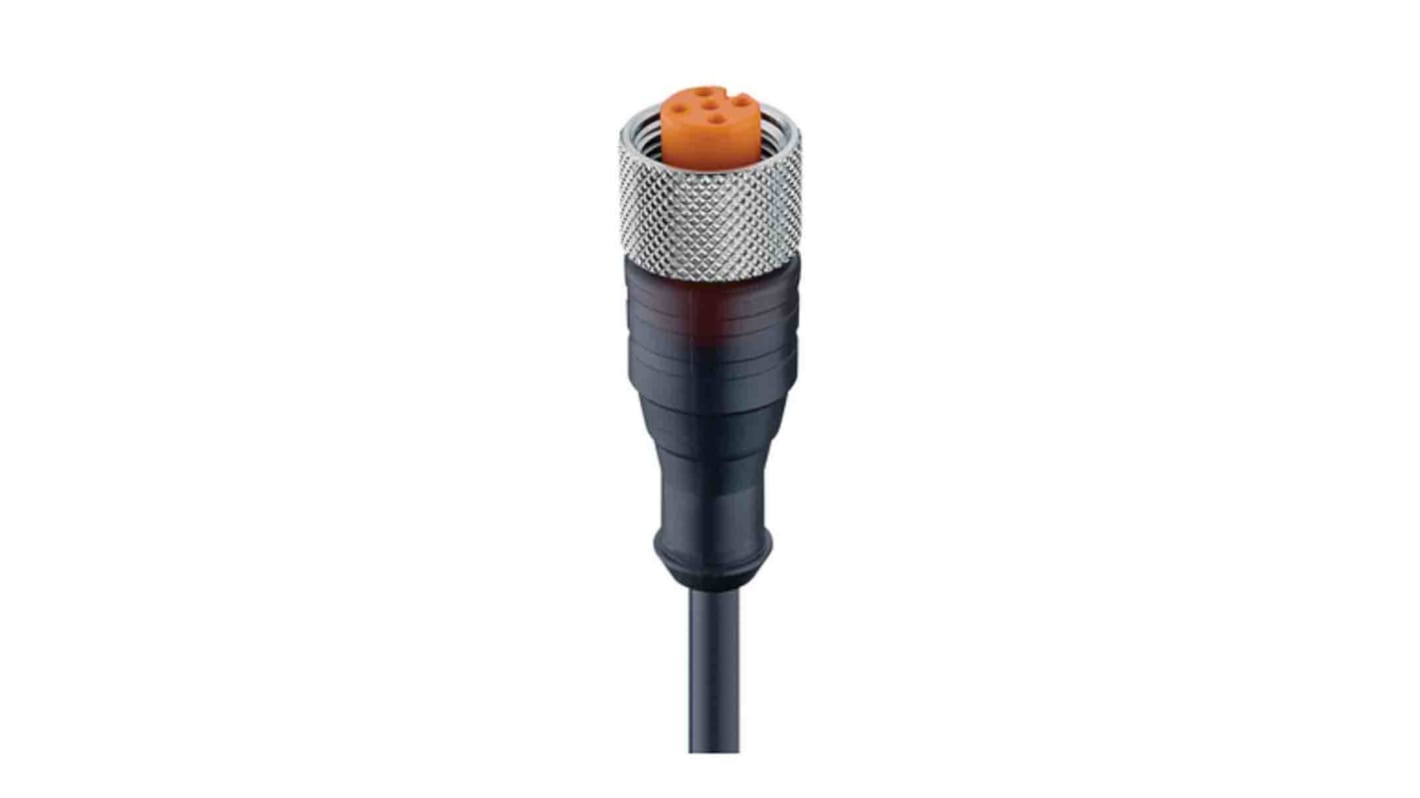

Lumberg Automation RKT Series Sensor Actuator Cable, 2m Length, 5 Cores - 51487 RKT 5-289/2 M

This sensor actuator cable by Lumberg Automation is a high-quality industrial cable designed for various automation applications. With a length of 2 metres and a 5-pin configuration, this straight orientation cable is ideal for use in high-traffic environments.

Features & Benefits

• Female connector with 5 pins for seamless sensor and actuator connection
• A-coded design for reliable signal transmission
• Translucent body for easy identification and troubleshooting
• PVC black cable with 5-wires, ensuring durability and flexibility
• Rated for 50 V AC / 60 V DC and 4 A, suitable for industrial environments

Applications

• Ideal for use in sensor and actuator installations in industrial automation
• Suitable for connecting sensors and actuators in high-traffic areas
• Can be used for use in machinery and equipment that require reliable signal transmission

Can it support high-voltage applications?

Yes, it is rated for 50 V AC / 60 V DC, making it suitable for high-voltage environments.

Will it work with other Lumberg Automation connectors?

Yes, the cable is designed to work seamlessly with other Lumberg Automation connectors for a reliable connection.

Is it suitable for use in outdoor environments?

The sensor actuator cable is built to withstand various environmental conditions, making it suitable for outdoor use as well.
