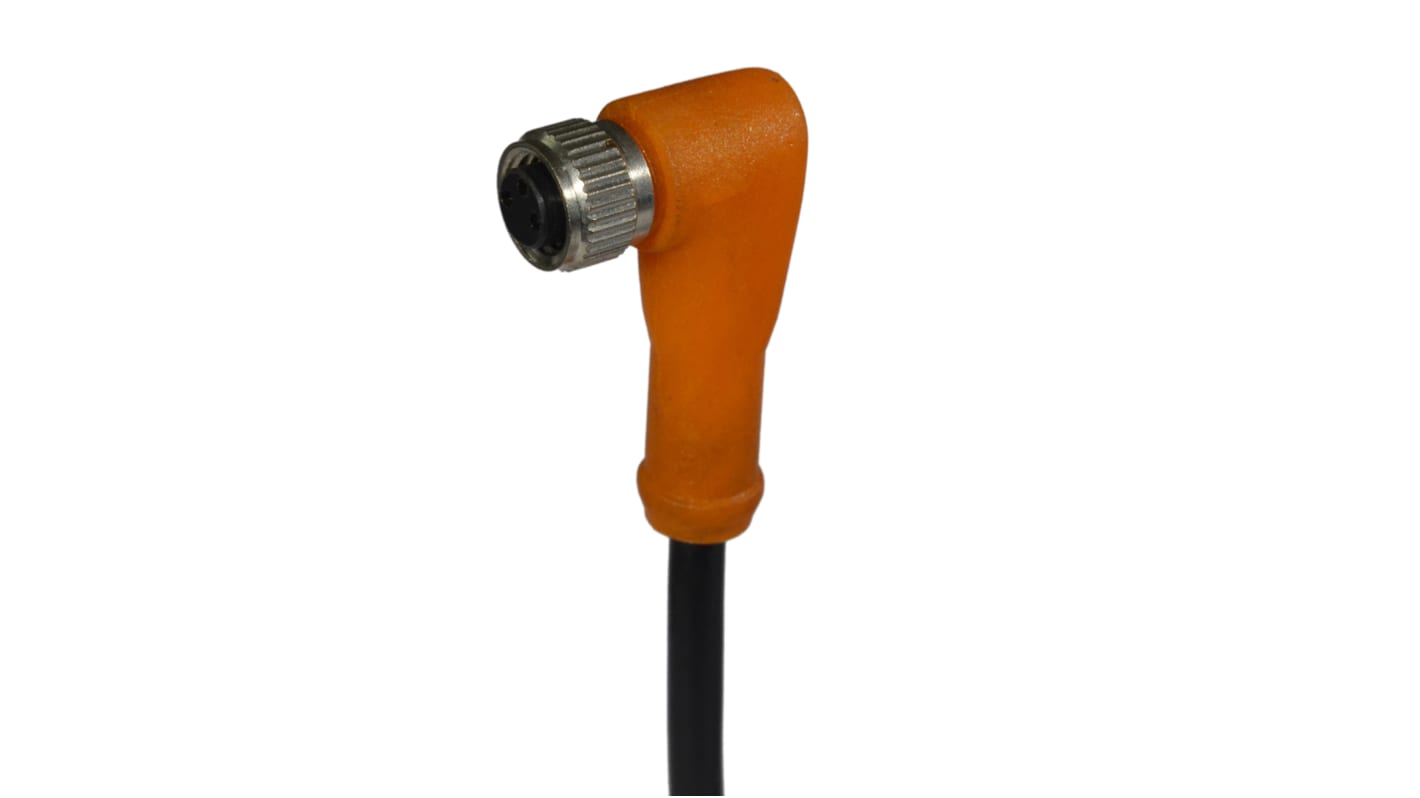

RS PRO Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m

RS Stock No.:: 186-3114
Brand:: RS PRO

RS PRO Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m

21 In stock - FREE next working day delivery available

Added

Price Each

£18.54

(exc. VAT)

£22.25

(inc. VAT)

Units	Per unit
1 - 9	£18.54
10 - 24	£17.43
25 - 49	£16.37
50 +	£15.08

RS Stock No.:: 186-3114
Brand:: RS PRO

Technical Reference

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

RS PRO Cable Connector

The RS PRO M8 female right-angled cable connector has a voltage rating of 30V and a current rating of 4A. It has zinc copper alloy gold plated contacts and a high degree of environmental protection. This connector is left unterminated and is partially stripped at one end. It is fitted with a secure coupling nut and hence is an ideal solution for secure and reliable data transfer.

Features and Benefits

• Cable length: 2m
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• LED status indicator
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 3 core PUR multi strand
• Cable diameter: 4.5± 0.1mm

Applications

• Sensor
• Automation equipment
• Industrial use

Certifications

• IP67 rated
• CE certified
• TUV certified

Specifications

Attribute	Value
Number of Cores	3
Cross Sectional Area	0.34 mm²
Sheath Colour	Black
Sheath Material	PUR
Length	2m
Connector 1	M8
Connector 1 Gender	Female
Connector 1 Number of Contacts	3
Connector 1 Orientation	Right Angle
Connector 2	Unterminated
Current Rating	4 A
Voltage Rating	30 V
IP Rating	IP67
Cable Shape	Multicore
Operating Temperature Range	-25 → +75 °C
Connector 1 Housing Gender	Female
Outer Diameter	4.5mm
American Wire Gauge	22 AWG
