RS PRO Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 186-3102
- Brand:
- RS PRO
38 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.58
(exc. VAT)
£12.70
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.58 |
| 10 - 24 | £9.94 |
| 25 - 49 | £9.36 |
| 50 + | £8.60 |
- RS Stock No.:
- 186-3102
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

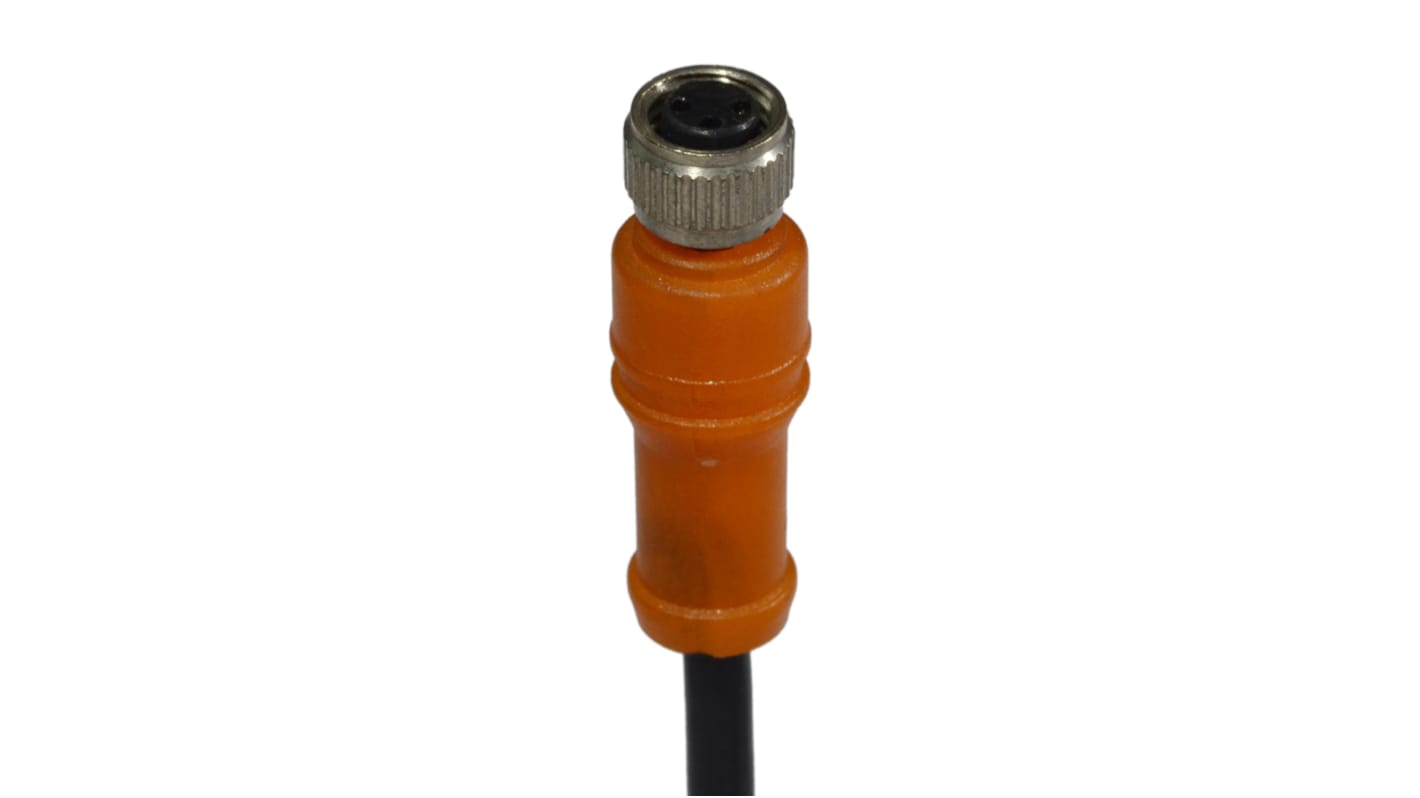

RS PRO Connector Assembly
The RS PRO pre-wired connector assembly has a straight orientation and M8 female connection with 3 core PVC multi-strand cable. This connector’s voltage rating is 30V and the current rating is up to 4A per contact. The connector grip body is made from polyurethane with brass nickel plated coupling nut and neoprene O-ring.
Features and Benefits
• Cable length is 2m
• Insulation resistance is greater than or equal to 100Mohm
• PNP output type
• Status indicator
• Un-terminated and partially stripped wire
• Insulation resistance is greater than or equal to 100Mohm
• PNP output type
• Status indicator
• Un-terminated and partially stripped wire
Applications
• Automation and sensor equipment
• Industrial machinery
• Industrial machinery
Certifications
• IP67 rated
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 3 |
| Length | 2m |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 1 | M8 |
| Connector 2 | Unterminated |
| Coding | A |
| Voltage Rating | 30 V |
| Current Rating | 4 A |
| IP Rating | IP67 |
| Cable Shape | Multicore |
| Connector 1 Housing Gender | Female |
| American Wire Gauge | 23 AWG |
| Operating Temperature Range | -25 → +75 °C |
| Outer Diameter | 4.4mm |
