RS PRO Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£14.33

(exc. VAT)

£17.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 22 unit(s) shipping from 23 October 2025
  • Plus 10 unit(s) shipping from 23 October 2025
  • Plus 32 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£14.33
10 - 24£13.47
25 - 49£12.66
50 +£11.64

*price indicative

Sensor & Actuator cables to Sensor Accessories
Complete Your Connection with the Right Accessories
Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.
Shop Now
RS Stock No.:
186-3128
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Cores

3

Cross Sectional Area

0.34 mm²

Sheath Colour

Black

Sheath Material

PUR

Length

2m

Connector 1 Gender

Female

Connector 1 Orientation

Straight

Connector 1 Number of Contacts

3

Connector 1

M8

Connector 2

Unterminated

Voltage Rating

60 V

Current Rating

4 A

IP Rating

IP67

Operating Temperature Range

-25 → +75 °C

Connector 1 Housing Gender

Female

Outer Diameter

4.5mm

American Wire Gauge

22 AWG

Cable Shape

Multicore

COO (Country of Origin):
IN

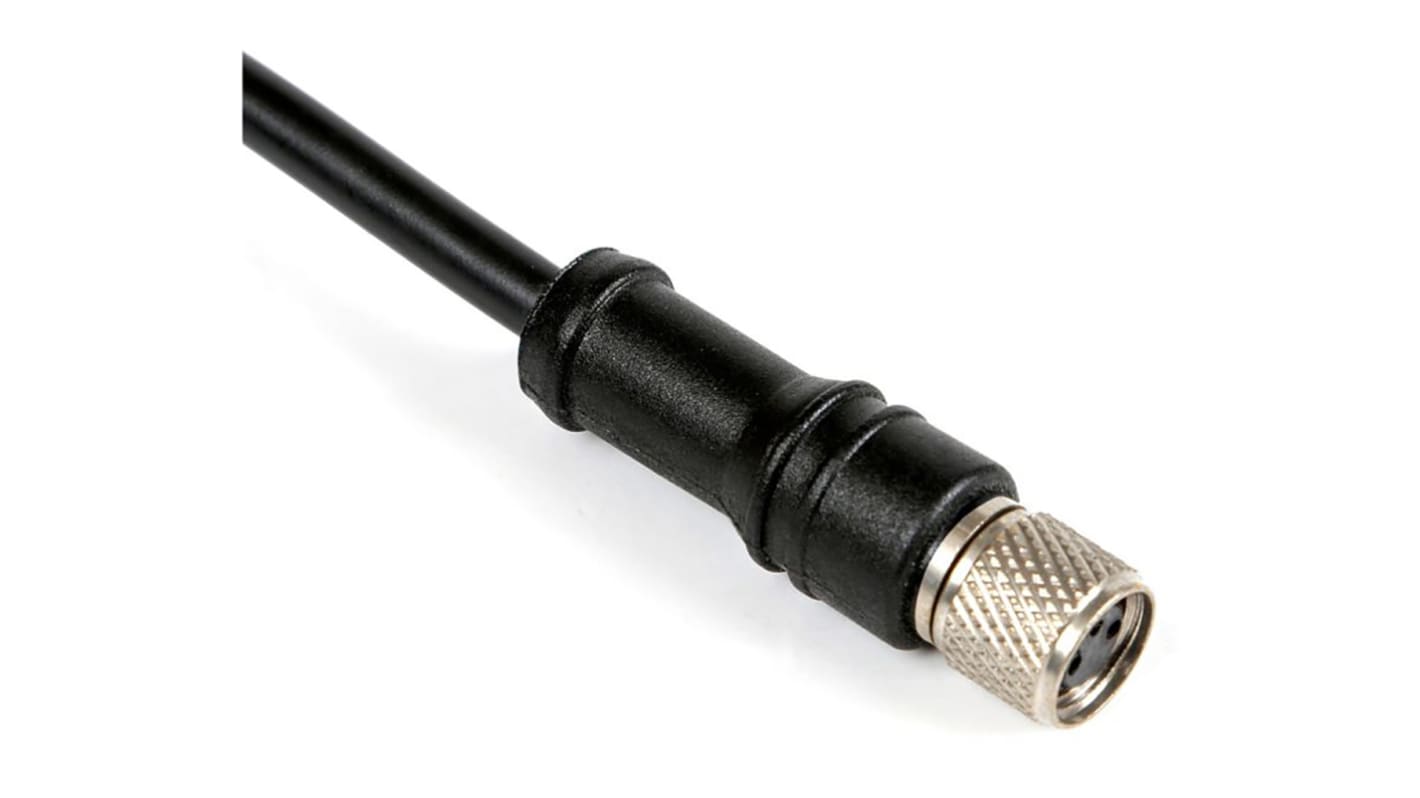

RS PRO Cable Connector


The RS PRO M8 female straight cable connector has a voltage rating of 60V and a current rating of 4A. It has zinc copper alloy gold plated contacts and a high degree of environmental protection. This connector is left unterminated and is partially stripped at one end. It is fitted with a secure coupling nut and hence is an ideal solution for secure and reliable data transfer.

Features and Benefits


• Cable length: 2m
• Insulation resistance: Greater than or equal to 100MΩ
• Neoprene O-ring
• Brass nickel-plated coupling nut
• Operating temperature ranges between -25℃ and 75℃
• Jacket material: 3 core PUR multi strand
• Cable diameter: 4.5 ± 0.1mm

Applications


• Sensor
• Automation equipment
• Industrial use

Certifications


• IP67 rated
• CE certified
• TUV certified
