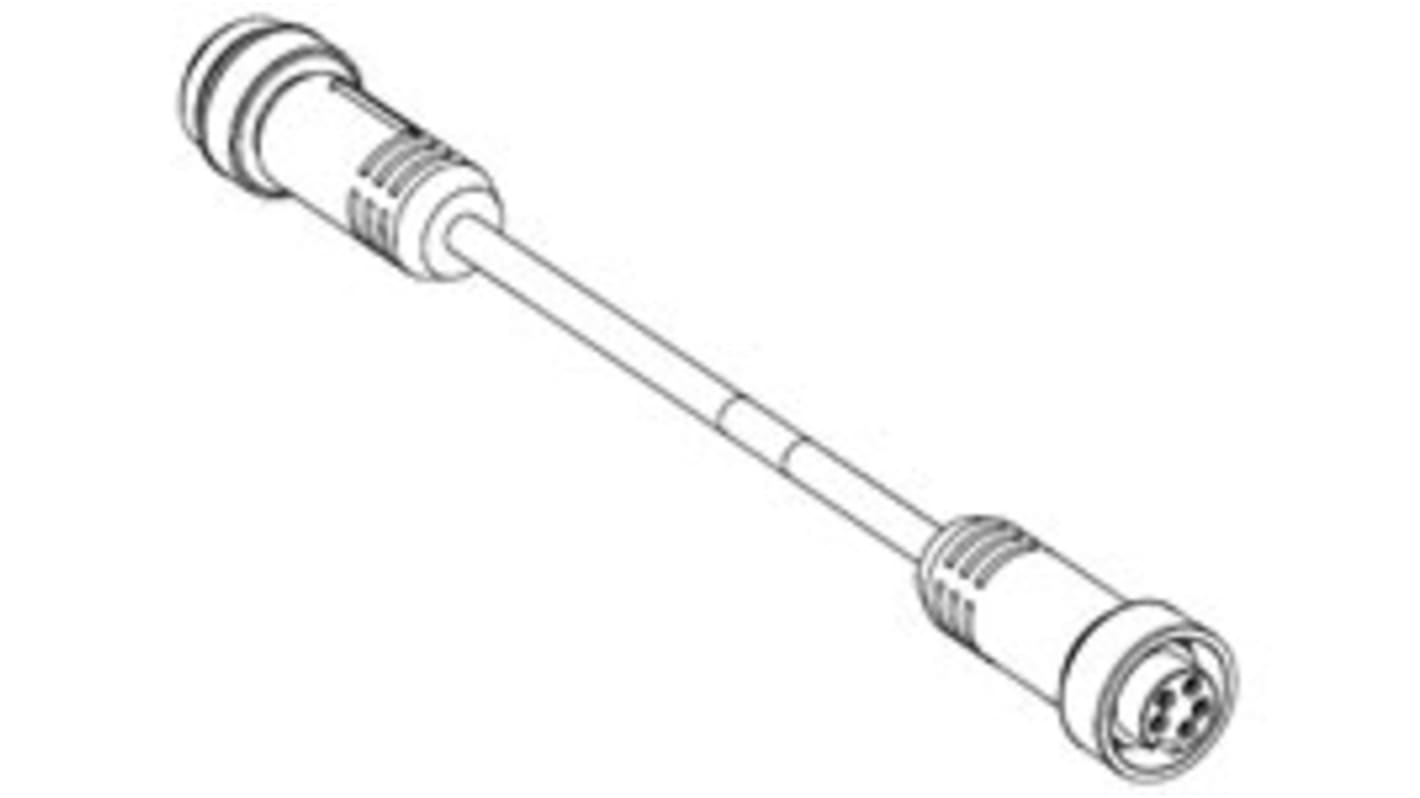

Molex Straight Female 4 way 7/8 in Circular to Straight Male 4 way 7/8 in Circular Sensor Actuator Cable, 8m
- RS Stock No.:
- 174-6524
- Mfr. Part No.:
- 130010-0871
- Brand:
- Molex
Subtotal (1 unit)*
£97.73
(exc. VAT)
£117.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £97.73 |
*price indicative
- RS Stock No.:
- 174-6524
- Mfr. Part No.:
- 130010-0871
- Brand:
- Molex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 130010 | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 4 | |
| Sheath Material | TPE | |
| Length | 8m | |
| Sheath Colour | Yellow | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | 7/8 in Circular | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 Orientation | Straight | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Connector 2 | 7/8 in Circular | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 600 V | |
| Current Rating | 10 A | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Cable Shape | Multicore | |
| Standards Met | IEC 60664, UL 2238 | |
| Maximum Operating Temperature | +105°C | |
| American Wire Gauge | 16 AWG | |
| Operating Temperature Range | -25 → +105 °C | |
| Connector 1 Housing Gender | Female | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series 130010 | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 4 | ||
Sheath Material TPE | ||
Length 8m | ||
Sheath Colour Yellow | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 7/8 in Circular | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Male | ||
Connector 2 7/8 in Circular | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 600 V | ||
Current Rating 10 A | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Cable Shape Multicore | ||
Standards Met IEC 60664, UL 2238 | ||
Maximum Operating Temperature +105°C | ||
American Wire Gauge 16 AWG | ||
Operating Temperature Range -25 → +105 °C | ||
Connector 1 Housing Gender Female | ||
