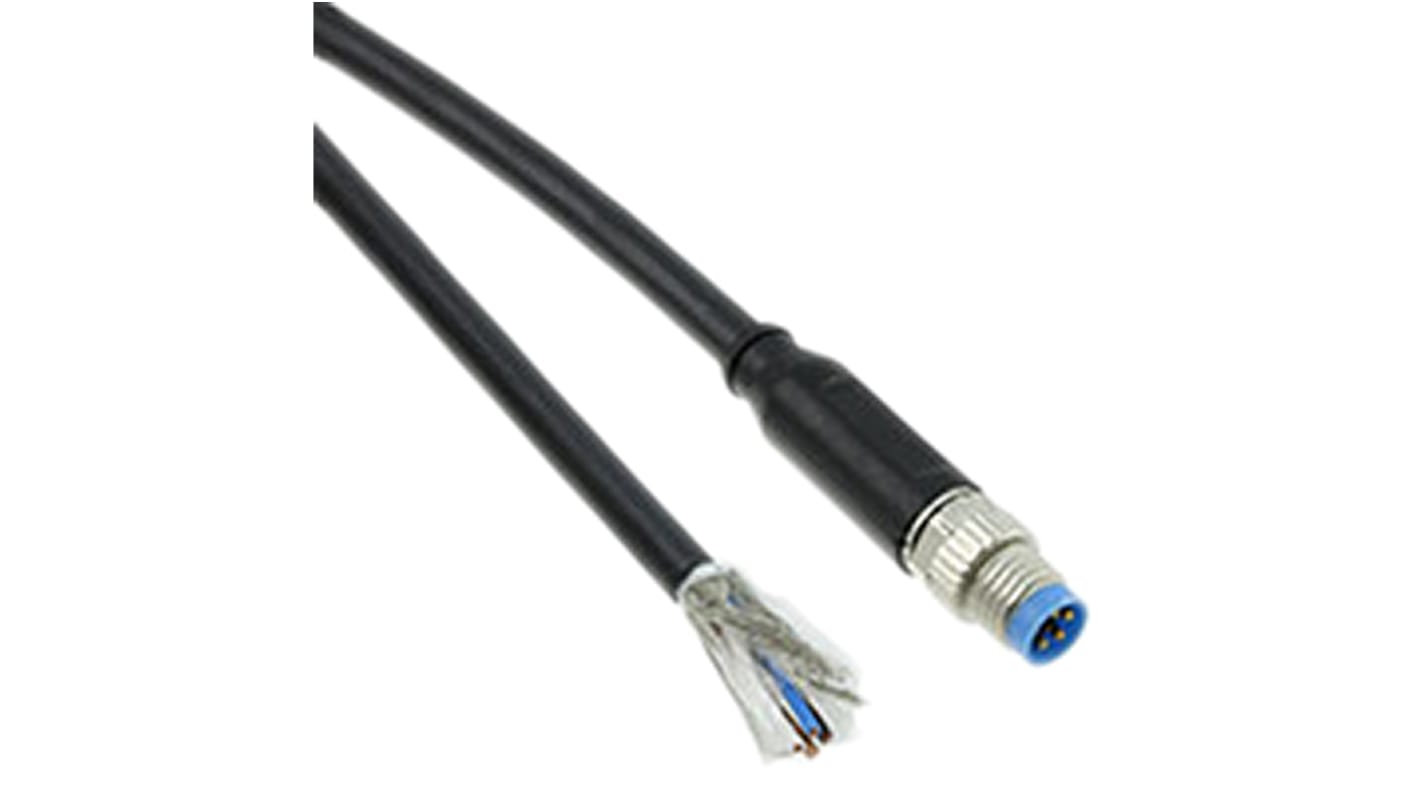

TE Connectivity Straight Male 4 way M8 to Unterminated Sensor Actuator Cable, 1.5m

View all Sensor & Actuator Cables

Subtotal (1 box of 25 units)*

£642.65

(exc. VAT)

£771.175

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
25 +£25.706£642.65

*price indicative

RS Stock No.:
164-6557
Mfr. Part No.:
2273006-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Cross Sectional Area

0.34 mm²

Number of Cores

4

Sheath Colour

Black

Sheath Material

PUR

Length

1.5m

Connector 1 Number of Contacts

4

Connector 1 Orientation

Straight

Connector 1 Gender

Male

Connector 1

M8

Connector 2

Unterminated

Coding

A

Shielded/Unshielded

Shielded

Voltage Rating

30 V ac/dc

Current Rating

4 A

IP Rating

IP65, IP67

Connector 1 Housing Gender

Male

Operating Temperature Range

-40 → +80 °C

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

Cable Shape

Multicore

Standards Met

CSA, ELV Compliant, EN 60547, RoHS Compliant, UL

Outer Diameter

5.3mm

Minimum Bend Radius

53 mm

Insulation Material

PP

American Wire Gauge

22 AWG

COO (Country of Origin):
DE

M8 Pigtail Connector


From TE Connectivity, the M8 Pigtail Connector cable assembly is ideal for neat and secure connections in sensor and automation applications. With a screw terminal connection that offers a high degree of environmental protection this cable assembly is well suited to industrial purposes. The “pigtail” wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.

The TE Connectivity range of M8 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.

Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth

Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes
