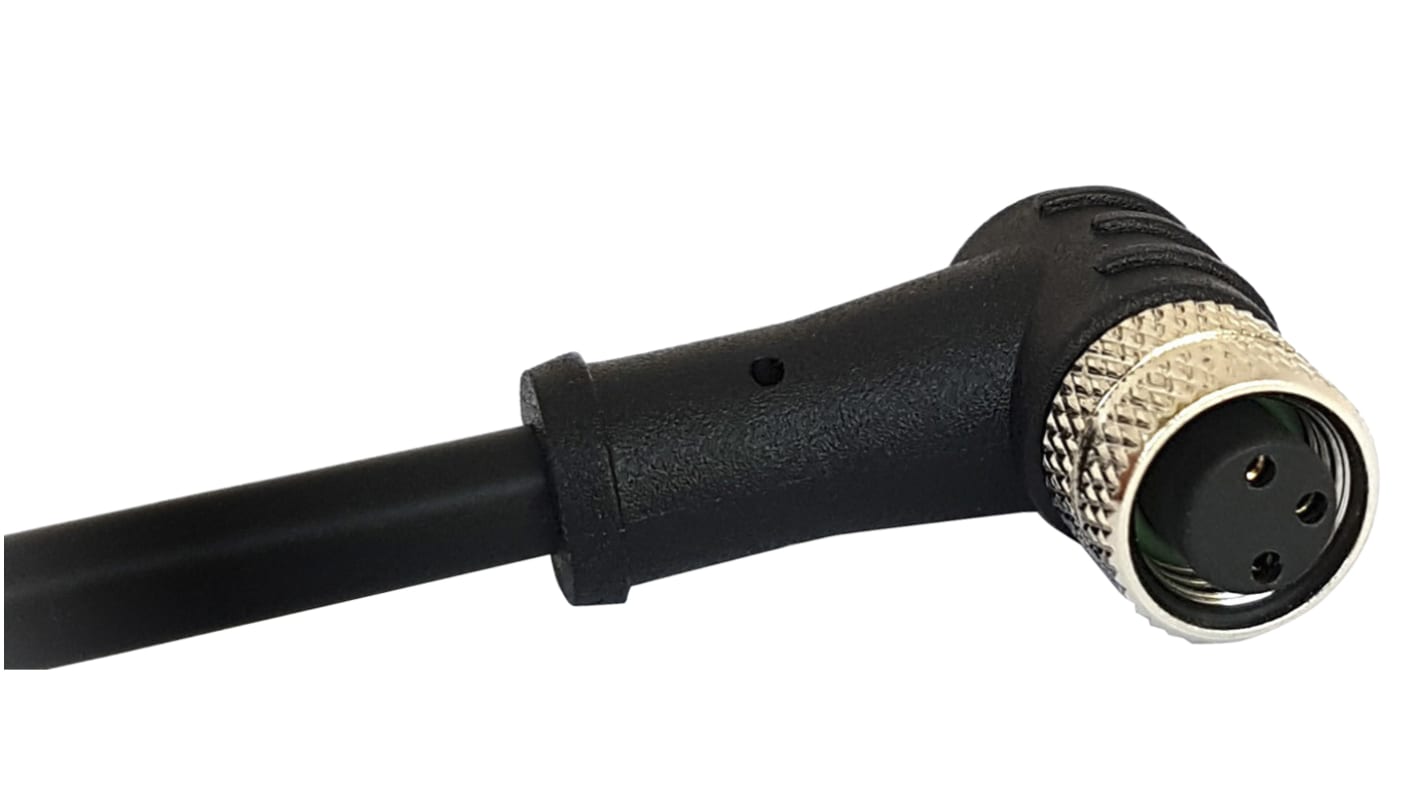

Bulgin Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6726
- Mfr. Part No.:
- PXPTPU08RAF03ACL010PUR
- Brand:
- Bulgin
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 144-6726
- Mfr. Part No.:
- PXPTPU08RAF03ACL010PUR
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M8 | |
| Number of Cores | 3 | |
| Sheath Colour | Black | |
| Sheath Material | PUR | |
| Length | 1m | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M8 | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 3 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP67 | |
| Conductor Resistance | <10 mΩ | |
| Outer Diameter | 3 → 3.5mm | |
| Conductor Material | Phosphor Bronze | |
| Operating Temperature Range | -25 → +80 °C | |
| Maximum Operating Temperature | +80°C | |
| Cable Shape | Single Core | |
| Connector 1 Housing Gender | Female | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M8 | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Sheath Material PUR | ||
Length 1m | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M8 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Current Rating 3 A | ||
Voltage Rating 60 V | ||
IP Rating IP67 | ||
Conductor Resistance <10 mΩ | ||
Outer Diameter 3 → 3.5mm | ||
Conductor Material Phosphor Bronze | ||
Operating Temperature Range -25 → +80 °C | ||
Maximum Operating Temperature +80°C | ||
Cable Shape Single Core | ||
Connector 1 Housing Gender Female | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN
Bulgin's M8 circular connectors and over molded cables are designed to fulfil the ever growing demand for sensor , actuator and data connections in process control, industrial machinery and factory automation applications. These compact sensor and automation connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency. Rated to the IP67 standard, Bulgin's M8 Series ensure safe, secure and reliable protection from liquids, dust, moisture and dirt whilst also providing great resistance against vibrations to ensure that connections are not disrupted.
Straight & right angled configurations
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m
M8 Right Angled Female
Available in 3, 4 and 5 poles
1, 2, 3, 5, 10 & 15M cable options
Over mold Flex Body
Mates with Flex Inline Body & panel mount connectors
1, 2, 3, 5, 10 & 15M cable options
Over mold Flex Body
Mates with Flex Inline Body & panel mount connectors
