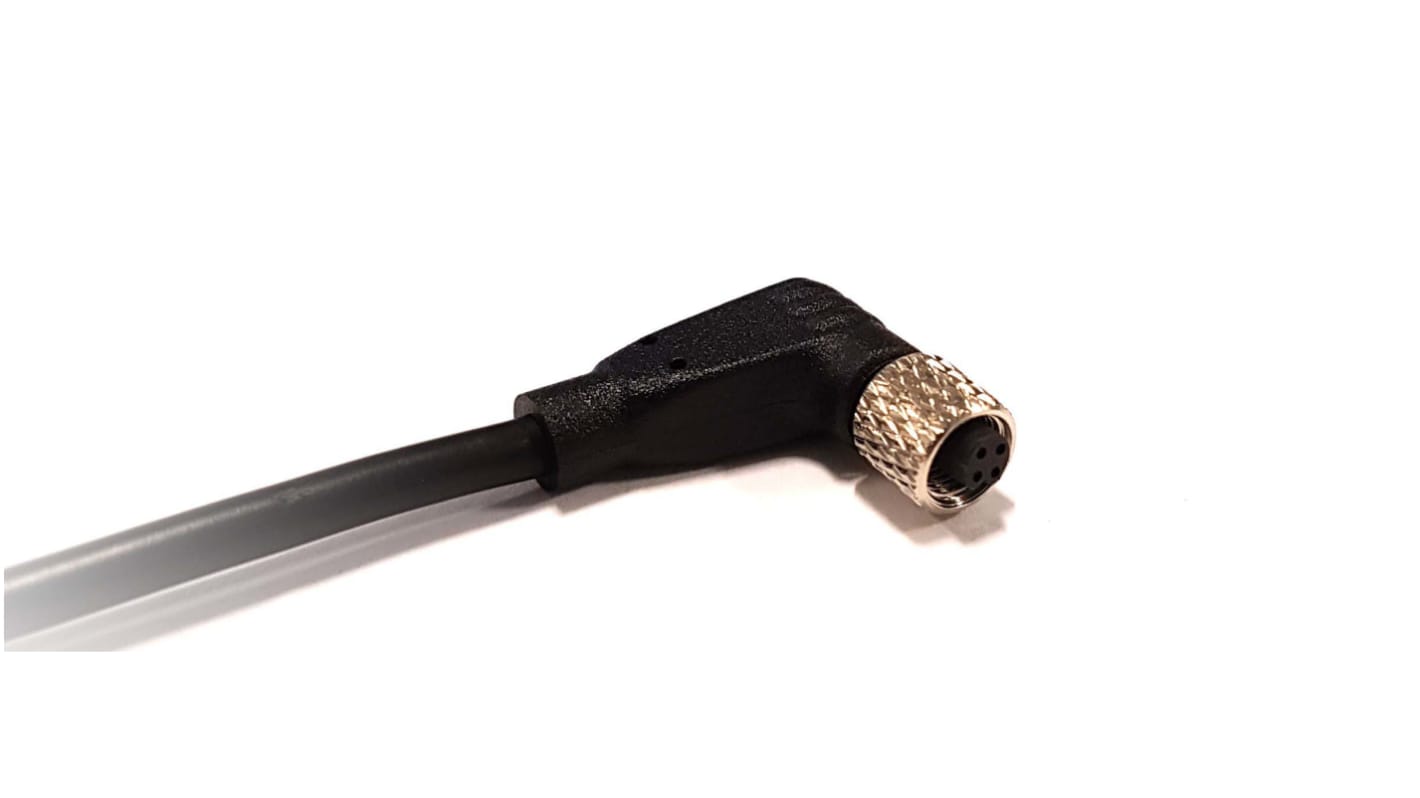

Bulgin Right Angle Female 3 way M5 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6677
- Distrelec Article No.:
- 303-26-779
- Mfr. Part No.:
- PXPPVC05RAF03ACL010PVC
- Brand:
- Bulgin
Save 19% when you buy 50 units
Subtotal (1 unit)*
£22.89
(exc. VAT)
£27.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £22.89 |
| 5 - 24 | £20.58 |
| 25 - 49 | £19.43 |
| 50 + | £18.33 |
*price indicative
- RS Stock No.:
- 144-6677
- Distrelec Article No.:
- 303-26-779
- Mfr. Part No.:
- PXPPVC05RAF03ACL010PVC
- Brand:
- Bulgin
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M5 | |
| Number of Cores | 3 | |
| Sheath Material | PUR | |
| Length | 1m | |
| Sheath Colour | Black | |
| Connector 1 | M5 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Gender | Female | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 1 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Cable Shape | Single Core | |
| Maximum Operating Temperature | +80°C | |
| Conductor Material | Phosphor Bronze | |
| Operating Temperature Range | -25 → +80 °C | |
| Connector 1 Housing Gender | Female | |
| Conductor Resistance | <10 mΩ | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M5 | ||
Number of Cores 3 | ||
Sheath Material PUR | ||
Length 1m | ||
Sheath Colour Black | ||
Connector 1 M5 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Female | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Current Rating 1 A | ||
Voltage Rating 60 V | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Cable Shape Single Core | ||
Maximum Operating Temperature +80°C | ||
Conductor Material Phosphor Bronze | ||
Operating Temperature Range -25 → +80 °C | ||
Connector 1 Housing Gender Female | ||
Conductor Resistance <10 mΩ | ||
