Phoenix Contact Male 3 way M12, Straight to 3 way Straight, Valve Connector Sensor Actuator Cable, 3 m
- RS Stock No.:
- 493-417
- Mfr. Part No.:
- 1400771
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£25.83
(exc. VAT)
£31.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.83 |
*price indicative
- RS Stock No.:
- 493-417
- Mfr. Part No.:
- 1400771
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Sensor Actuator Cable | |
| Cable Length | 3m | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Black, Grey | |
| Connector Gender A | Male | |
| Number of Contacts A | 3 | |
| Connector Type A | M12, Straight | |
| Number of Contacts B | 3 | |
| Connector Type B | Straight, Valve Connector | |
| Voltage | 24 V | |
| IP Rating | IP65, IP67 | |
| Standards/Approvals | CCSAUS, CHINA RoHS, CSA ID: 13631, CSAus ID: 13631, DIN VD0482, EAC-RoHS ID: RU D-DE.HB35.B.00387, EU REACH, EU RoHS, FmresistancDIN EN 50265-2-1, HalogEN frein accordanc DIN VD0472 part 815, partly UV-resistant (in accordanc DIN EN ISO 4892-2-A), Resistanc oil in accordanc DIN EN 60811-2-1 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Sensor Actuator Cable | ||
Cable Length 3m | ||
Jacket Material Polyurethane | ||
Jacket Colour Black, Grey | ||
Connector Gender A Male | ||
Number of Contacts A 3 | ||
Connector Type A M12, Straight | ||
Number of Contacts B 3 | ||
Connector Type B Straight, Valve Connector | ||
Voltage 24 V | ||
IP Rating IP65, IP67 | ||
Standards/Approvals CCSAUS, CHINA RoHS, CSA ID: 13631, CSAus ID: 13631, DIN VD0482, EAC-RoHS ID: RU D-DE.HB35.B.00387, EU REACH, EU RoHS, FmresistancDIN EN 50265-2-1, HalogEN frein accordanc DIN VD0472 part 815, partly UV-resistant (in accordanc DIN EN ISO 4892-2-A), Resistanc oil in accordanc DIN EN 60811-2-1 | ||
- COO (Country of Origin):
- PL

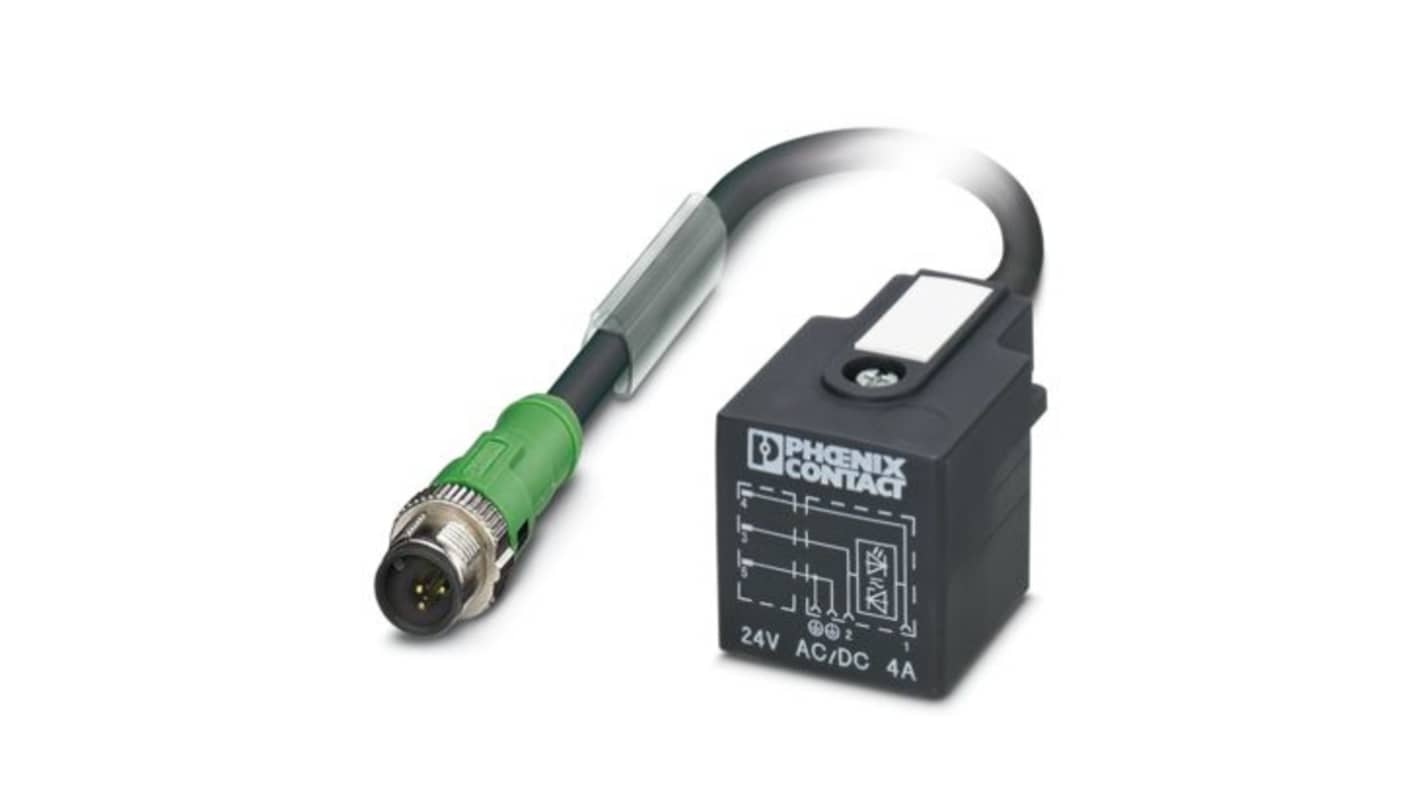

The Phoenix Contact sensor or actuator cable is a 3-position, halogen-free PUR cable in black-gray RAL 7021. It features a straight M12 plug with A coding and 1 LED on one end, and a valve connector A with 1 LED on the other. The wiring includes a Z diode. The cable has a length of 3 meters.
Flammability rating according to UL 94 HB
Seal material TPU
Material housing valve plug TPU
Material of grip body TPU
Contact material CuSn
Contact surface material Ni or Au
Contact carrier material TPU GF
Contact material CuSn
Valve plug contact insert material PA 6.6
Contact surface material Sn
