Phoenix Contact Straight Male 3 way M12 to Straight Valve Connector Sensor Actuator Cable, 1m
- RS Stock No.:
- 493-416
- Mfr. Part No.:
- 1400698
- Brand:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
£466.25
(exc. VAT)
£559.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £466.25 | £18.65 |
*price indicative
- RS Stock No.:
- 493-416
- Mfr. Part No.:
- 1400698
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Number of Cores | 3 | |
Cross Sectional Area | 3 x 0.5 mm² | |
Sheath Material | Polyurethane PUR | |
Sheath Colour | Black/Grey | |
Length | 1m | |
Connector 1 Orientation | Straight | |
Connector 1 Number of Contacts | 3 | |
Connector 1 Gender | Male | |
Connector 1 | M12 | |
Connector 2 | Valve Connector | |
Connector 2 Orientation | Straight | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 3 | ||
Cross Sectional Area 3 x 0.5 mm² | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Black/Grey | ||
Length 1m | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 2 Valve Connector | ||
Connector 2 Orientation Straight | ||
- COO (Country of Origin):
- PL

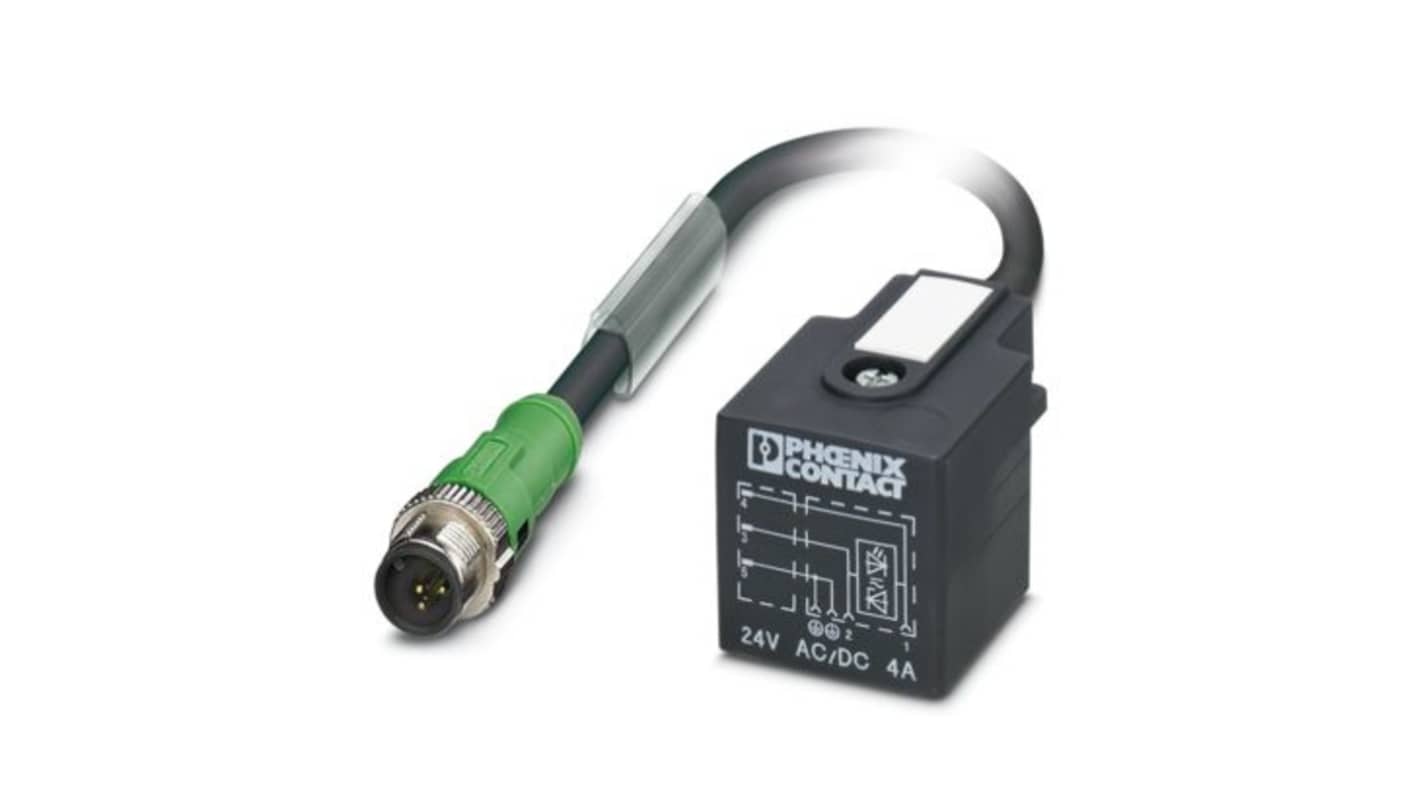

The Phoenix Contact sensor or actuator cable is a 3-position, halogen-free PUR cable in black-gray (RAL 7021). It features a straight M12 SPEEDCON plug with A coding on one end and a valve connector A with 1 LED and Z diode wiring on the other. The cable has a length of 1 meter.
Outer sheath and material PUR
External sheath and color black-gray RAL 7021
Conductor material Bare Cu litz wires
Material wire insulation PP
Overall twist 3 wires twisted
External sheath and color black-gray RAL 7021
Conductor material Bare Cu litz wires
Material wire insulation PP
Overall twist 3 wires twisted
