RS PRO Selector Switch - (on-on), Illuminated 2 Positions
- RS Stock No.:
- 877-1983
- Brand:
- RS PRO
Save 30% when you buy 100 units
Subtotal (1 unit)*
£25.02
(exc. VAT)
£30.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 100 unit(s) shipping from 27 January 2026
- Plus 999,999,881 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £25.02 |
10 - 24 | £22.41 |
25 - 49 | £20.76 |
50 - 99 | £18.74 |
100 + | £17.36 |
*price indicative
- RS Stock No.:
- 877-1983
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Positions | 2 | |
Contact Configuration | on-on | |
IP Rating | IP67 | |
Angle of Throw | 90° | |
Terminal Type | Quick Connect, Solder | |
Illuminated | Yes | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Positions 2 | ||
Contact Configuration on-on | ||
IP Rating IP67 | ||
Angle of Throw 90° | ||
Terminal Type Quick Connect, Solder | ||
Illuminated Yes | ||
- COO (Country of Origin):
- TW

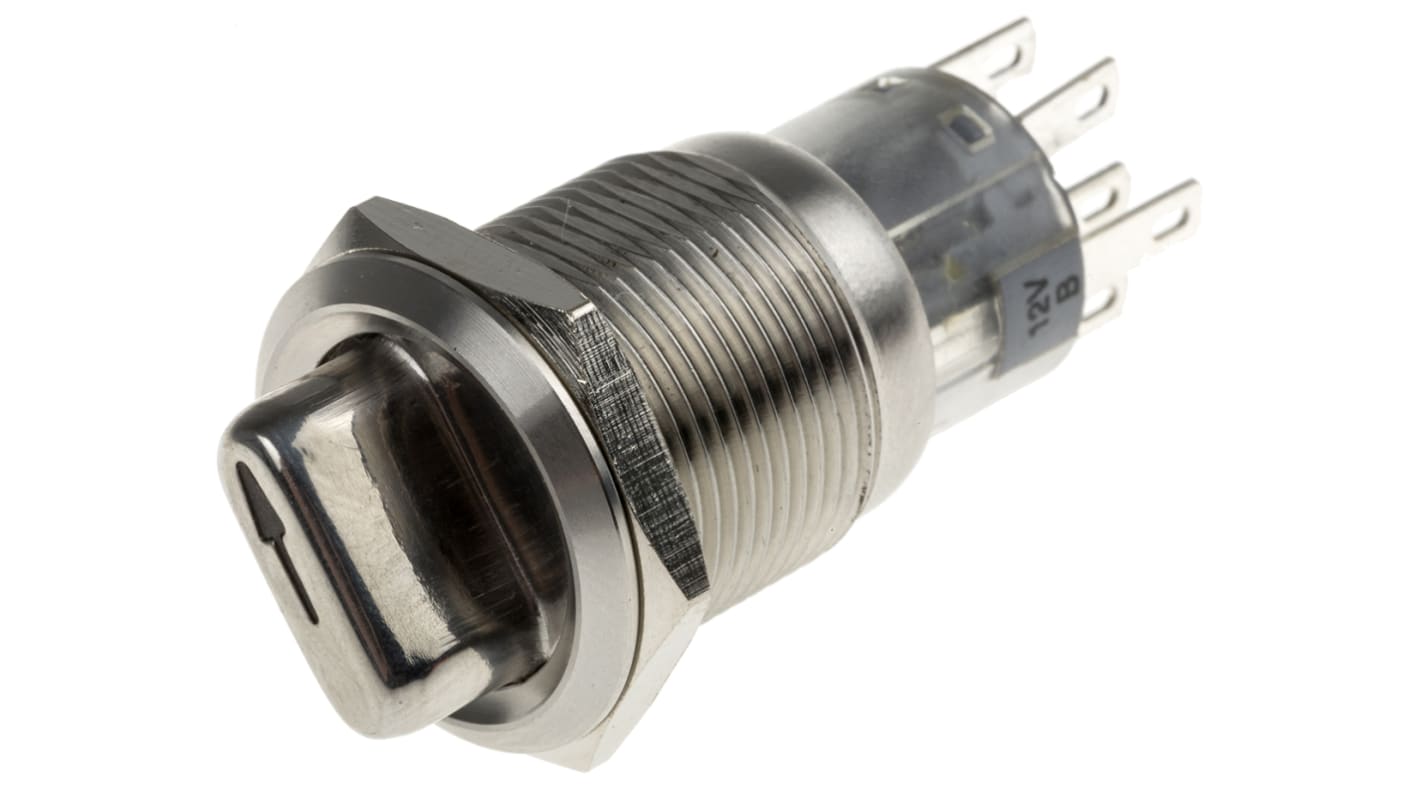

RS PRO 90° Rotary Switch, 2 Position On-On, 5 A at 250 V AC, Quick Connect, Solder
If you need a switch that's able to withstand daily use in public settings, choose this one from RS PRO. It has a body made of stainless steel and an IK02 impact resistance rating, so it's tough and able to withstand damage from vandalism. You can also safely use it indoors or outdoors in wet or dusty environments thanks to its IP67 rating.
This part requires little maintenance and is built to last as it has a mechanical lifespan of 50,000 cycles without load. To simplify operation, the switch face has a handy direction arrow so you can always be sure it's in the right position.
A panel sealing O-ring and nut are included with this switch, so it comes ready to install. This type of rotary switch is often used on vending, dispensing and self-service machines in public areas such as train stations and hospitals.
This part requires little maintenance and is built to last as it has a mechanical lifespan of 50,000 cycles without load. To simplify operation, the switch face has a handy direction arrow so you can always be sure it's in the right position.
A panel sealing O-ring and nut are included with this switch, so it comes ready to install. This type of rotary switch is often used on vending, dispensing and self-service machines in public areas such as train stations and hospitals.
Features and Benefits
- Blue actuator colour
- Angle of throw of 90°
- Stainless steel case material
- On-On contact configuration
- Contact current rating of 5 A at 250 V AC
- Silver contact material
- Dimensions of 39 (depth) x 22 mm (diameter)
- Illuminated
- Ingress Protection (IP) rating of IP67
- Operating temperature range of -20°C to +55°C
- Mechanical life of 50,000 cycles
- Mounting hole size of 19.2 mm
- Front panel mounting type
- Two switch positions
- Quick-connect, solder terminal type
- Voltage rating of 12 V
