RS PRO Selector Switch Selector Switch - (1 CO) 22 mm Cutout Diameter 2 Positions

View all Selector Switches

Subtotal (1 unit)*

£14.11

(exc. VAT)

£16.93

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 235 unit(s) ready to ship
  • Plus 29 unit(s) ready to ship from another location
  • Plus 25 unit(s) shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£14.11

*price indicative

RS Stock No.:
145-0622
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Positions

2

Product Type

Selector Switch

Actuator Type

Selector Switch

Contact Configuration

1 CO

IP Rating

IP20, IP65

Angle of Throw

45 °

Cutout Diameter

22mm

Terminal Type

Screw

Illuminated

No

Standards/Approvals

RoHS

Switch Operation

Stay Put

COO (Country of Origin):
IN

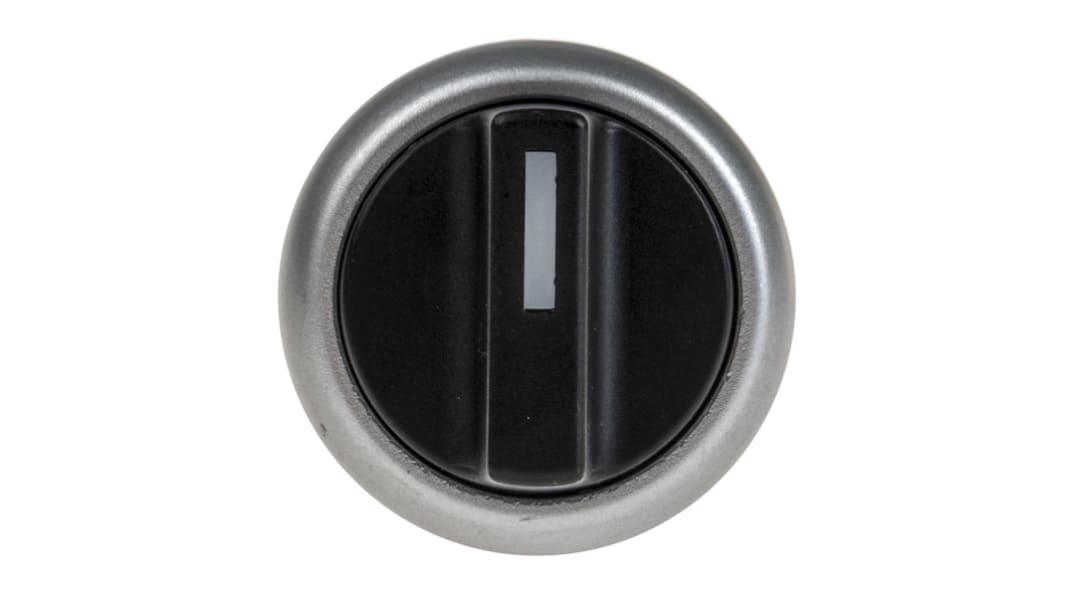

RS PRO 2 Position Selector Switch – (1RT) 22 mm Cutout Diameter


This RS PRO selector switch is a versatile two-position switch supplied in a complete contact block. It incorporates one SPNO (Single Pole Normally Open) and one SPNC (Single Pole Normally Closed) relay output type. You can see switches like this one used in a variety of applications in the automotive and construction industries.

The switch has a built-in contact block and features a chrome collar for added protection. The product has an Ingress Protection (IP) rating of IP65, which means it's protected from dust and low-pressure jets of water.

It's a panel mounting and screw terminal type of selector switch so you can easily connect it and mount it to your panel. It complies with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements to ensure the hazard of a discharge is minimised.

Features and Benefits


• Contact configuration of 1RT

• Cutout diameter of 22 mm

• Not illuminated

• IP (Ingress Protection) rating of IP65

• Maximum voltage of 230 V AC

• Maximum current of 6 A

• Two keys

• Two positions

• Stay put switch actuation

• Screw terminal type
