RS PRO Knob Selector Switch - (1NO), Illuminated 2 Positions
- RS Stock No.:
- 265-7663
- Brand:
- RS PRO
Subtotal (1 unit)*
£30.79
(exc. VAT)
£36.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £30.79 |
*price indicative
- RS Stock No.:
- 265-7663
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Positions | 2 | |
Selector Switch Type | Selector Switch Complete Unit | |
Actuator Type | Knob | |
Contact Configuration | 1NO | |
IP Rating | IP65 | |
Angle of Throw | 90° | |
Terminal Type | Screw | |
Illuminated | Yes | |
Colour | Black | |
Maximum AC Voltage | 690V | |
Maximum DC Voltage | 690V | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Positions 2 | ||
Selector Switch Type Selector Switch Complete Unit | ||
Actuator Type Knob | ||
Contact Configuration 1NO | ||
IP Rating IP65 | ||
Angle of Throw 90° | ||
Terminal Type Screw | ||
Illuminated Yes | ||
Colour Black | ||
Maximum AC Voltage 690V | ||
Maximum DC Voltage 690V | ||
- COO (Country of Origin):
- IT

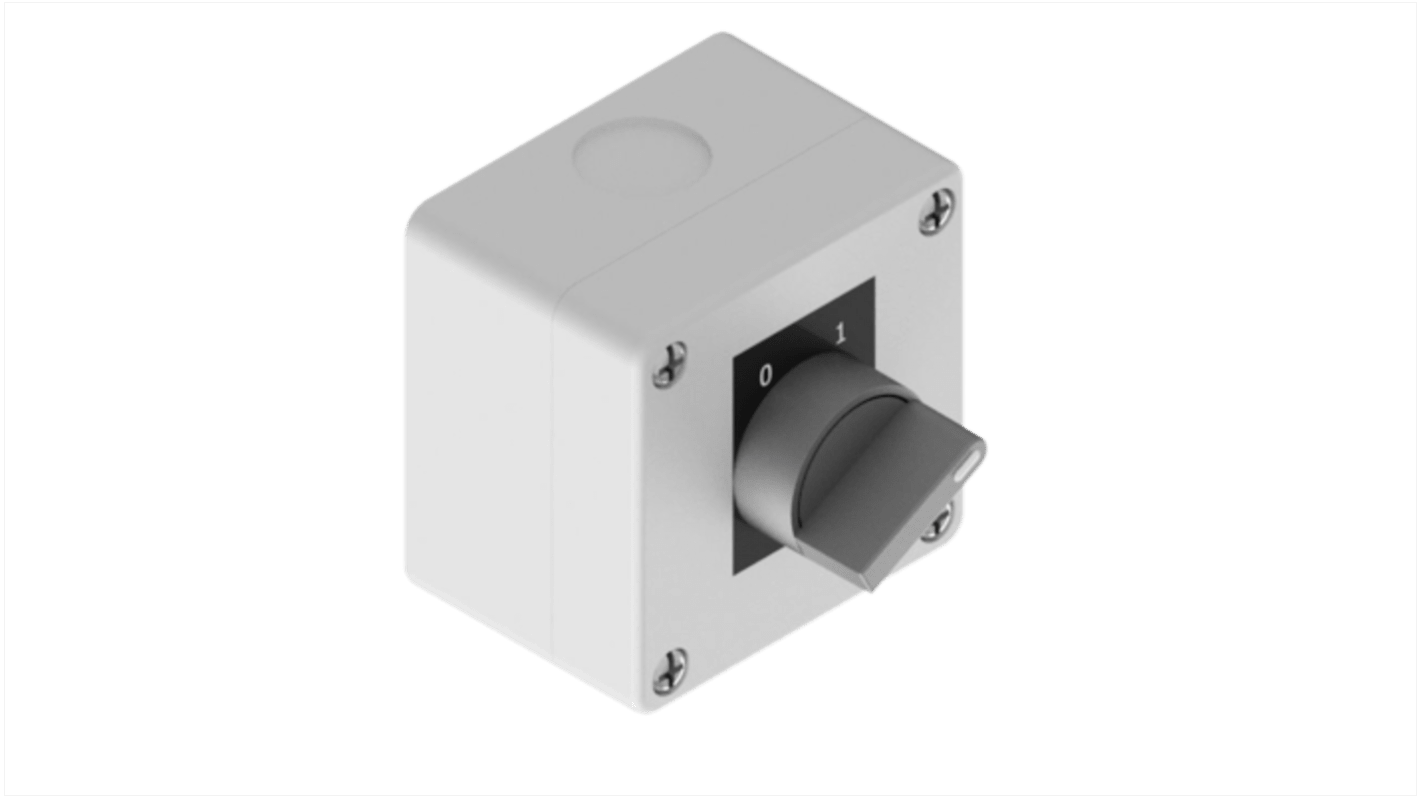

RS PRO 2 Position 1NO Enclosed Selector Switch Unit, 690V
A hardwearing and reliable 2 position enclosed selector switch marked with positions 1 and 0 featuring a 1NO configuration and Class II double insulation.
Constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 across the whole of the unit providing protection from dust and water. The selector switch module has enclosure dimensions of 70 x 70 x 54mm and features 2 x M20 knockouts enabling an easy and secure cable connection.
The 1NO selector switch unit is complete with short circuit protection, a wide operating temperature of -40 to 70°C and a long mechanical life of 1000000 operations. A tough and hardwearing enclosed selector switch perfect for industrial and commercial environments.
Constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 across the whole of the unit providing protection from dust and water. The selector switch module has enclosure dimensions of 70 x 70 x 54mm and features 2 x M20 knockouts enabling an easy and secure cable connection.
The 1NO selector switch unit is complete with short circuit protection, a wide operating temperature of -40 to 70°C and a long mechanical life of 1000000 operations. A tough and hardwearing enclosed selector switch perfect for industrial and commercial environments.
Features and Benefits
1NO selector switch
2 positions
Rated insulated voltage 690V
IP65 rated
Class II double insulation
Operating temperature of -40 to +70°C
1 million operations
Short circuit protection
Pollution degree 3
Thermoplastic case
Dimensions of 70 x 70 x 54mm
2 positions
Rated insulated voltage 690V
IP65 rated
Class II double insulation
Operating temperature of -40 to +70°C
1 million operations
Short circuit protection
Pollution degree 3
Thermoplastic case
Dimensions of 70 x 70 x 54mm
Approvals and Standards: CE/ UKCA, IEC 60947-1 and EN 60947-1
