Schneider Electric Selector Switch - (SPDT) 22 mm Cutout Diameter 3 Positions
- RS Stock No.:
- 276-2587
- Mfr. Part No.:
- XB5AK135B5C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£45.48
(exc. VAT)
£54.58
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.48 |
*price indicative
- RS Stock No.:
- 276-2587
- Mfr. Part No.:
- XB5AK135B5C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Selector Switch | |
| Number of Positions | 3 | |
| Contact Configuration | SPDT | |
| Housing Material | Plastic, Silver Alloy | |
| IP Rating | IP67, IP66 | |
| Angle of Throw | 45 ° | |
| Series | Harmony XB5 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Width | 30 mm | |
| Standards/Approvals | DNV, UL, JIS C8201-1, IEC 60947-5-4, LROS (Lloyds register of shipping), EU RoHS Directive, GL, REACh Regulation, IEC 60947-1, BV, CSA C22.2 No 14, IEC 60947-5-1, UL 508, CSA, JIS C8201-5-1 | |
| Depth | 70mm | |
| Height | 42mm | |
| Switch Operation | Stay Put | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Selector Switch | ||
Number of Positions 3 | ||
Contact Configuration SPDT | ||
Housing Material Plastic, Silver Alloy | ||
IP Rating IP67, IP66 | ||
Angle of Throw 45 ° | ||
Series Harmony XB5 | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Width 30 mm | ||
Standards/Approvals DNV, UL, JIS C8201-1, IEC 60947-5-4, LROS (Lloyds register of shipping), EU RoHS Directive, GL, REACh Regulation, IEC 60947-1, BV, CSA C22.2 No 14, IEC 60947-5-1, UL 508, CSA, JIS C8201-5-1 | ||
Depth 70mm | ||
Height 42mm | ||
Switch Operation Stay Put | ||
Hazardous Area Certification No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

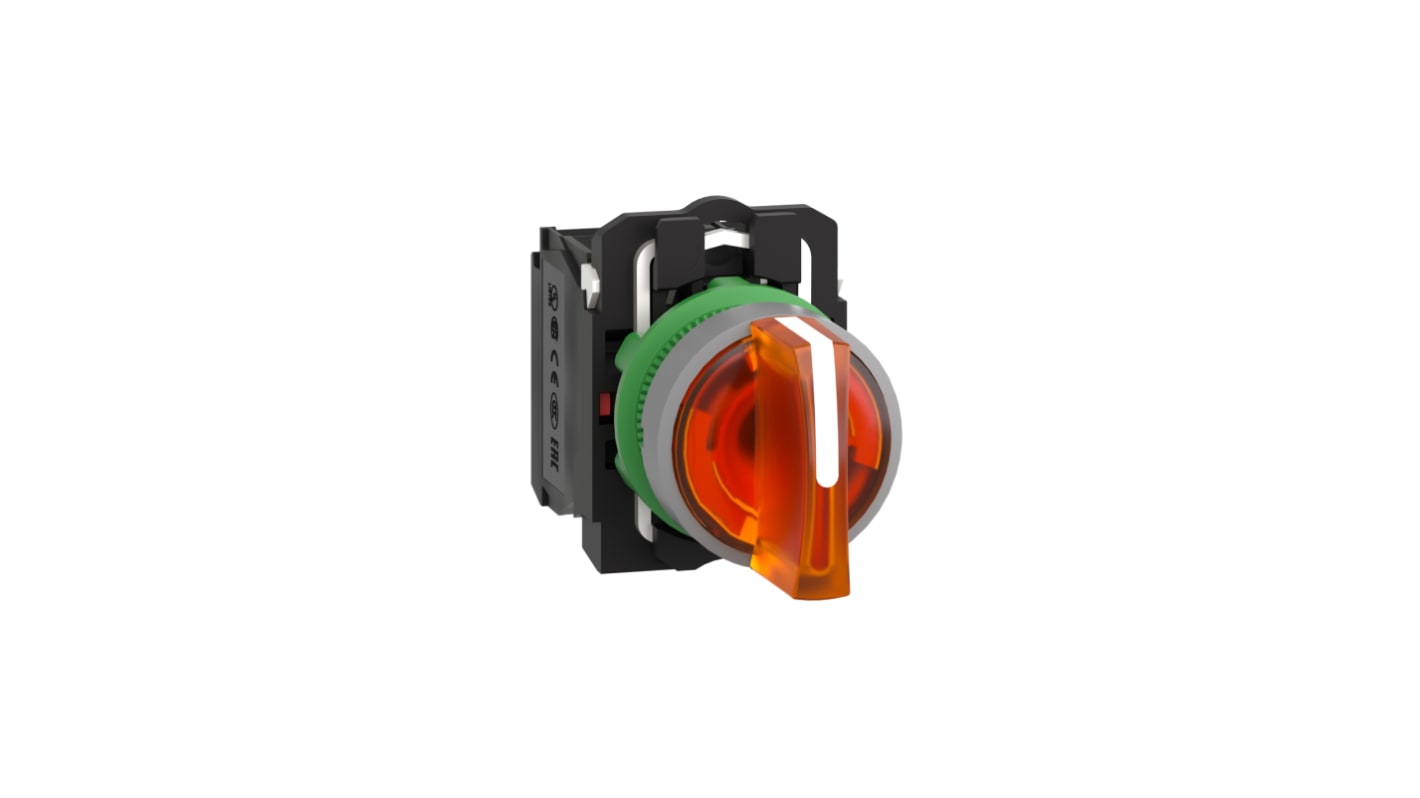

The Schneider Electric Illuminated selector switch is suitable for standard panel cut outs, and the yellow handle with a grey bezel provides clear visual indication. The switch features a stay put design. The switch is resistant to high pressure washing, making it suitable for use in challenging conditions. The positive opening feature enhances safety, and the specified operating torque ensures efficient and reliable switching.
Mercury free
RoHS compliant
IK05 conforming to IEC 50102
IP66 and IP67 degree of protection
