Siemens Short Black Handle Selector Switch - (SPDT) 22mm Cutout Diameter, Illuminated 2 Positions
- RS Stock No.:
- 181-2853
- Mfr. Part No.:
- 3SU1100-2BF60-3MA0
- Brand:
- Siemens
Subtotal (1 unit)*
£22.86
(exc. VAT)
£27.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 999,999,962 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 181-2853
- Mfr. Part No.:
- 3SU1100-2BF60-3MA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Selector Switch Type | Selector Switch Complete Unit | |
| Number of Positions | 2 | |
| Actuator Type | Short Black Handle | |
| Contact Configuration | SPDT | |
| Angle of Throw | 90° | |
| Maximum Current | 10A | |
| Series | SIRIUS ACT 3SU11 | |
| Cutout Diameter | 22mm | |
| Body Material | Plastic | |
| Terminal Type | Spring | |
| Illuminated | Yes | |
| Colour | Black | |
| Maximum AC Voltage | 500V | |
| Maximum DC Voltage | 500V | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Better World Product | Yes | |
| Switch Actuation | Latching | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Selector Switch Type Selector Switch Complete Unit | ||
Number of Positions 2 | ||
Actuator Type Short Black Handle | ||
Contact Configuration SPDT | ||
Angle of Throw 90° | ||
Maximum Current 10A | ||
Series SIRIUS ACT 3SU11 | ||
Cutout Diameter 22mm | ||
Body Material Plastic | ||
Terminal Type Spring | ||
Illuminated Yes | ||
Colour Black | ||
Maximum AC Voltage 500V | ||
Maximum DC Voltage 500V | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Better World Product Yes | ||
Switch Actuation Latching | ||
- COO (Country of Origin):
- DE

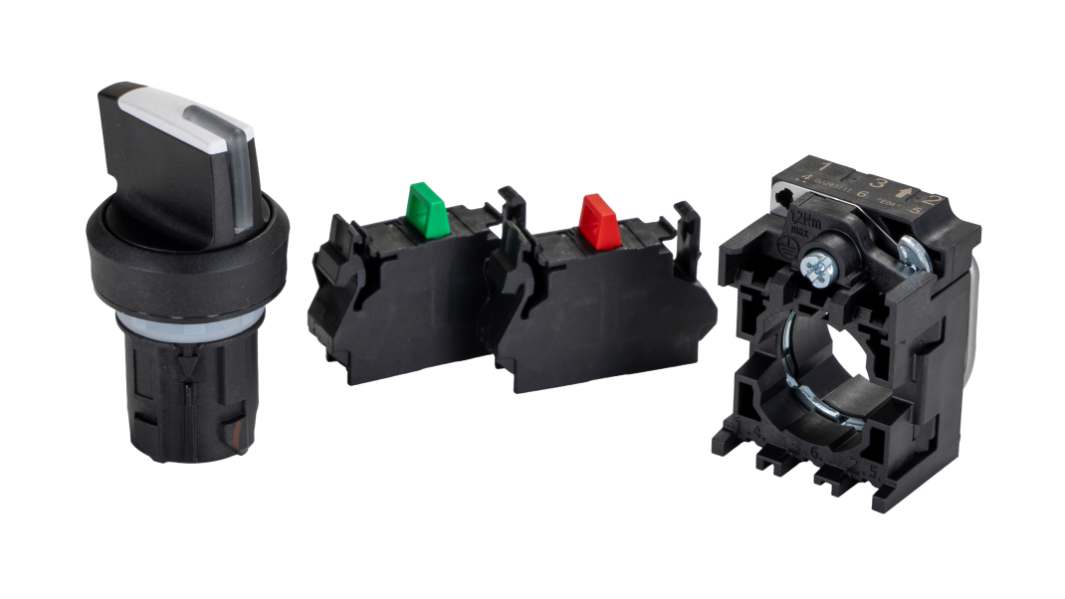

Siemens Selector Switch, 22mm Cutout Diameter, 10A Max Current - 3SU1100-2BF60-3MA0
This illuminated selector switch is designed for controlling electrical circuits with a user-friendly mechanism. It has a short black handle for easy operation, and the durable plastic body measures 22mm. This unit provides reliable switching capabilities, making it suitable for various industrial applications.
Features & Benefits
• Illuminated design improves visibility in low-light conditions
• 90° latching operation ensures stable position control
• Robust plastic construction enhances durability in challenging environments
• SPDT configuration allows for flexible circuit management
• Compatible with spring-loaded terminals for straightforward installation
• Rated for high voltages up to 500V for effective performance
• 90° latching operation ensures stable position control
• Robust plastic construction enhances durability in challenging environments
• SPDT configuration allows for flexible circuit management
• Compatible with spring-loaded terminals for straightforward installation
• Rated for high voltages up to 500V for effective performance
Applications
• Suitable for that require frequent switching
• Can be used in electrical enclosures and panels
• Employed in control circuits for industrial equipment
• Can be used in electrical enclosures and panels
• Employed in control circuits for industrial equipment
Can it withstand extreme temperatures?
Yes, it operates effectively from -25°C to +70°C.
Is it suitable for both AC and DC voltages?
Yes, this switch supports operating voltages of 5V to 500V.
Will it maintain performance in damp conditions?
Yes, it is rated with a protection class of IP66, IP67, and IP69K.
