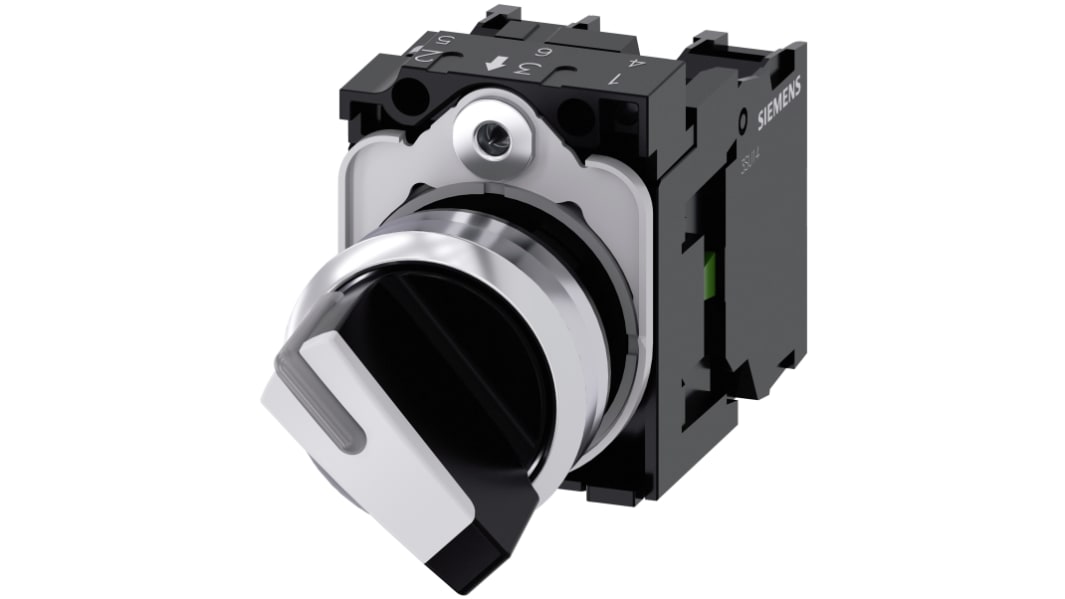

Siemens Short Handle Selector Switch - (SPDT) 22mm Cutout Diameter 2 Positions
- RS Stock No.:
- 135-5653
- Mfr. Part No.:
- 3SU1150-2BF60-1MA0
- Brand:
- Siemens
Subtotal (1 unit)*
£24.77
(exc. VAT)
£29.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.77 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 135-5653
- Mfr. Part No.:
- 3SU1150-2BF60-1MA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Positions | 2 | |
| Selector Switch Type | Selector Switch Complete Unit | |
| Actuator Type | Short Handle | |
| Contact Configuration | SPDT | |
| IP Rating | IP66, IP67, IP69K | |
| Angle of Throw | 90° | |
| Maximum Current | 10A | |
| Series | SIRIUS ACT 3SU11 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 500V | |
| Better World Product | Yes | |
| Maximum DC Voltage | 500V | |
| Switch Actuation | Latching | |
| Better World Claim | Extended product life, Low carbon manufacture | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Positions 2 | ||
Selector Switch Type Selector Switch Complete Unit | ||
Actuator Type Short Handle | ||
Contact Configuration SPDT | ||
IP Rating IP66, IP67, IP69K | ||
Angle of Throw 90° | ||
Maximum Current 10A | ||
Series SIRIUS ACT 3SU11 | ||
Cutout Diameter 22mm | ||
Terminal Type Screw | ||
Maximum AC Voltage 500V | ||
Better World Product Yes | ||
Maximum DC Voltage 500V | ||
Switch Actuation Latching | ||
Better World Claim Extended product life, Low carbon manufacture | ||
- COO (Country of Origin):
- DE
22 mm Selector Switch Complete Units, Metal (Shiny)
Siemens extremely IP69K rugged shiny metal selector switch complete units. On these new models, the electrical module is permanently installed and is only secured by the holder.
Easy installation
Suitable for use in extreme environments
No special tools required
Simple geometry for mounting holes
Connection to the most commonly used communication systems (PROFINET, AS-Interface, IO-Link)
Suitable for use in extreme environments
No special tools required
Simple geometry for mounting holes
Connection to the most commonly used communication systems (PROFINET, AS-Interface, IO-Link)
Standards
IEC 60947-1, EN 60947-1
IEC 60947-5-1, EN 60947-5-1
IEC 60947-5-1, EN 60947-5-1
