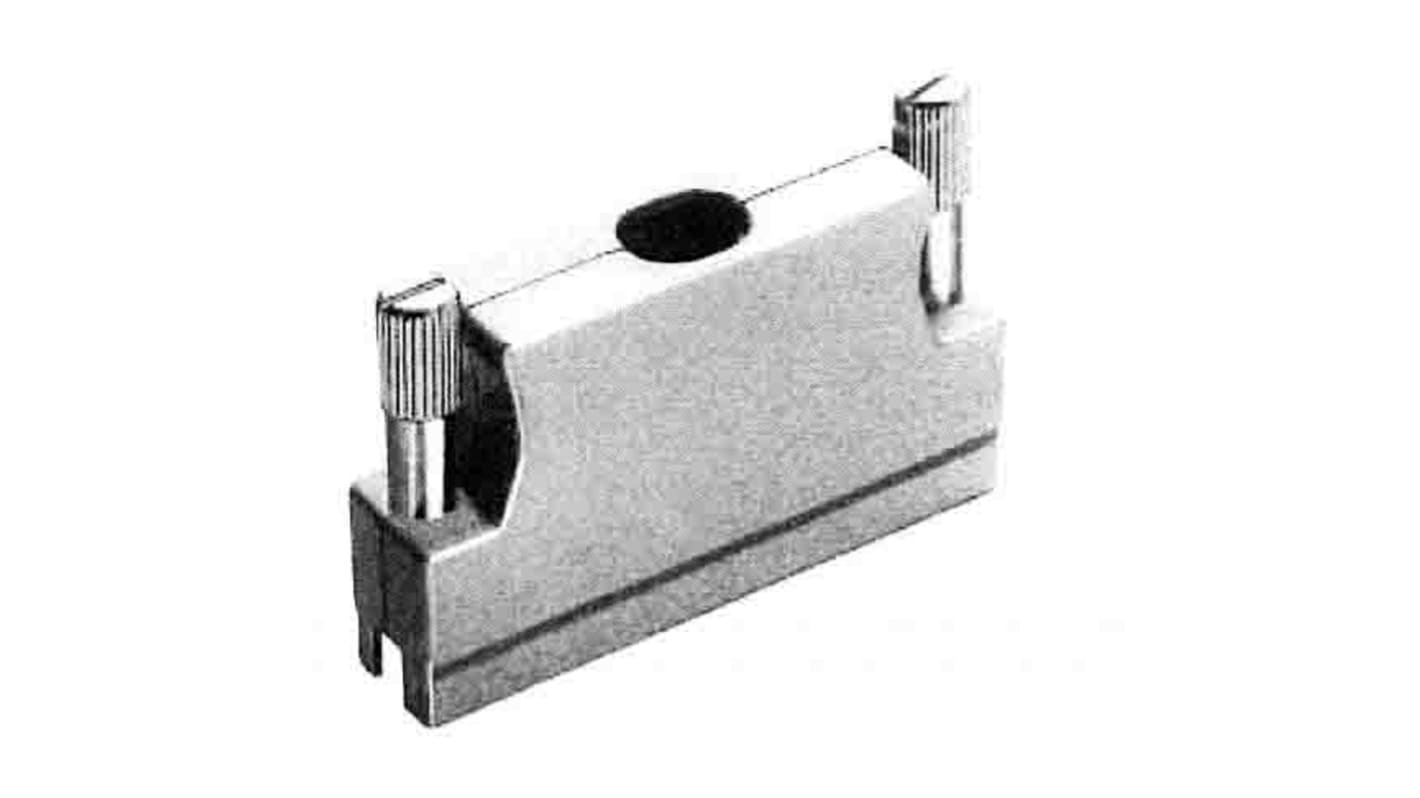

Hirose, DX Male 50 Pin Straight Cable Mount SCSI Connector 1.27mm Pitch, Jack Screw, Screw
- RS Stock No.:
- 162-5722
- Mfr. Part No.:
- DX-50-CV1
- Brand:
- Hirose
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£13.51
(exc. VAT)
£16.21
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £13.51 |
| 10 - 24 | £12.83 |
| 25 - 49 | £11.48 |
| 50 + | £10.79 |
- RS Stock No.:
- 162-5722
- Mfr. Part No.:
- DX-50-CV1
- Brand:
- Hirose
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Hirose original 1.27mm pitch High-Density I/O connectors
1.27mm contact spacing conserves valuable board space and permits ultra-high density designs
Bellow contacts create smooth and precise mating and unmating
Unique shell design assures first make/mast break grounding and overall noise protection
IDC termination allows quick and low cost termination to AWG #28 and #30 wires
Back Shell and receptacle shell are made of diecast zinc alloy to reduce the penetration of external EMI noise
Easy to use 'One-Touch' and 'Screw' locking mechanisms assure quick and easy 'positive' closures every time
Termination method is available in IDC, Soldering, Right Angle Dip, Straight Dip and SMT
DX with 3 cavities and 2 cavities for Co-axial contacts are newly introduced to meet the needs of high speed data transmission
Shielded Plug-in type for interface between 2 Units available
Bellow contacts create smooth and precise mating and unmating
Unique shell design assures first make/mast break grounding and overall noise protection
IDC termination allows quick and low cost termination to AWG #28 and #30 wires
Back Shell and receptacle shell are made of diecast zinc alloy to reduce the penetration of external EMI noise
Easy to use 'One-Touch' and 'Screw' locking mechanisms assure quick and easy 'positive' closures every time
Termination method is available in IDC, Soldering, Right Angle Dip, Straight Dip and SMT
DX with 3 cavities and 2 cavities for Co-axial contacts are newly introduced to meet the needs of high speed data transmission
Shielded Plug-in type for interface between 2 Units available
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Contacts | 50 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Housing Material | PBT |
| Pitch | 1.27mm |
| Current Rating | 500mA |
| Voltage Rating | 125 V ac |
| Latch Type | Screw |
| Termination Method | Jack Screw |
| Series | DX |
| Length | 53.25mm |
| Maximum Operating Temperature | +85°C |
| Depth | 11.5mm |
| Width | 32mm |
| Minimum Operating Temperature | -55°C |
