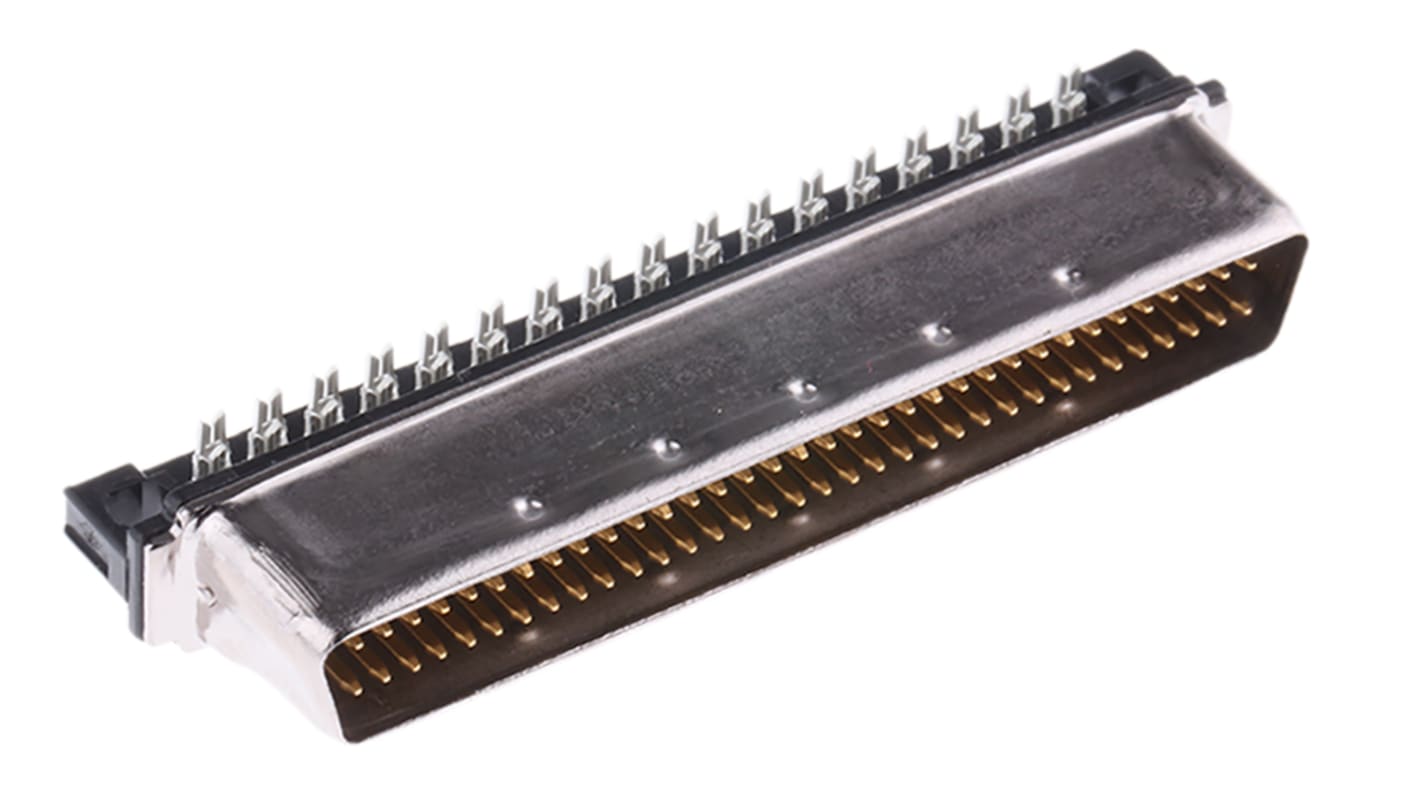

TE Connectivity Male 68 Pin Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT
- RS Stock No.:
- 452-151
- Mfr. Part No.:
- 5749621-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£20.47
(exc. VAT)
£24.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 70 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £20.47 |
25 - 74 | £17.79 |
75 - 199 | £14.72 |
200 - 399 | £13.98 |
400 + | £13.27 |
*price indicative
- RS Stock No.:
- 452-151
- Mfr. Part No.:
- 5749621-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Gender | Male | |
Number of Contacts | 68 | |
Body Orientation | Right Angle | |
Mounting Type | Cable Mount | |
Contact Material | Phosphor Bronze | |
Contact Plating | Gold over Nickel | |
Housing Material | Thermoplastic | |
Pitch | 1.27mm | |
Termination Method | IDT | |
Length | 51.54mm | |
Width | 14.94mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Gender Male | ||
Number of Contacts 68 | ||
Body Orientation Right Angle | ||
Mounting Type Cable Mount | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
Housing Material Thermoplastic | ||
Pitch 1.27mm | ||
Termination Method IDT | ||
Length 51.54mm | ||
Width 14.94mm | ||
The TE Connectivity 2 way, 68 pin, 1.27mm pitch, black plug connector kit without rails has steel shell material and is compatible with round jacketed cable.
Phosphor bronze contact base material
Thermoplastic housing material
Temperature ranges between -55°C to 105°C
Not sealable
Gold contact mating area plating material
Solid wire size: 0.05mm² -0.1 mm²
Cable to board, cable to cable connector system
Connector & contact terminates to : Wire & cable
1A max. contact current rating
Thermoplastic housing material
Temperature ranges between -55°C to 105°C
Not sealable
Gold contact mating area plating material
Solid wire size: 0.05mm² -0.1 mm²
Cable to board, cable to cable connector system
Connector & contact terminates to : Wire & cable
1A max. contact current rating
