Subtotal (1 bag of 50 units)*
£11.14
(exc. VAT)
£13.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 47 unit(s) ready to ship from another location
- Plus 81 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £11.14 | £0.223 |
*price indicative
- RS Stock No.:
- 232-6858
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| For Screw Size | M6 | |
| Inside Diameter | 6.1mm | |
| Body Outside Diameter | 8mm | |
| Body Length | 8mm | |
| Flange Diameter | 12.2mm | |
| Material | Nylon | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
For Screw Size M6 | ||
Inside Diameter 6.1mm | ||
Body Outside Diameter 8mm | ||
Body Length 8mm | ||
Flange Diameter 12.2mm | ||
Material Nylon | ||
- COO (Country of Origin):
- US

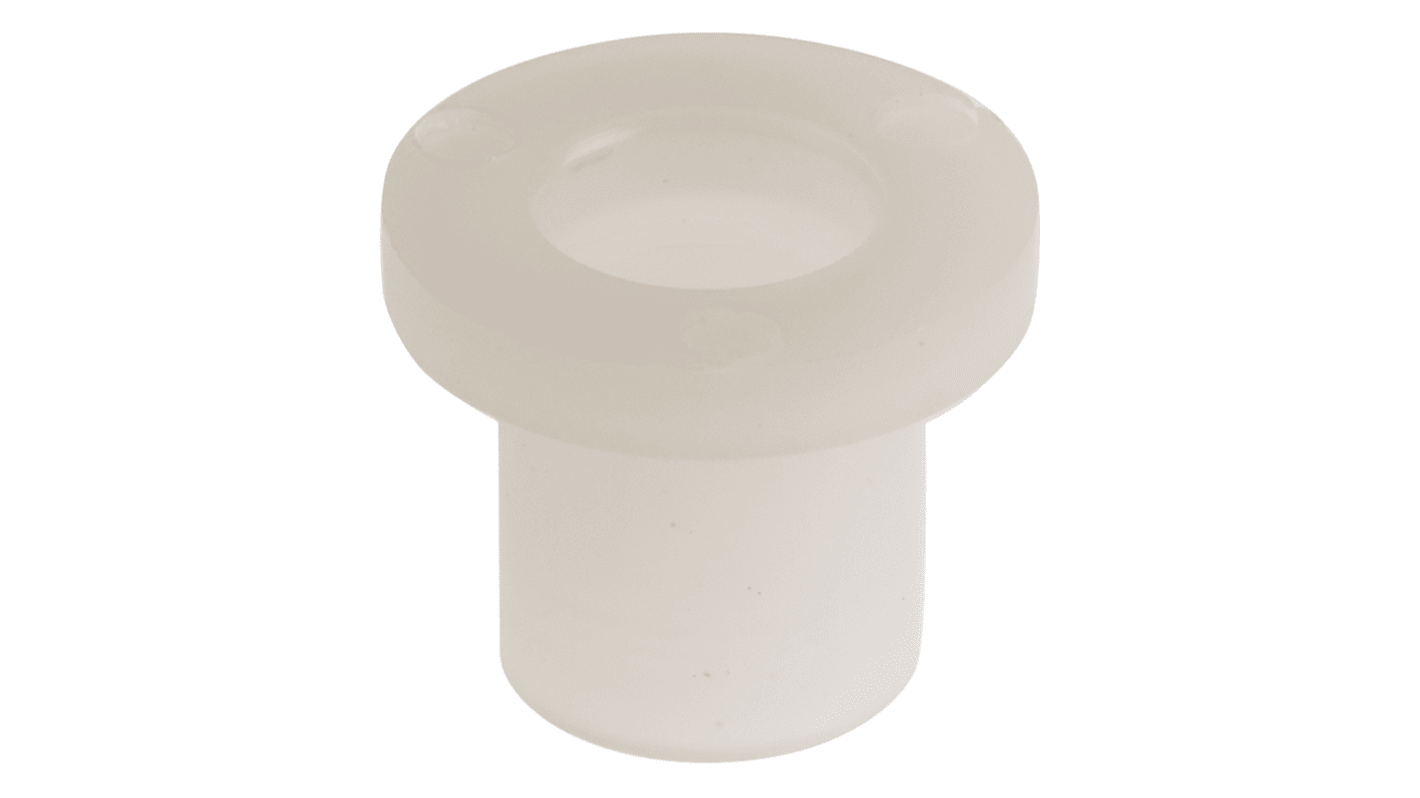

RS PRO Nylon Screw Insulators
RS PRO introduces a fantastic range of screw insulators. Designed for insulating metric machine screws from moisture and electricity these components can also be used as guides and spacers. This range is made from nylon 66 providing strength and wear resistance whilst also giving impact and fatigue resistance. Machine screw insulators are resistant to most chemicals, dirt and moisture they can also be used to seal in some applications. With a wide selection of sizes in this range, we have insulators that suit M2, M3, M4, M5, M6 and M8 size screws, with inside diameters from 2.1 mm to 8.1 mm and body length from 3 mm to 12 mm covering a variety of application uses.
Features and Benefits
- Insulators for metric machine screws
- Provides electrical insulation
- Helps prevent electrolytic corrosion
- Can be used as guides, spacers and light load bearings
- Manufactured from Nylon 66 giving a lightweight component that has high mechanical strength
- Various sizes and dimensions are available please see the datasheet for more information
Applications
Machine screw insulators, also known as shoulder washers, are designed to isolate the metal screws and provide insulation from moisture and electricity. Designed from Nylon 66 these machine screw insulators have good electrical insulating properties whilst also supplying corrosion, impact and wear resistance providing a tough and sturdy component. Due to the mechanical strength of nylon 66, these insulators can also be used as light load bearings. Due to their versatility, these screw insulators can be used both indoors and outdoors. Commonly found in applications such as
Automotive
Electronics
White goods
Construction
HVAC
Automotive
Electronics
White goods
Construction
HVAC
