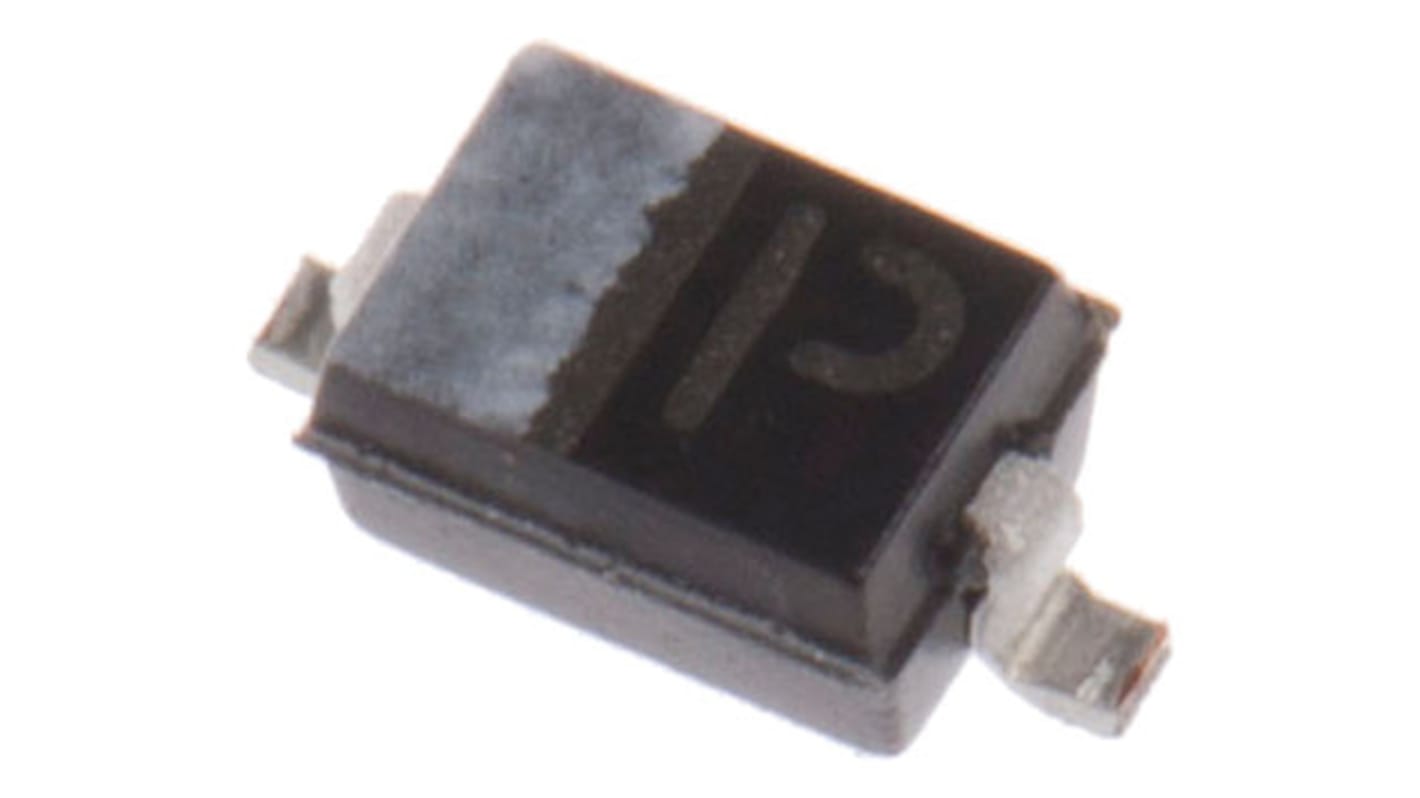

onsemi 30V 500mA, Schottky Diode, 2-Pin SOD-323 NSR0530HT1G
- RS Stock No.:
- 920-9880
- Mfr. Part No.:
- NSR0530HT1G
- Brand:
- onsemi
17000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 250)
£0.046
(exc. VAT)
£0.055
(inc. VAT)
| Units | Per unit | Per Pack* |
| 250 - 750 | £0.046 | £11.50 |
| 1000 - 4750 | £0.035 | £8.75 |
| 5000 - 9750 | £0.023 | £5.75 |
| 10000 + | £0.022 | £5.50 |
| *price indicative | ||
- RS Stock No.:
- 920-9880
- Mfr. Part No.:
- NSR0530HT1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
ON Semiconductor Schottky Barrier Diodes
This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.
• Pb-Free
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package
Standards
Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Continuous Forward Current | 500mA |
| Peak Reverse Repetitive Voltage | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Diode |
| Diode Type | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 620mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky Barrier |
- RS Stock No.:
- 920-9880
- Mfr. Part No.:
- NSR0530HT1G
- Brand:
- onsemi
